Are Mortise Locks Universal?

Views: 0     Author: Site Editor     Publish Time: 17-09-2025      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

If you're upgrading your home's security or restoring a vintage door, you might come across the term "mortise lock." These robust, classic locking mechanisms are known for their strength and durability. A common question that arises during this process is: are mortise locks universal?


The short answer is no. Mortise locks are not universal and cannot be swapped out as easily as their modern cylindrical counterparts. Unlike the standard locks you might find at any big-box hardware store, mortise locks require a specific, deep pocket—or mortise—to be cut into the edge of the door. This complexity means that size, shape, and function can vary significantly from one lock to another.


This guide will explain why mortise locks aren't a one-size-fits-all solution. We'll explore the factors that determine compatibility, what you need to measure before buying a replacement, and how to navigate the process of fitting a new mortise lock to your door.


What is a Mortise Lock?

Before we dive into the specifics of compatibility, let's quickly define what a mortise lock is. A mortise lock is a type of lock that requires a rectangular pocket, or mortise, to be chiseled into the edge of a door. The lockset, which includes the lock body, latch, and bolt mechanism, fits snugly inside this pocket.


These locks combine the latching and locking functions into a single, heavy-duty cartridge. They are often found in older homes, commercial buildings, and high-end residential properties. The main components include:

· Lock Body: The main part of the lock that sits inside the door.

· Lock Trim: The decorative plates, knobs, or levers on either side of the door.

· Strike Plate: The metal plate installed on the door frame that the latch and deadbolt extend into.

· Keyed Cylinder: The part where you insert the key to lock or unlock the door.


The integrated design and robust construction make mortise locks a highly secure option. However, this same design is what makes them far from universal.


Why Mortise Locks Are Not Universal

Several key factors prevent mortise locks from being a simple, interchangeable product. If you're looking to replace an existing lock or install a new one, you must consider the specific dimensions and functions of both the door and the lock itself.


The Mortise Pocket is Unique

The primary reason mortise locks lack universality is the pocket they inhabit. The dimensions of this mortise—its height, depth, and thickness—are cut specifically for the lock body it was intended to hold.

· Height and Depth: A new lock body must match the existing pocket's height and depth. If the new lock is too small, it will shift around inside the pocket, compromising security and function. If it's too large, it simply won't fit without further woodworking, which can weaken the door's structural integrity.

· Thickness: The lock body's thickness must correspond with the door's thickness. A lock designed for a thick, solid-wood commercial door will not fit into a standard, thinner residential door.


Backset Varies Significantly

The "backset" is a critical measurement in any lock installation. It refers to the distance from the edge of the door to the center of the keyhole or knob hub.


While modern cylindrical locks often come with a standard adjustable backset (typically 2 3/8" or 2 3/4"), mortise locks have a wide range of fixed backsets. Common vintage backsets can include 2 1/2", 2 5/8", or 2 3/4", but many other non-standard measurements exist. A mismatch in backset means the new lock's knobs and keyhole will not align with the existing holes drilled through the face of the door.


Different Lock Functions

Mortise locks are not just for entry doors. They are designed with various functions tailored to different applications, and these functions are not interchangeable.

· Entry Mortise Lock: Features a latch operated by a knob/lever and a deadbolt operated by a key from the outside and a thumbturn from the inside.

· Passage Mortise Lock: Only has a latch, operated by a knob or lever on both sides. It does not lock. This is used for interior doors like hallways or closets.

· Privacy Mortise Lock: Similar to a passage lock but includes a locking mechanism (like a thumbturn) for privacy. It's commonly used for bedrooms and bathrooms.

· Classroom Mortise Lock: The outside lever can be locked or unlocked with a key, while the inside lever always allows for egress.

· Storeroom Mortise Lock: The outside knob/lever is always locked, requiring a key for entry every time. The inside lever is always unlocked.


Trying to install a passage lock where an entry lock is needed, for example, would leave your front door unsecured.


Trim and Spacing Dimensions

The "trim" refers to the handles, knobs, levers, and escutcheon plates. The placement of these components is also not standardized.

· Center-to-Center Spacing: This is the distance between the center of the knob hub and the center of the keyhole or thumbturn. This measurement can vary greatly between different mortise lock models. If the spacing on a new lock doesn't match the old one, the new trim will not align with the existing holes in your door.

· Screw Hole Placement: The screws that hold the escutcheon plates in place are also not in a universal location. A new plate might not cover the old screw holes, leaving unsightly marks or requiring you to drill new holes.

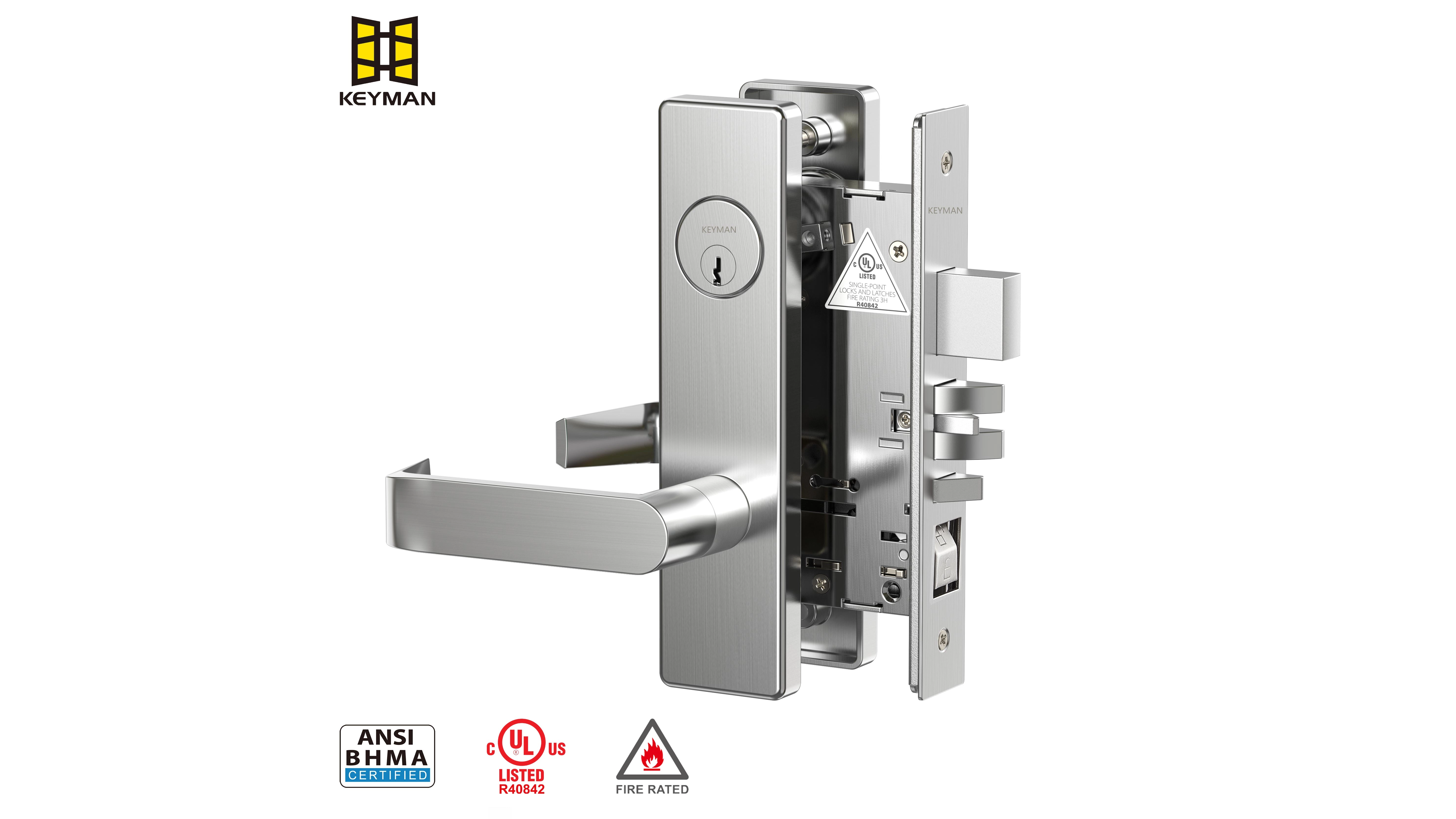

Mortise Locks


How to Find a Compatible Replacement Mortise Lock

Since mortise locks are not universal, replacing one requires some careful detective work. You will need to take precise measurements of your existing lock and door preparation.


Step 1: Remove and Measure the Existing Lock

Carefully remove the trim and then the lock body from the door. Once it's out, grab a tape measure and record the following essential dimensions:

1.Lock Body Height: Measure from the top to the bottom of the lock body.

2.Lock Body Depth: Measure from the faceplate to the back of the lock body.

3.Lock Body Thickness: Measure the thickness of the main case.

4.Backset: Measure from the front of the faceplate to the center of the keyhole cylinder.

5.Center-to-Center Spacing: Measure the distance from the center of the knob hub to the center of the key cylinder.

6.Faceplate Dimensions: Measure the height and width of the faceplate that is visible on the door's edge.


Step 2: Document Everything

Take clear photos of the lock body from all angles. Note any manufacturer's marks, logos, or part numbers. Older locks often have the brand name stamped on the faceplate (e.g., Corbin, Russell & Erwin, Yale, Sargent). This information is invaluable when searching for a replacement.


Step 3: Search for a Match

With your measurements and photos in hand, you can begin your search.

· Architectural Salvage Yards: These are great places to find vintage hardware that might match your existing lock.

· Specialty Locksmiths: A locksmith specializing in older or commercial hardware can be an excellent resource. They can often identify your lock and source a replacement or repair the existing one.

· Online Suppliers: Websites that specialize in antique and reproduction hardware often have a wide selection of mortise locks. You can use your measurements to filter search results.


If you can't find an exact match, look for a "retrofit" or "replacement" mortise lock kit. Some manufacturers produce modern locks designed to fit common older mortise preparations, but you'll still need to match the key dimensions closely.


When to Call a Professional

Installing or replacing a mortise lock is often not a simple DIY project. The need for precise woodworking and a deep understanding of lock mechanics means it's usually best to call a professional locksmith, especially in these situations:

· You're installing a new mortise lock in a door that has never had one. Cutting a new mortise requires specialized tools like a mortising jig and a lot of skill to avoid damaging the door.

· The new lock doesn't quite fit. A locksmith can make the necessary adjustments to the door or lock to ensure a secure and functional fit.

· You want to upgrade your security. A professional can recommend a modern high-security mortise lock that fits your existing door preparation.


Your Next Steps for Door Hardware

Mortise locks are a testament to durable, long-lasting craftsmanship, but their unique nature means they are not universal. Each lock is part of a system specific to the door it was made for, with unique dimensions for the lock body, backset, and trim spacing. Replacing one requires careful measurement and a bit of research to find a compatible fit.


While the process is more complex than swapping out a modern doorknob, the result is a secure and elegant locking solution that preserves the character of your home. If you're undertaking this project, take your time, measure twice, and don't hesitate to consult a professional locksmith for guidance.
