Installing a mortise lock is a classic and secure method for doors, often found in both traditional and modern homes. Unlike cylindrical locksets, mortise locks require a precise, rectangular pocket—or mortise—to be cut into the door edge. This task can seem daunting, but with the right tools and careful measurement, it is an achievable DIY project. This comprehensive guide will walk you through the entire process of how to cut a hole for a mortise lock correctly and safely.

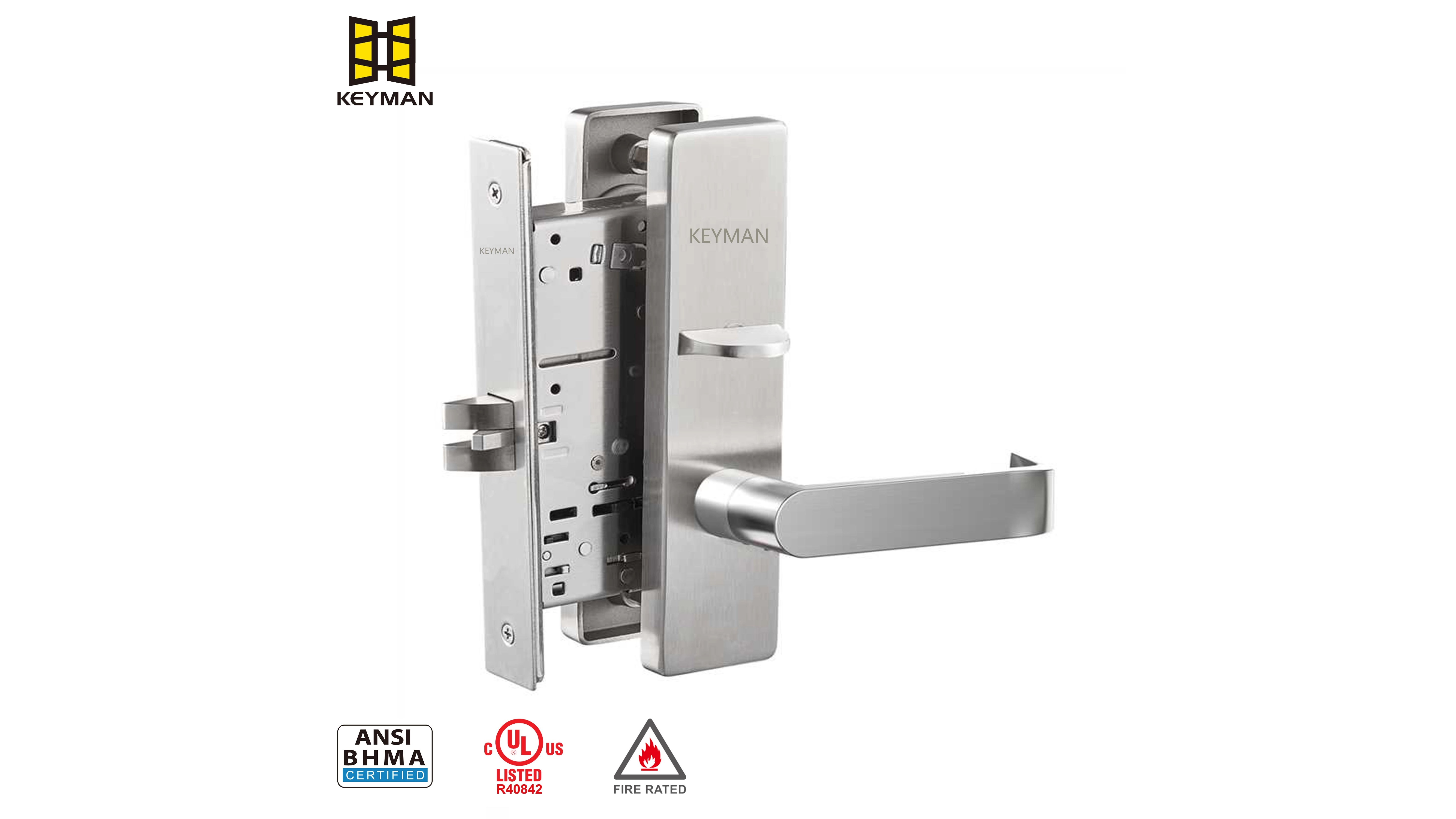

Before you make the first cut, it's crucial to understand what you're working with. A mortise lock is a robust locking mechanism where a lock body is housed within a deep pocket (the mortise) in the door's edge. It operates a latch and a deadbolt with a single mechanism, offering superior strength and security compared to standard bore locks. The installation involves three main cuts: the mortise pocket in the door edge, the cross-bore for the lock cylinder and spindle, and the faceplate recess.
Gathering the correct tools is half the battle. Using the right equipment will ensure a clean, professional-looking installation.
· Mortise Lock Template: This is the most critical item. Most new mortise locks come with a paper or metal template. If yours didn't, you can often find one online from the manufacturer.
· Tape Measure and Pencil: For precise marking.
· Sharp Wood Chisels ( various sizes, preferably 1/2" and 1"): For cleaning out the mortise and recessing the faceplate.
· Mallet (wooden or rubber): Used with the chisels.
· Power Drill and Drill Bits: Including a spade bit or a large auger bit (often 1" to 1-1/2") for the cross-bore, and a smaller drill bit for pilot holes.
· Sharp Utility Knife: For scoring outline marks.
· Hammer
· Combination Square: To ensure your markings are straight and square.
· Safety Glasses and Gloves: Always prioritize safety.
Begin by determining the backset—the distance from the center of the cross-bore to the edge of the door. The standard backsets are 2-1/2" or 2-3/4". Confirm this measurement with your specific lock's instructions.
1.Mark the Height: Hold the template securely on the edge of the door. Use your combination square to mark a horizontal line across the door's edge at the height specified for the center of the lock body. This is typically around 36 inches from the bottom of the door but always confirm based on your lock and handle set.
2.Transfer the Template: Carefully align the template on the door's edge, ensuring the center mark for the mortise is exactly on your horizontal line. Tape the template firmly in place. Use a sharp utility knife to score through the template onto the wood, outlining the mortise pocket and the faceplate. This scoring technique prevents the wood from splintering when you chisel later.
The cross-bore is the large hole through the face of the door for the lock cylinder and the handle spindle.
1.Mark the Center: The template will indicate the center point for this hole on both sides of the door.
2.Drill Carefully: Using the appropriate-sized spade or auger bit, drill a hole straight through the door from one side. To prevent tear-out on the opposite side, drill until the tip of the bit just breaks through, then finish drilling from the other side towards the center.
This is the most intensive part of the process.
1.Drill Pilot Holes: Inside the scored mortise outline on the door's edge, drill a series of closely spaced pilot holes. Use a drill bit that is slightly smaller than the width of your chisel. Drill deep enough, but not deeper than the required depth of the mortise (check your lock's specifications).
2.Chisel Out the Waste: Place your sharp chisel vertically inside the scored outline, with the beveled side facing the waste wood. Tap firmly with a mallet to deepen the outline. Then, use the chisel to remove the wood from between the pilot holes. Work slowly, taking small bites and frequently checking the depth. A combination square can help you gauge the correct depth.
The faceplate must sit flush with the door's edge.
1.Deepen the Score Lines: Go over the scored lines for the faceplate with your utility knife again.
2.Chisel the Recess: Using a chisel that matches the width of the faceplate, carefully chisel within the scored lines to the depth of the faceplate's thickness. Take your time here for a clean, snug fit.
1.Dry Fit the Lock: Insert the mortise lock body into the pocket without securing it. It should slide in smoothly and sit flush. The spindle and cylinder should pass easily through the cross-bore.
2.Make Minor Adjustments: If the lock doesn't fit perfectly, note where it's tight and carefully remove more material with your chisel.
3.Secure the Lock: Once it fits perfectly, secure the lock body in the mortise with the provided screws. Install the lock cylinder, handles, and strike plate on the door frame.
· Sharp Tools are Key: A sharp chisel is safer and provides a cleaner cut than a dull one. It requires less force and is less likely to slip.
· Patience is a Virtue: Never rush the chiseling process. Removing small amounts of wood at a time ensures you won't accidentally take off too much.
· Practice on Scrap Wood: If you are new to chiseling, practice making a mortise on a piece of scrap wood first.
By following these detailed steps, you can successfully cut a clean, precise hole for a mortise lock, significantly enhancing your door's security and aesthetic appeal. This project not only improves your home but also provides immense DIY satisfaction.
