X100 Series Push Bar

The EN 1125 push bar, commonly known as a panic exit device, is a critical safety mechanism for emergency doors. Its defining feature is a wide, horizontal bar that spans the door leaf. In an emergency, occupants can open the door instantly and intuitively by simply applying body pressure to the bar, triggering the internal mechanism to release the lock. This "push-to-open" design ensures rapid and panic-free evacuation. Compliance with the EN 1125 standard guarantees the device meets rigorous requirements for strength, durability, and reliability, making it an essential safeguard for public safety in buildings.



Product Category

All Products

  • Modular System
    ● 1/2/3/4/5 Lock points
    Standard Doors
    (single-leaf/double-leaf)
    ● yes
    Fire Rate
    ● yes
    Glass Door
    ● yes
    Door Width
    ● ≤1000mm:1/2/3/4/5 lock points
    ● ≤1300mm:1/2/3/4/5 lock points
    Door Height
    ● ≤2100mm:1/2/3/4/5 lock points
    ● ≤2270mm:2/3/4/5 lock points
    ● ≤3400mm:2/3/4/5 lock points
    Max. Door Leaf Weight in kg
    ● 200 KG
    Non-handed Design
    ● Device non-handed, Trim field reversible.
    Dogging Device
       -
    Security Anti-thrust Latch
    ● yes
    Trim
    ● The device & trim are sold separately, easy to mix and match.
  • EN 1125 Panic Exit Device Series Modulars

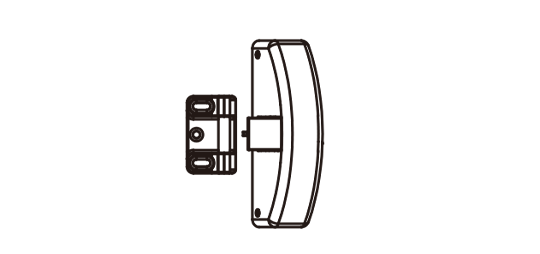

    CB
    (Cross Bar)

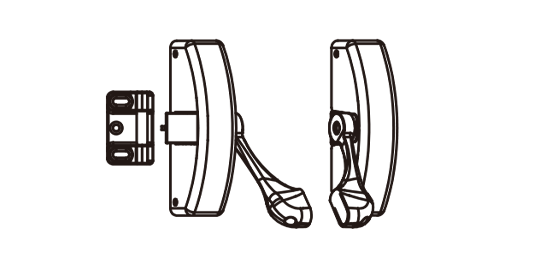

    CBML
    (Cross Bar Main Latch)

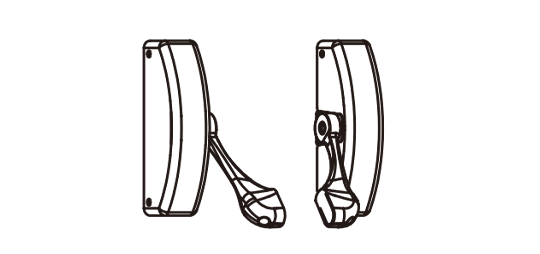

    SL
    (Side Latch)
    T
    (Top Latch)
    B
    (Bolt)

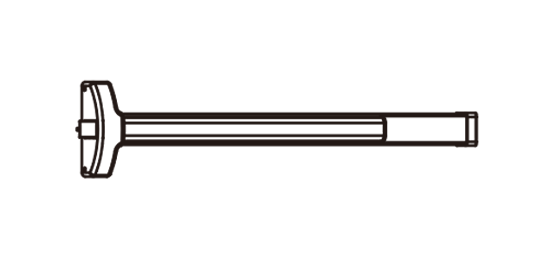

    PB
    (Push Bar)
    PBML
    (Push Bar Main Latch)

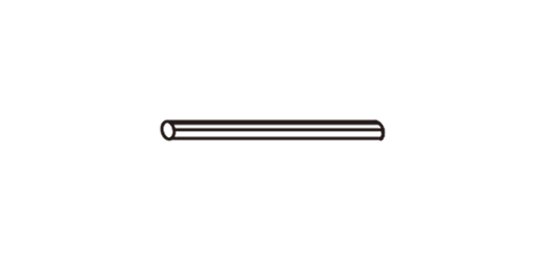

    Pull Rod +
    Cover
    Bar Latch Keeper
    for Double Door
