Quick answer:
The SS304 stainless steel manual flush bolt with 12" rod provides superior security for the inactive leaf of double metal doors. The 12-inch rod ensures deep frame engagement, while the corrosion-resistant SS304 material guarantees long-term durability in high-traffic commercial environments.
Double doors in commercial buildings require reliable hardware to maintain strict security and fire safety standards. Facility managers often struggle to find locking mechanisms that withstand heavy daily use without bending, jamming, or corroding. When securing large entryways, selecting the right door hardware directly impacts the safety of the entire building.

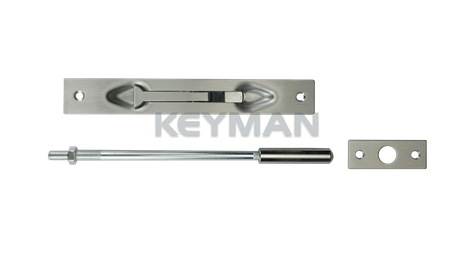

The QK8010 manual flush bolt offers a robust, heavy-duty solution specifically engineered for securing the inactive leaf of double steel doors. This hardware configuration relies on premium materials and exact dimensions to keep doors firmly anchored to the floor and the top frame. Without a durable flush bolt, the inactive door remains vulnerable to forced entry or wind damage.
In this comprehensive guide, we will explore why the stainless steel manual flush bolt with 12" rod is the industry standard for hollow metal doors. We will examine the specific dimensions that make the QK8010 model so effective, explain how the ergonomic design benefits daily operations, and highlight the exact decision criteria for installing a top and bottom stainless steel flush bolt pair 12" rod.
Table of Contents
Commercial environments expose door hardware to constant stress, friction, and environmental wear. The QK8010 manual flush bolt overcomes these challenges through precise engineering and high-quality materials.
The length of the connecting rod determines how securely the bolt engages with the door frame or floor strike. A 12-inch rod provides sufficient length to reach deep into the header and threshold, ensuring the inactive leaf remains completely immobilized when locked.
The QK8010 model features a bolt throw of 5/8 inch (16mm) and a bolt diameter of 1/2 inch (12.7mm). These dimensions guarantee a tight fit within the strike plate. Furthermore, the plunger features a milled side surface that engages with a matching guide. This specific design prevents the bolt from rotating and loosening over time, which is a common failure point in lower-quality hardware.
Hardware placed on exterior commercial doors must resist rust and degradation. SS304 stainless steel offers exceptional corrosion resistance, making it the ideal material for the flush bolt body.
The QK8010 manual flush bolt combines a heavy-duty SS304 faceplate (measuring 6-3/4 inches by 1 inch) with chromium-plated brass internal components. This combination of materials ensures the internal mechanism glides smoothly without rusting, while the exterior faceplate maintains a clean, professional appearance even after years of use.
Securing a double metal door requires careful consideration of the door's height and the building's security requirements.
Choose a top and bottom stainless steel flush bolt pair 12" rod if you manage hollow metal doors that measure up to 48 inches wide by 96 inches tall. Using a pair of flush bolts—one installed at the top header and one at the bottom threshold—distributes the physical stress evenly across the inactive leaf.
If your commercial doors experience high wind loads or if the building requires maximum security against forced entry, the dual-point locking provided by a top and bottom pair is essential. Conversely, relying on a single top bolt leaves the bottom of the door vulnerable to warping and physical leverage.
Ease of use is just as important as physical security. The QK8010 manual flush bolt features a spring-loaded snap-action lever that makes operation incredibly straightforward for building staff.
To open the inactive door, the user simply opens the active door and flips the ergonomic finger-grip lever to the "UP" position. This action smoothly retracts the 12-inch rod. To lock the closed inactive door, the user flips the lever to the "DOWN" position, allowing the 1/2-inch bolt to project securely into the strike. The ergonomic design requires minimal force, ensuring effortless operation and simple installation for maintenance teams.
The QK8010 manual flush bolt is designed specifically for steel hollow metal doors. However, the hardware can also be used effectively with solid wood doors or composite doors that match the maximum door size of 48 inches by 96 inches.
The QK8010 manual flush bolt is completely non-handed. This means the hardware can be installed on either the left-hand or right-hand inactive leaf of a double door without requiring any modifications to the internal mechanism.
Maintenance teams should inspect the manual flush bolt bi-annually. Clear any debris from the bottom floor strike to ensure the 12-inch rod can fully extend. Wipe down the SS304 stainless steel faceplate with a damp cloth, and apply a small amount of dry graphite lubricant to the spring-loaded lever if the action becomes stiff.
The faceplate of the QK8010 manual flush bolt measures exactly 6-3/4 inches in height and 1 inch in width (171mm x 25.4mm). These standard dimensions allow the hardware to fit seamlessly into standard hollow metal door preparations.
You can contact us any way that is convenient for you. We are available 24/7 via email.
You can also use a quick contact form below or visit our office personally.
Securing your commercial facility starts with installing dependable, high-quality door hardware. The QK8010 manual flush bolt delivers the perfect combination of SS304 durability, exact engineering, and effortless operation. By utilizing the 12-inch rod design and milled plunger mechanics, facility managers can eliminate the risks associated with loose or rotating door bolts.
Assess your current double steel doors to determine if your inactive leaves require upgraded locking mechanisms. If you are ready to enhance your building's security, contact your local hardware supplier or view the Keyman Lock product catalog to source the proper heavy-duty flush bolts for your specific entryways.
