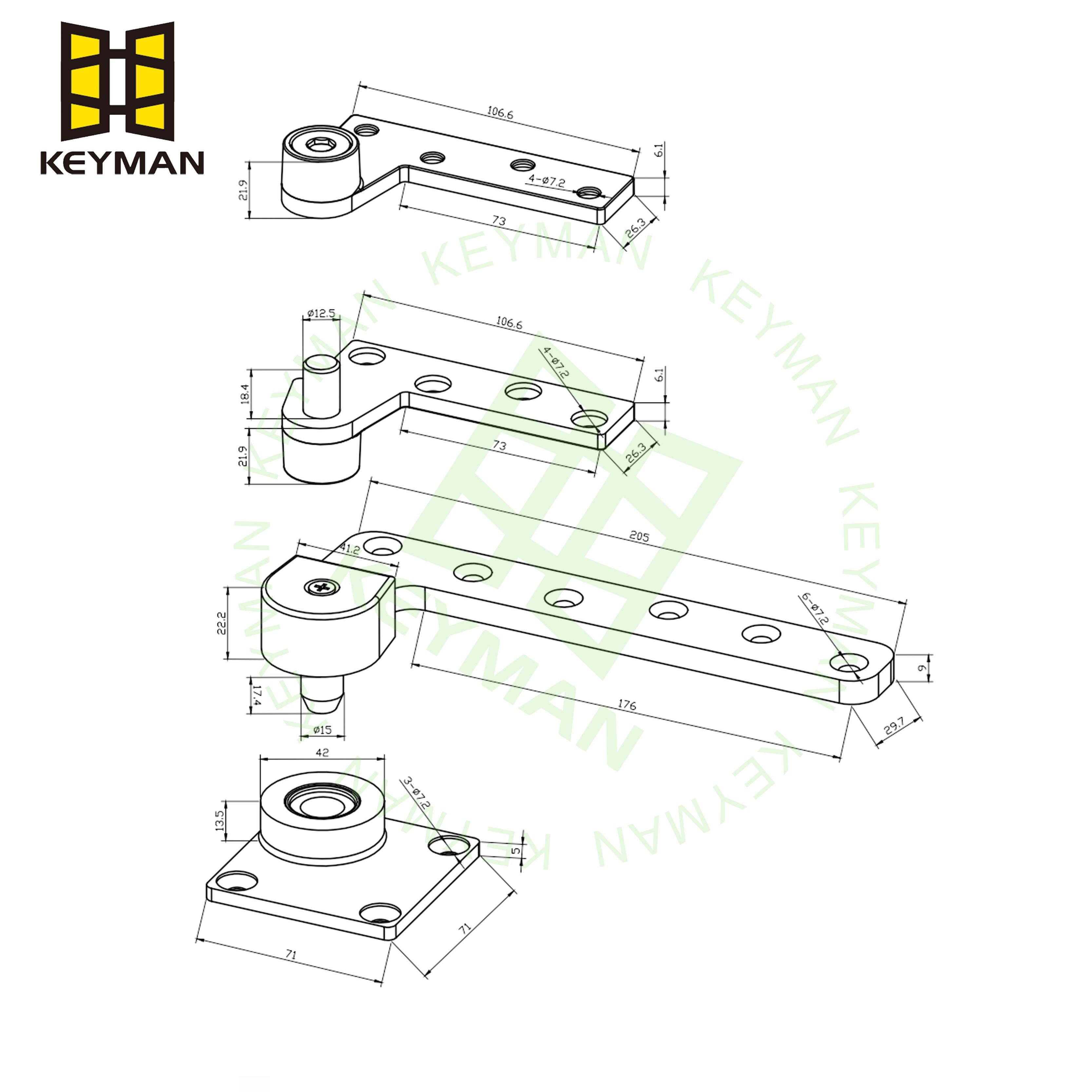

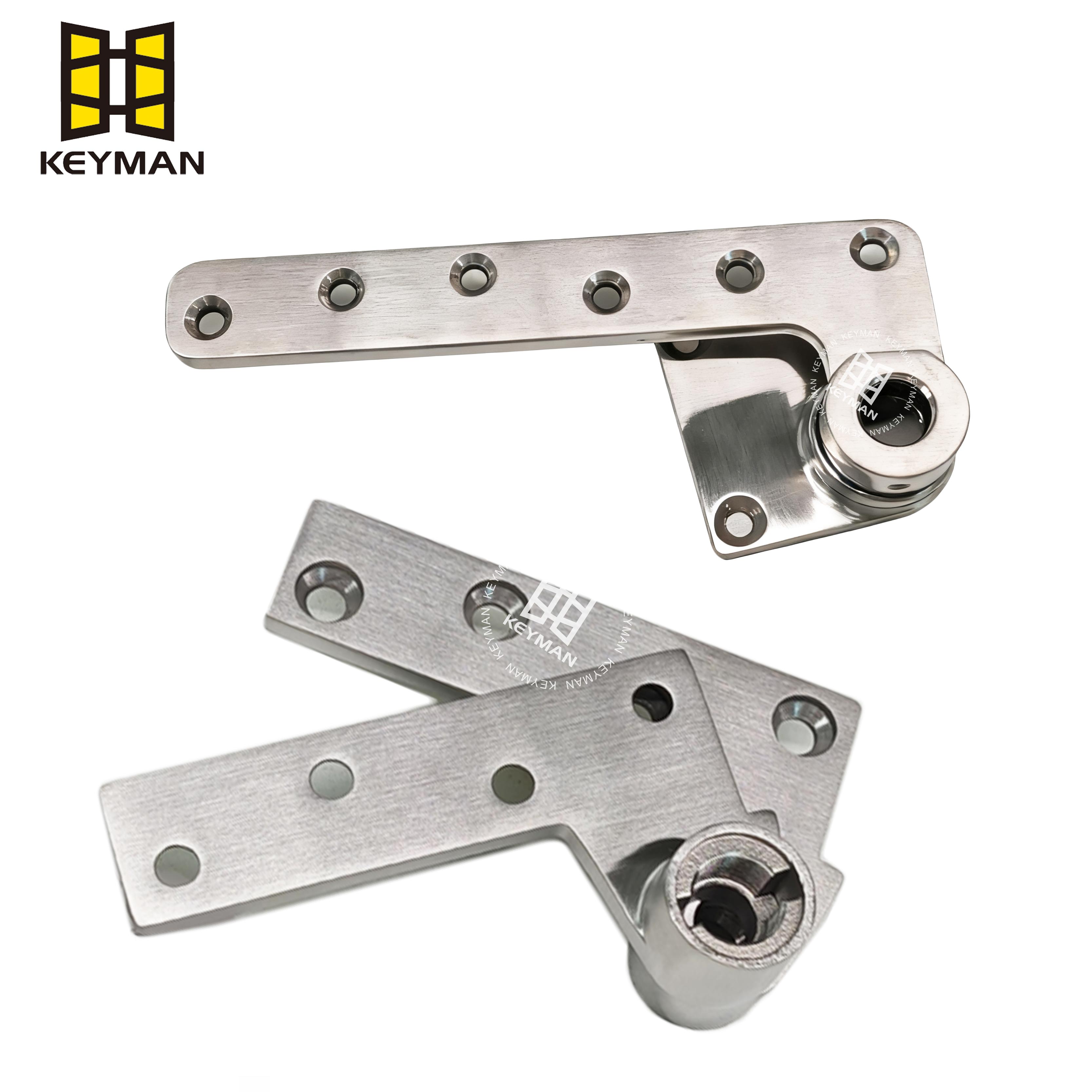

Stainless Steel 304 Commercial Door Offset Top and Bottom Pivot Hinge Set

3/4" Offset pivot, 600lb with top header mount and bottom base mount
-Maximum door load 600 pounds
-Recommended for use with 1 3/4" minimum door
thickness, with l8" bevel in 2"
-Vertical adjustment range 3/16", with positive locking
-Non-handed
-KPH10 Set (KPH10 Top and KPH10 Btm)
-KPH10 TOD(KPH6011-KPH6012 Top), header mount
-KPH10 Btm(KPH6001 Btm), base mount
