A non-removable pin (NRP) hinge is a tamper-proof door hinge designed to prevent the hinge pin from being extracted from the outside, making it impossible to remove the door by pulling the pin — even when the door is unlocked or the hinge is exposed. NRP hinges are the standard security requirement for exterior commercial doors and any entry point where forced removal of the door panel poses a risk.
This guide explains what NRP hinges are, how they work, where they are required, and how they compare to standard hinges — including which Keyman UL-listed hinge models offer the NRP option.
An NRP hinge — also called a non-rising pin hinge or tamper-proof hinge — is a hinge in which the pin is mechanically fixed so it cannot be withdrawn from the barrel. On a standard hinge, the pin can be tapped upward and removed with basic tools. On an NRP hinge, a set screw, interference fit, or integrated locking mechanism prevents pin extraction regardless of the force applied from the outside.
NRP hinges are a standard configuration for exterior commercial doors in the United States and are commonly specified under ANSI/BHMA hardware standards for door security hardware.
Exterior commercial doors require NRP hinges to prevent a specific forced-entry technique: hinge pin removal. On doors where hinges are exposed on the public side, an intruder can — without picking a lock or breaking glass — simply extract the hinge pins and lift the entire door panel out of the frame. This bypasses every lock on the door entirely.
NRP hinges eliminate this vulnerability by ensuring the pin cannot be removed from the outside. This makes the security hinge for commercial doors an essential, not optional, component of any complete access control strategy.
Key scenarios where this matters:
Exterior doors that swing outward (hinges face the outside)
Doors in public corridors where hinges are accessible to foot traffic
High-traffic commercial entry points with after-hours security requirements
Any door where the lock side alone is insufficient to prevent forced entry
An NRP hinge uses one of several mechanical methods to fix the pin in place:
Set screw locking: A small screw threaded through the hinge barrel clamps the pin and prevents upward movement.
Staked or crimped pin: The pin tip is deformed after installation, making withdrawal physically impossible without destroying the hinge.
Captive pin design: The pin is fully enclosed within the barrel and has no exposed head to grip or strike.
In all configurations, the pin remains functional — the door opens and closes normally — but cannot be extracted from the hinge side, regardless of whether tools are used from the exterior.
NRP hinges — also described as tamper-proof hinges or security hinges for commercial doors — are required or strongly recommended in the following applications:
Exterior commercial doors: Any outswing door where hinge knuckles face the exterior
High-security access points: Server rooms, data centers, pharmaceutical storage, and restricted areas
Rooms storing valuables: Cash rooms, equipment storage, and inventory areas in commercial facilities
Government and institutional buildings: Schools, courthouses, and healthcare facilities with strict access control requirements
Fire-rated door assemblies: Many UL-listed fire door assemblies specify NRP hinges as part of the rated assembly
Building codes and security consultants commonly specify NRP hinges in conjunction with ANSI Grade 1 mortise locks and panic exit hardware for complete exterior door security.
Feature | Standard Hinge | NRP (Non-Removable Pin) Hinge |
|---|---|---|
Pin removable from outside | Yes | No |
Forced door removal risk | High (if hinge exposed) | Eliminated |
Suitable for exterior doors | Not recommended | Yes — standard specification |
Price premium | Baseline | Minimal (typically 5–15% over standard) |
Installation complexity | Simple | Same as standard hinge |
Available in UL-listed versions | Yes | Yes |
Decision guide: Standard hinges are better suited for interior doors in low-risk environments where hinges are not accessible to the public. NRP hinges are the correct choice for any exterior door, outswing configuration, or installation where the hinge barrel is visible or reachable from an unsecured area.
The cost difference between a standard hinge and an NRP hinge is minimal — typically a small per-unit premium — making NRP the default specification for exterior commercial applications without meaningful budget impact.

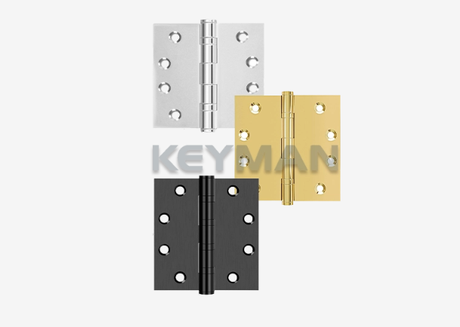

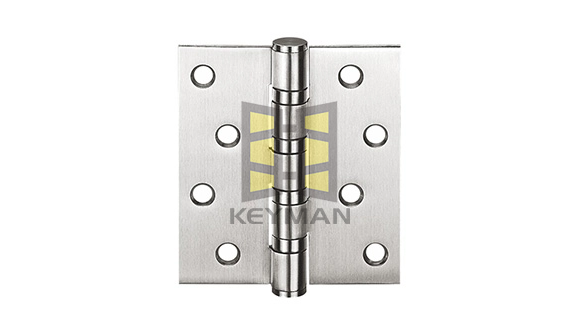

Keyman's UL-listed hinge range includes the NRP configuration as a standard available option. Keyman's UL hinges are manufactured to ANSI/BHMA standards and are designed for commercial door assemblies requiring certified, tamper-resistant hardware.
When specifying Keyman NRP hinges, look for:
UL listing confirmation for fire-rated door compatibility
NRP designation in the product code or configuration options
Appropriate size and weight rating for the door leaf
For specific model details and NRP configuration availability across Keyman's hinge lineup, visit the Keyman UL Hinges product page or contact the Keyman team directly for specification support.
Q: Can an NRP hinge be used on a fire-rated door assembly?
Yes. NRP hinges are compatible with UL-listed fire-rated door assemblies. In fact, many fire-rated assemblies require NRP hinges as part of the certified configuration. Always confirm that the specific hinge model carries the appropriate UL listing for the fire rating required.
Q: Does an NRP hinge affect how the door operates day-to-day?
No. An NRP hinge functions identically to a standard hinge during normal use. The door opens and closes freely. The only difference is that the pin cannot be withdrawn from the hinge barrel, which is imperceptible during routine operation.
Q: Is an NRP hinge enough on its own to secure an exterior commercial door?
No. An NRP hinge eliminates one specific forced-entry vulnerability — hinge pin removal — but should always be used as part of a complete door hardware specification. A full exterior commercial door assembly typically includes an ANSI Grade 1 mortise lock, a panic exit device (where required), and an NRP-equipped hinge set working together.
Q: How do I identify whether an existing hinge is NRP or standard?
On a standard hinge, the top of the pin is visible and can be tapped upward with a nail set and hammer. On an NRP hinge, either no pin head is visible, or the pin will not move under upward force. If there is any doubt, the hinge should be replaced before the door is placed in exterior service.
