Fire-rated hinges are a mandatory component of code-compliant fire door assemblies in commercial construction. Under NFPA 80-2022 and UL 10C, hinges used on fire-rated doors must meet specific performance, material, and labeling requirements that vary by fire resistance rating. This guide covers everything architects and contractors need to know — from code references and hinge type requirements to UL labeling rules and a practical compliance checklist.
Fire-rated hinges are door hardware components tested and listed to withstand the heat, pressure, and duration of a fire event without failing structurally. Unlike standard residential hinges, fire-rated hinges for commercial building fire door hardware must maintain door alignment and prevent gap formation throughout the duration of the rated fire test.
Fire-rated hinges are not simply "heavy-duty" hinges — they are specifically tested as part of a complete fire door assembly. A hinge that is not listed for fire use can cause an otherwise compliant door assembly to fail inspection.
Direct answer: NFPA 80-2022, Section 6.4.3, requires that hinges used on fire door assemblies be listed and labeled for fire-rated use, except where the standard specifically provides an exemption for certain hinge types (e.g., standard butt hinges meeting dimensional and material criteria).
NFPA 80 is the primary U.S. standard governing the installation and maintenance of fire doors, fire windows, and related assemblies. The 2022 edition (currently enforced in most jurisdictions through adoption cycles) establishes the following key requirements for fire door hinges:
Listing requirement: Hinges must be listed by a recognized testing laboratory (such as UL) for the fire resistance rating of the door assembly.
Quantity: A minimum of three hinges is required per fire door leaf, with additional hinges required for taller or heavier doors.
Material: Hinges must be steel or other materials demonstrated to maintain structural integrity under fire conditions.
Fastening: Hinges must be properly secured to both the door and frame using the correct fastener type and count as specified in the listing.
Maintenance: Per Section 5.2, hinges must be inspected annually and must operate freely without binding, sagging, or missing fasteners.
Note for contractors: Substituting an unlisted hinge — even one of identical dimensions — can void the fire rating of the entire door assembly. Always verify the listing before installation.
Direct answer: UL 10C is the Underwriters Laboratories standard for Positive Pressure Fire Tests of Door Assemblies. It simulates real-fire conditions — including smoke pressure buildup — and is the most demanding fire door test standard applied in North America.
UL 10C replaced the older neutral-pressure test (UL 10B) as the required standard for most fire doors in the U.S. following updates to model building codes. The key distinction:
UL 10B (neutral pressure): Tests door assemblies under conditions where pressure on both sides of the door is equal. Easier to pass.
UL 10C (positive pressure): Tests door assemblies under conditions where fire-side pressure exceeds corridor-side pressure — more accurately reflecting real building fire dynamics, where hot gases push against the door.
For architects specifying commercial building fire door hardware, all hinge listings should reference UL 10C (or the Canadian equivalent, CAN/ULC-S104) unless the authority having jurisdiction (AHJ) has accepted an alternative standard.

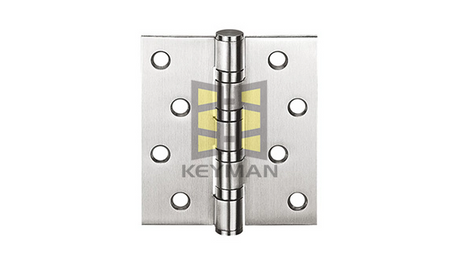

Keyman Lock's UL-listed hinges are tested and certified to UL 10C and CAN/ULC-S104 standards. View Keyman's certified UL hinge range at keymanlock.com/ul-hinge.html.
Different fire resistance ratings impose different performance demands on hinges. The table below summarizes the relationship between door rating, hinge requirements, and typical applications.
Fire Rating | Typical Application | Hinge Requirement | UL Listing Required? |
|---|---|---|---|
20 minutes | Corridor/office partitions, corridor doors in residential occupancies | Listed butt or pivot hinges; standard steel construction typically acceptable | Recommended; confirm with AHJ |
45 minutes | Stairwell doors in business occupancies, corridor doors in healthcare | UL-listed steel butt hinges; spring hinges if self-closing is required | Yes |
60 minutes | Corridor doors in high-rise buildings, tenant separation walls | UL-listed steel butt hinges; continuous hinges must be listed | Yes |
90 minutes | Stairwell and exit enclosure doors, occupancy separation walls | UL-listed heavy-duty steel butt hinges or continuous hinges | Yes |
180 minutes (3-hour) | Shaft enclosures, fire walls, high-hazard occupancy separations | UL-listed heavy-duty hinges tested to full 3-hour duration; most pivot and continuous hinges must be specifically listed for this rating | Yes — mandatory |
Key principle: As the fire resistance rating increases, so does the requirement for explicitly listed and labeled hardware. A hinge listed for 90 minutes cannot be assumed compliant for a 3-hour assembly without separate testing.
Direct answer: Spring hinges and continuous hinges always require a UL label on fire-rated assemblies. Standard butt hinges and pivot hinges may not require a UL label if they meet the dimensional, material, and quantity requirements of NFPA 80 — but verification with the AHJ is essential.
Here is a breakdown by hinge type:
Standard steel butt hinges used on fire door assemblies do not always require an individual UL label, provided they:
Are steel construction with a minimum gauge per NFPA 80 requirements
Are installed in the correct quantity (minimum three per leaf)
Are used as part of a complete, listed fire door assembly
Meet the dimensional requirements of the door manufacturer's listing
However, this exemption does not apply universally. Some door assembly listings specifically require labeled butt hinges. Always cross-reference the door manufacturer's listing documentation.
Spring hinges — used when a self-closing mechanism is integrated into the hinge itself rather than provided by a separate door closer — must carry a UL label when used on fire-rated assemblies. This is because the spring mechanism introduces a functional element that must be independently verified to operate correctly under fire conditions.
Continuous hinges span the full height of the door and are commonly used in high-traffic or high-abuse applications. Continuous hinges used on fire-rated doors must be UL listed and labeled. An unlisted continuous hinge will fail code compliance even if all other hardware is correctly specified.
Pivot hinges — including offset pivots and intermediate pivots — do not necessarily require a UL label under NFPA 80, provided the pivot system is specified within the door assembly's listing and the manufacturer's installation requirements are followed. For pivot systems used on 3-hour assemblies, individual component listings are typically required.
Keyman Lock offers a range of pivot hinge and offset pivot solutions at keymanlock.com/pivot-hinge-offset-pivots.html, as well as heavy-duty electrified pivot options for access-controlled fire doors at keymanlock.com/heavy-duty-electrified-middle-pivot-hinge.html.
Direct answer: As of 2026, no major structural revision to NFPA 80 beyond the 2022 edition has been adopted at the national level in the U.S. However, several state and local jurisdictions have updated their building code adoption cycles, and enforcement of positive-pressure testing requirements (UL 10C) has tightened in commercial projects.
Key developments architects and contractors should note:
Wider UL 10C enforcement: More AHJs are explicitly requiring UL 10C listings rather than accepting older UL 10B certifications, particularly in new commercial construction and major renovation projects. When specifying commercial building fire door hardware, confirm UL 10C compliance on all listed components.
Annual inspection emphasis: The 2022 edition of NFPA 80 strengthened language around annual inspection recordkeeping (Section 5.2). Facilities managers and contractors completing handover documentation should ensure fire door hardware inspection records — including hinges — are included in building operations manuals.
IBC 2024 cycle: The 2024 International Building Code (IBC) references NFPA 80-2022. Jurisdictions adopting IBC 2024 will automatically incorporate NFPA 80-2022 hinge and hardware requirements. Check local adoption status before specifying.
Electronic/electrified hardware on fire doors: Electrified hinges used with access control systems on fire-rated doors are under increasing scrutiny. Per NFPA 80, electrified hardware must be listed for use on fire doors and must fail-safe (i.e., allow the door to close and latch in the event of power loss).
Use this quick-reference checklist during specification, procurement, and inspection to ensure full compliance with NFPA 80-2022 and UL 10C requirements.
Confirm the fire resistance rating required for each door location (20 / 45 / 60 / 90 / 180 min)
Identify hinge type required: butt hinge, spring hinge, continuous hinge, or pivot hinge
Verify whether the specified hinge type requires a UL label for the given rating
Cross-reference hinge specification against the complete door assembly listing (door, frame, hinge, hardware must be compatible within a single listed assembly)
Confirm UL 10C listing (not just UL 10B) for all labeled hinges
Specify a minimum of three hinges per leaf; confirm additional hinges for doors exceeding standard height/weight thresholds
For electrified hinges: confirm fire-rated listing and fail-safe operation
Request UL listing cards or certification documentation from the hinge supplier
Confirm that hinge labels are physically present on the hardware (not just on packaging)
Verify that hinge finish does not compromise fire listing (some specialty finishes require separate testing)
Confirm country of origin and applicable standards match project jurisdiction (UL 10C for U.S.; CAN/ULC-S104 for Canada)
Install hinges using fastener type, size, and count per manufacturer's installation instructions
Do not field-modify, cut, or weld hinges without written confirmation that the modification is within the listing scope
Confirm door operates freely without hinge binding
Ensure gap clearances at hinge edge meet NFPA 80 maximum allowances
Document hinge listings in the fire door inspection record
Confirm self-closing hardware (including spring hinges) returns the door to fully latched position without manual assistance
Note any hinges requiring remediation and schedule replacement before occupancy
Provide building owner with NFPA 80 annual inspection requirements for ongoing compliance
Q: Can I use a standard residential hinge on a commercial fire-rated door?
A: No. Residential-grade hinges are not tested or listed for fire door assemblies. Installing an unlisted hinge on a fire-rated door will render the assembly non-compliant with NFPA 80 and will likely cause failure during AHJ inspection.
Q: Do fire-rated hinges look different from standard hinges?
A: Not always visually, but UL-listed fire-rated hinges will carry a permanent label (typically engraved or stamped on the hinge leaf) identifying the listing number, manufacturer, and applicable standard. Always look for this label as physical proof of compliance — documentation alone is insufficient.
Q: What happens if a hinge fails a fire door inspection?
A: Under NFPA 80, a fire door with a non-compliant hinge must be taken out of service or remediated before the next use of the opening. In commercial occupancies, this can trigger significant operational disruption. Addressing hinge compliance during construction is always more cost-effective than post-occupancy remediation.
Q: Are UL-listed hinges required for wood fire doors and metal fire doors alike?
A: Yes. NFPA 80 applies to fire door assemblies regardless of door material. Both wood and steel fire doors require listed hardware, including hinges, at the appropriate fire resistance rating.
Q: Where can I source UL 10C-listed commercial fire door hinges?
A: Keyman Lock manufactures UL/ANSI-compliant fire door hardware, including UL-listed hinges, tested to UL 10C and CAN/ULC-S104 standards. View the full range at keymanlock.com/ul-hinge.html or contact Keyman directly at keymanlock.com/contactus.html for project-specific specifications.
