Author: Site Editor Publish Time: 03-08-2026 Origin: Site

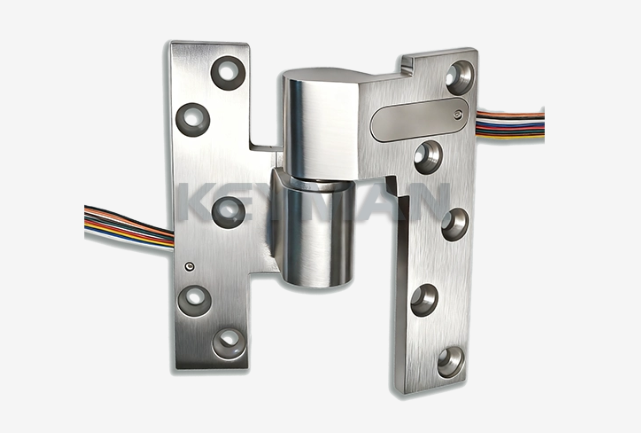

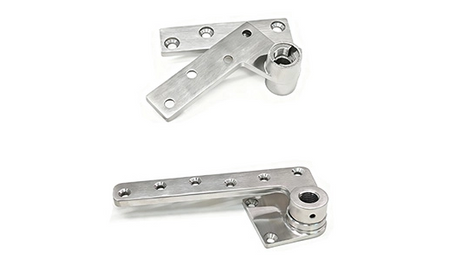

Keyman's Heavy Duty Electrified Middle Pivot Hinge (model series QKPH20E) is a 3/4-inch offset pivot hinge that transfers low-voltage electrical power from the door frame to the door body through internal cables concealed within the hinge itself. This eliminates exposed conduits, improves aesthetics, and supports reliable access control integration in commercial, industrial, and institutional environments.
Available in left-hand (LH) and right-hand (RH) configurations, the hinge accommodates 4, 6, or 8 wires and is constructed from SUS 304 stainless steel for long-term durability.
An electrified pivot hinge is a specialized hinge that routes electrical wiring internally through its body, allowing power to pass from a fixed door frame to a moving door without the use of external cable loops or conduits. In Keyman's heavy-duty electrified middle pivot hinge, the wiring runs through the hinge's core, connecting the stationary frame side to the door side in a single, concealed path.
This design serves two purposes: it keeps the installation visually clean and eliminates the mechanical wear and safety risks associated with exposed wiring on frequently operated doors.
The primary reason to use an electrified pivot hinge is to eliminate exposed cables. In access control installations, power must reach door-mounted devices such as electric locks, sensors, request-to-exit (REX) devices, and alarm contacts. Without an electrified hinge, installers typically route cables through an external loop or conduit alongside the door frame — a solution that is visible, vulnerable to mechanical damage, and often non-compliant with aesthetic requirements in secure or high-end environments.
Keyman's electrified middle pivot hinge solves this by integrating the wiring path into the hinge itself, delivering a cleaner installation with reduced long-term maintenance risk.
The left-hand model is engineered for offset-hung doors that swing on the left side. It is a non-load-bearing component, meaning it must be used in conjunction with a load-bearing pivot to carry the door's weight.
Model: QKPH20E-LH
Hand: Left Hand (LH)
Offset: 3/4 inch (19 mm)
Wire options: 4, 6, or 8 wires
Wire gauge: 18 AWG, rated at 2 amps
Wiring class: Class II low-voltage
Material: Stainless steel (SUS 304)
Door edge bevel required: 1/8" in 2"
Includes: Wood and machine screws
Load-bearing: No — must be paired with a load-bearing pivot
The right-hand model shares the same electrical and mechanical specifications as the LH version, designed specifically for right-hand offset-hung door installations.
Model: QKPH20E-RH
Hand: Right Hand (RH)
Offset: 3/4 inch (19 mm)
Wire options: 4, 6, or 8 wires
Wire gauge: 18 AWG, rated at 2 amps
Wiring class: Class II low-voltage
Material: Stainless steel (SUS 304)
Door edge bevel required: 1/8" in 2"
Includes: Wood and machine screws
Load-bearing: No — must be paired with a load-bearing pivot
Keyman's heavy-duty offset hinge supports three wire count options. Selecting the right configuration depends on the number of powered devices mounted on the door and the complexity of the access control system.
4-Wire: Suitable for single-device applications — for example, powering one electric strike or one electromagnetic lock. This is the standard choice for basic access control doors with a single powered component.
6-Wire: Appropriate when two separate circuits are required — for instance, powering an electric lock while also routing a door position switch (DPS) signal. Commonly used in monitored access control environments.
8-Wire: Recommended for complex doors requiring multiple circuits — such as simultaneous power to an electric lock, a REX sensor, an alarm contact, and a door status monitor. Typically specified for high-security installations or doors integrated into building management systems.
When specifying your order, confirm the total number of independent circuits required by all door-mounted devices before selecting a wire count.
Keyman's electrified middle pivot hinge is well suited to the following environments:
Server room access doors: Where concealed wiring is essential for both aesthetics and cable protection in sensitive IT environments
Secure storage cabinets and vaults: Where heavy door construction requires robust pivot hardware with integrated power for electronic locking
Large maintenance access hatches and industrial panels: Where standard hinges cannot accommodate the door weight or the wiring requirements of monitoring systems
Commercial office and institutional buildings: Where clean, compliant installations are required for access control, alarm, or intercommunication systems
Before specifying or installing this hinge, note the following requirements:
Non-load-bearing: The QKPH20E series does not carry the structural weight of the door. It must always be used alongside a separate load-bearing pivot hinge. Failure to install the correct load-bearing pivot will result in premature wear and mechanical failure.
Door edge bevel: The door edge must be beveled at 1/8" in 2" to allow proper clearance and hinge function.
Pivot set compatibility: The hinge is designed for use with 3/4-inch (19 mm) offset pivot sets only.
Electrical class: Wiring must comply with Class II low-voltage requirements. The 18-gauge cable is rated at a maximum of 2 amps; do not exceed this rating.
Handedness: Order the correct hand (LH or RH) based on the door swing direction. These are not interchangeable.
Q: What is the difference between an electrified pivot hinge and a standard pivot hinge?
A standard pivot hinge provides only mechanical support for door rotation. An electrified pivot hinge — such as Keyman's QKPH20E — additionally routes low-voltage electrical cables internally through the hinge body, allowing power and signal to transfer between the door frame and the door without external wiring.
Q: Can this hinge support the full weight of a heavy door on its own?
No. The QKPH20E electrified middle pivot hinge is non-load-bearing and must be installed in combination with a compatible load-bearing pivot hinge. The electrified hinge handles power transfer; the load-bearing pivot carries the structural weight of the door.
Q: What types of devices can be powered through this electrified hinge?
The hinge can supply power to any Class II low-voltage device rated within the 2-amp capacity of the 18 AWG cable. Common applications include electric strikes, electromagnetic locks, door position switches, request-to-exit (REX) sensors, and alarm contacts. Multi-circuit configurations (6- or 8-wire) allow multiple devices to be powered simultaneously through a single hinge.
Q: Is the hinge available for both left-hand and right-hand door configurations?
Yes. Keyman offers the QKPH20E in both left-hand (QKPH20E-LH) and right-hand (QKPH20E-RH) variants. The correct hand must be specified at the time of order, as the two models are not interchangeable.
Q: What wire gauge and amperage rating does this hinge support?
The hinge uses 18-gauge wire rated at 2 amps for Class II low-voltage wiring applications. This rating applies to all wire configurations (4, 6, and 8 wire).
For technical specifications, product catalogues, and custom configuration inquiries, contact the Keyman team.
