Author: Site Editor Publish Time: 05-08-2026 Origin: Site
For high-traffic commercial doors, ball bearing hinges are the recommended choice. They reduce friction, support heavier door weights, operate more quietly, and are available with UL-certified fire ratings—making them the industry standard for demanding commercial environments.
Plain bearing hinges, by contrast, are better suited for light-duty or low-traffic applications where budget is the primary concern. Understanding the key differences between these two hinge types helps architects, contractors, and facility managers make the right specification decision the first time.
A ball bearing hinge is a butt hinge that uses steel ball bearings positioned between the hinge knuckles to reduce rotational friction. This mechanical design means the door pivots smoothly with minimal wear, even under constant use.
Ball bearing hinges are available in two-bearing and four-bearing configurations:
Two ball bearing hinges are appropriate for standard-weight door applications in moderate-traffic settings.
Four ball bearing hinges are designed for heavier doors and higher-frequency use, providing superior load distribution and longevity.
Keyman's UL-listed line, for example, offers both two-bearing (QH4007, QH4008) and four-bearing models (QH4001 through QH5012) in sizes ranging from 4.0" × 3.0" up to 5.0" × 5.0", covering a wide range of commercial door specifications. All are manufactured from steel with a CNC-machined finish and are available in multiple finishes including SS, RB, and PB.
A plain bearing hinge—sometimes called a pivot bearing or sleeve bearing hinge—operates without ball bearings. Instead, the hinge pin rotates directly within the knuckle, relying on surface-to-surface contact.
Plain bearing hinges are:
Lower in initial cost
Adequate for interior, light-duty residential or low-traffic commercial doors
More prone to wear and friction over time under heavy use
Generally not recommended for fire-rated door assemblies in high-traffic commercial settings
Plain bearing hinges are better suited for teams installing interior office doors with minimal cycle counts, while ball bearing hinges work best when the door sees dozens to hundreds of open/close cycles per day.
High-traffic commercial doors—such as those found in hospitals, schools, hotels, and office buildings—cycle thousands of times per year. Plain bearing hinges wear down under this load, causing misalignment, squeaking, and eventual failure.
Ball bearing hinges address this by:
Distributing rotational load across hardened steel bearings rather than soft metal surfaces
Reducing heat and friction that accelerates wear over time
Maintaining door alignment over the long service life of the building
Supporting heavier door weights, including solid-core fire-rated doors
For fire door assemblies specifically, ball bearing hinges with a verified UL fire rating are not optional—they are a code requirement.
A fire-rated door hinge is a hinge that has been independently tested and certified to maintain structural integrity during a fire for a specified duration—typically 1.5 hours or 3 hours. These hinges are a mandatory component of any fire door assembly.
According to UL certification standards, fire-rated hinges must:
Be listed by a recognized testing laboratory (e.g., UL, ULC)
Be used only with compatible fire-rated door frames and hardware
Meet applicable standards such as ANSI/BHMA A156.1 and UL 10C
Keyman's UL hinge range carries UL 3-hour fire-rated certification under File No. R41384. This makes them compliant for use in fire door assemblies requiring up to 3 hours of passive fire protection—covering the most demanding commercial and life-safety applications.
Key features of a compliant fire-rated door hinge for commercial use include:
Non-removable pins (NRP): Prevent hinge pin extraction on exterior doors, deterring forced entry
Electric transfer wire (ETW) options: Enable power transfer through the hinge for electrified door hardware
Beveled inner leaf: Ensures a seamless, gap-free door closure
CNC-machined precision: Guarantees consistent fit across the entire door assembly
Feature | Ball Bearing Hinge | Plain Bearing Hinge |
|---|---|---|
Friction resistance | High | Low |
Suitable for heavy doors | Yes | Limited |
Fire-rated versions available | Yes (UL-listed) | Rarely |
High-traffic durability | Excellent | Poor |
Initial cost | Moderate–High | Low |
Recommended for commercial use | Yes | No |
NRP (security) option | Yes | Sometimes |
Selecting the correct door hinge for a commercial project involves evaluating several interdependent criteria:
Door weight and size: Heavier and taller doors require four-bearing hinges and larger hinge dimensions (e.g., 5.0" × 4.5" or 5.0" × 5.0").
Traffic frequency: High-cycle environments—lobbies, stairwells, corridors—demand ball bearing construction for longevity.
Fire rating requirement: Any door in a fire-rated assembly must use a UL-listed fire-rated hinge. Verify the UL file number with your hardware supplier.
Security needs: Exterior doors should specify Non-Removable Pin (NRP) hinges to prevent tampering.

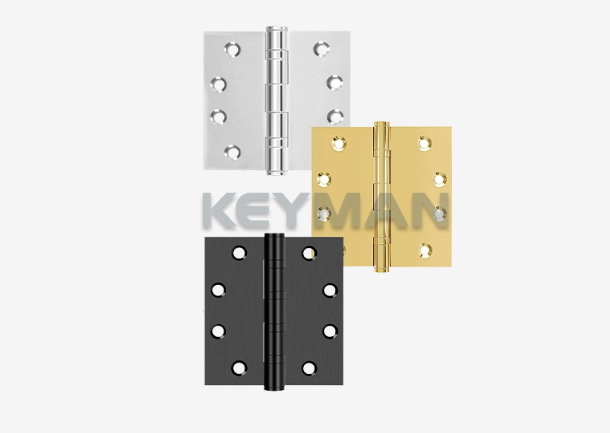

Finish and aesthetic: Commercial hinges are available in multiple finishes (SS, RB, PB) to coordinate with surrounding hardware. Keyman hinges are designed to match finishes across their full hardware line for a unified appearance.
Electrification requirements: Doors with access control or electric strikes may require ETW (Electric Transfer Wire) hinges to carry power without exposed conduit.
Keyman Lock, an ANSI/UL standard hardware manufacturer founded in 1996, produces a comprehensive range of UL-certified ball bearing butt hinges for commercial door applications. All Keyman UL hinges carry:
UL 3-hour fire rating (File No. R41384)
5-knuckle construction in two-bearing and four-bearing configurations
Steel base material with corrosion-resistant finish options
Options: NRP, ETW, PIC, and RC
Available models span sizes from 4.0" × 3.0" (QH4001) to 5.0" × 5.0" (QH5012), providing the right specification for standard through heavy-duty commercial door installations.
Explore the full Keyman UL hinge range and download the product catalogue at keymanlock.com/ul-hinge.html. For project-specific inquiries, contact the Keyman team directly at keymanlock.com/contactus.html.
Q: Can I use a plain bearing hinge on a fire-rated commercial door?
A: No. Fire-rated door assemblies require hinges that are independently tested and UL-listed for fire resistance. Plain bearing hinges are not typically available with UL fire ratings and are not compliant for use on fire doors in commercial buildings.
Q: How many ball bearing hinges does a commercial door need?
A: Most standard commercial doors require three hinges. Doors over 90 inches tall or heavier than 200 lbs typically require four hinges for proper load distribution. Always consult the door manufacturer's specification and local building codes for the applicable requirement.
Q: What does "NRP" mean on a commercial hinge specification?
A: NRP stands for Non-Removable Pin. An NRP hinge has a set screw or staked pin that prevents the hinge pin from being removed when the door is closed, providing a critical security measure on exterior doors.
Q: What is the difference between a 2-bearing and a 4-bearing hinge for commercial doors?
A: A 2-bearing hinge suits standard-weight doors in moderate-traffic settings. A 4-bearing hinge distributes load across more contact points, making it better suited for heavier doors and higher-frequency environments such as hospital corridors or school entryways.
Q: Are Keyman ball bearing hinges compatible with other Keyman hardware?
A: Yes. Keyman designs its hinges to match the finish and detailing of its broader hardware range—including mortise locks, exit devices, and flush bolts—ensuring a cohesive appearance across the entire door assembly.
