An intermediate pivot hinge is a mid-door support pivot installed between the top and bottom pivots of a tall commercial door. It prevents the door from bending, sagging, or falling out of alignment under its own weight. For any door 60" or taller, at least one intermediate pivot is required — with one additional pivot needed for every extra 30" of door height.
Keyman's heavy-duty intermediate pivot hinges (models KPH30RH and KPH30LH) are engineered from corrosion-resistant 304 stainless steel with precision needle bearings, offering reliable long-term performance for high-traffic commercial applications.
An intermediate pivot hinge — also called a central or mid-point pivot — mounts between the top and bottom pivot points along the door's vertical axis. Unlike standard hinges that transfer a door's weight to the side frame, pivot hinges distribute the load downward to the floor. This makes them far better suited for tall, heavy commercial doors.
The intermediate pivot serves one critical function: preventing door flex and misalignment. Without mid-door support, a tall door can bow or drift out of plane, creating binding, gaps, or failures in the locking and closing mechanism. The intermediate pivot hinge eliminates this risk by anchoring the door at its midpoint, keeping it straight and true across its full height.
The number of intermediate pivot hinges required depends directly on door height. Use the following calculation formula:
Start with one intermediate pivot for any door 60" or taller.
Add one additional intermediate pivot for every additional 30" of door height beyond 60".
Door Height | Intermediate Pivots Required |
|---|---|
Up to 59" | 0 |
60" – 89" | 1 |
72" | 1 |
90" – 119" | 2 |
120" | 3 |
Practical examples:
A 72" door requires 1 intermediate pivot
A 90" door requires 2 intermediate pivots
A 120" door requires 3 intermediate pivots
This formula ensures adequate mid-door support at regular intervals, preventing flex and maintaining consistent door alignment throughout the door's service life.
Keyman's intermediate pivot hinges use a full mortise-mount design, meaning the pivot installs into routed cavities within both the door edge and the side jamb. Once installed, the hardware sits completely flush with the surface of the door and the door frame — with no exposed profile.
This flush finish offers two key advantages:
Structural integrity — The pivot is fully captured within the door body and jamb, providing a stronger, more stable connection than surface-mounted alternatives.
Clean appearance — The hardware remains virtually invisible after installation, preserving the door's aesthetic for glass, wood, or aluminum commercial doors.
The full-mortise design also simplifies integration with floor closers and bottom pivots, which are common in commercial pivot door systems.

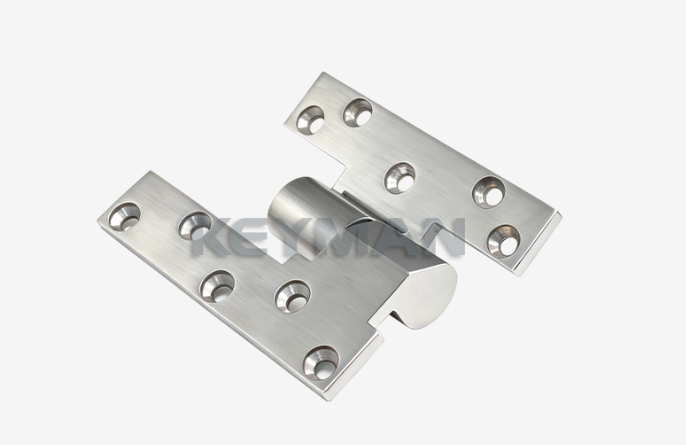

The KPH30RH is engineered for superior performance in right-hand commercial door configurations.
Product Features:
Model: KPH30RH Middle
Full mortise installation (mortises into side jamb and hinge edge of door)
Designed for ¾" (19 mm) offset pivot sets
Maintains door alignment and prevents sag
Aids in installing floor closers and bottom pivots
Stainless steel needle bearings for smooth, long-lasting operation
Material: SUS 304 stainless steel (corrosion-resistant)
Handed: Right Hand (RH)
The KPH30LH delivers the same heavy-duty performance as the KPH30RH in a left-hand configuration, making it suitable for any pivot door orientation.
Product Features:
Model: KPH30LH Middle
Full mortise installation (mortises into side jamb and hinge edge of door)
Designed for ¾" (19 mm) offset pivot sets
Maintains door alignment and prevents sag
Aids in installing floor closers and bottom pivots
Stainless steel needle bearings for smooth, long-lasting operation
Material: SUS 304 stainless steel (corrosion-resistant)
Handed: Left Hand (LH)
Choosing between LH and RH: The door's handing is determined by which side the hinges are on when facing the door from the outside (the pull side). A right-hand door has hinges on the right; a left-hand door has hinges on the left. Always confirm door handing before ordering.
Both KPH30RH and KPH30LH incorporate precision stainless steel needle bearings at the pivot point. Needle bearings are cylindrical rollers arranged radially around a central pin, which dramatically reduces rotational friction compared to plain-bore pivots.
In commercial door applications — where a door may cycle hundreds of times per day — this low-friction design translates to:
Consistently smooth operation over years of heavy use
Reduced wear on both the pivot and the door hardware system
Resistance to corrosion in humid or high-traffic environments, due to the SUS 304 stainless steel construction
The combination of 304 stainless steel construction and needle-bearing mechanics makes these pivots well suited for exterior commercial doors, where moisture exposure and daily use are constant factors.
Q: What is the difference between a pivot hinge and a standard hinge for commercial doors?
A standard hinge attaches to the door's face edge and transfers weight to the door frame. A pivot hinge attaches at the top and bottom of the door on a vertical axis, distributing the door's weight down to the floor. This load path makes pivot hinges far more suitable for tall, heavy commercial doors, as it reduces stress on the door frame and allows for greater door weight capacity.
Q: Can intermediate pivot hinges be used with electrified pivot systems?
Keyman also offers a Heavy Duty Electrified Middle Pivot Hinge for applications that require power transfer through the pivot point — for example, doors with electronic access control or electric latch retraction. The KPH30RH and KPH30LH are mechanical pivots intended for non-electrified applications.
Q: Do intermediate pivots work with floor closers?
Yes. The KPH30RH and KPH30LH are specifically designed to aid in the installation of floor closers and bottom pivots. The full-mortise design aligns cleanly with floor closer systems, simplifying the overall installation and ensuring consistent door travel.
Q: What door weight can these intermediate pivots support?
The KPH30RH and KPH30LH are classified as heavy-duty pivots constructed from SUS 304 stainless steel. For specific load rating data, refer to the KEYMAN UL Hinge Catalogue or contact Keyman directly for technical specifications.
Q: Are these pivots compatible with offset pivot sets other than ¾"?
The KPH30RH and KPH30LH are designed specifically for ¾" (19 mm) offset pivot sets. For other offset dimensions, consult Keyman's full Pivot Hinge Offset Pivots range to confirm compatibility.
