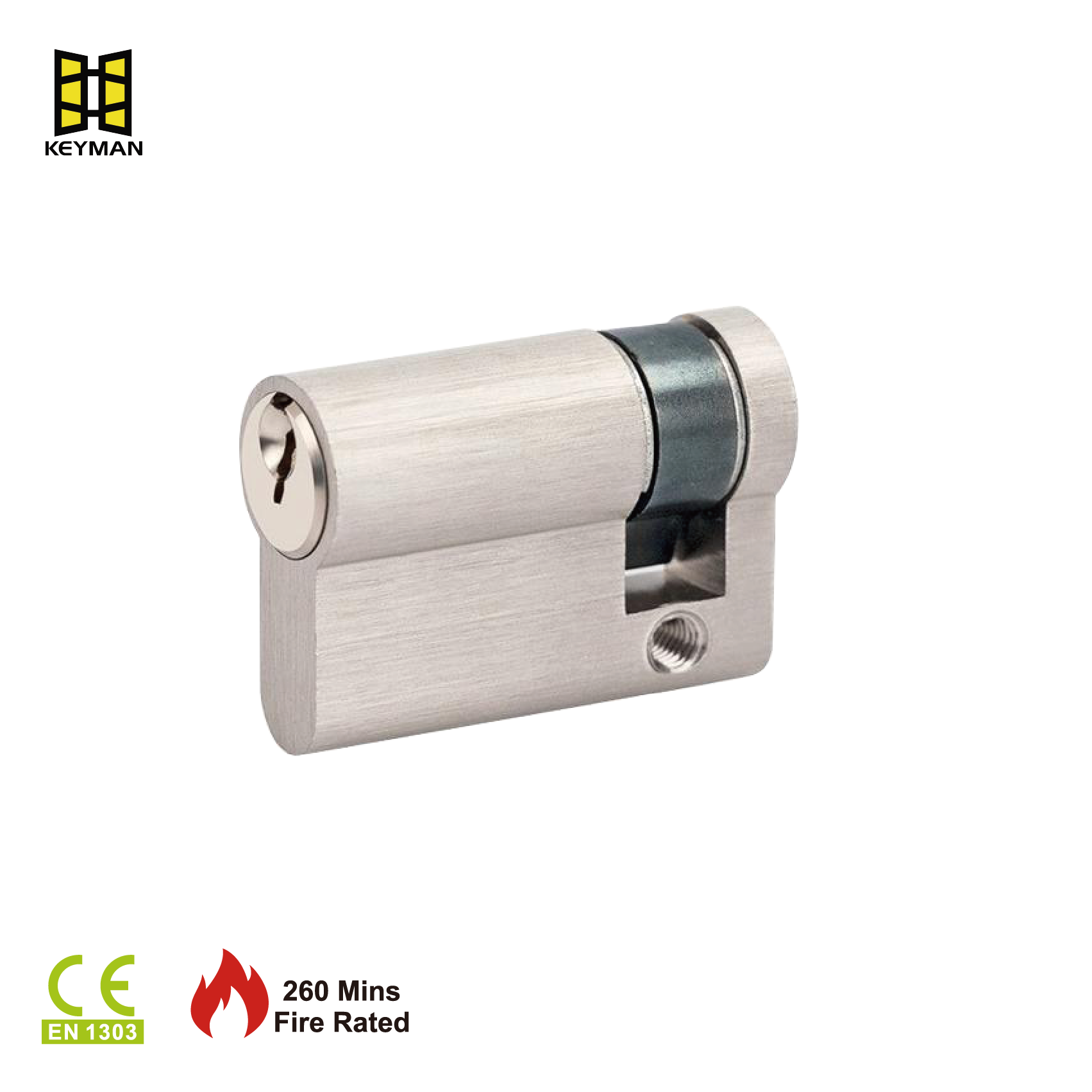

The KEYMAN EN 1303 High Security Half Euro Profile Cylinder in 45mm is engineered for applications where locking is required from one side only, such as garage doors, metal gates, or switchgear cabinets. Its compact 45mm total length makes it an ideal choice for doors with limited space or specific escutcheon requirements.
Manufactured from solid brass, the cylinder ensures excellent durability and corrosion resistance, guaranteeing long-term reliability even in demanding conditions. Compliance with the rigorous EN 1303:2015 standard certifies that it has undergone stringent testing for durability, corrosion resistance, and attack resistance against methods like drilling and picking .
Key security features often include anti-drill pins and mushroom or spool pins to effectively resist manipulation attempts such as picking and bumping . The cylinder is typically supplied with three keys and can often be part of a Master Key or Keyed Alike system for convenient access management across multiple points .
Specifications
Feature | Specification |
Product Type | Half Euro Profile Cylinder (Single-Sided) |
Security Standard | BS EN 1303:2015 |
Total Length (C / O/A) | 45mm (e.g., 10mm/35mm configuration is common) |
Operation | Key from one side only |
Material | Solid Brass (Body, Plug, and Keys) |
Pin Tumbler | Typically 6 Pins |
Security Features | Anti-Drill, Anti-Pick Pins |
Keying | Supplied with 3 Keys. Keyed Alike & Master Key options available |
Finish | SN,RB,PN,DA,SC,SF |
Applications
Industrial & Utility: Ideal for garage doors, switchgear cabinets, control panels, and metal gates .
Specific Residential Uses: Suitable for certain types of garden sheds or storage units where external locking is sufficient.
Frequently Asked Questions (FAQ)
Q1: What does "Half Cylinder" mean?
A1: A half cylinder (or single cylinder) is designed to be operated with a key from one side only. The other side is fixed and cannot be operated, making it suitable for doors that don't require access from both sides .
Q2: How do I confirm that the 45mm size will fit my door?
A2: It is crucial to measure your existing cylinder or the door preparation. The 45mm is the total length (dimension C). You also need to measure the distance from the center of the fixing screw/cam to each end of the cylinder (dimensions A and B) to ensure the new cylinder will sit flush with the door escutcheon .
Q3: Can this cylinder be used on a fire door?
A3: A standard EN 1303 cylinder is tested for security and durability. For a certified fire door, you must select a cylinder that is specifically tested and approved for use in fire door assemblies to maintain the door's fire rating. Always check the product's specific fire certification .
