Description

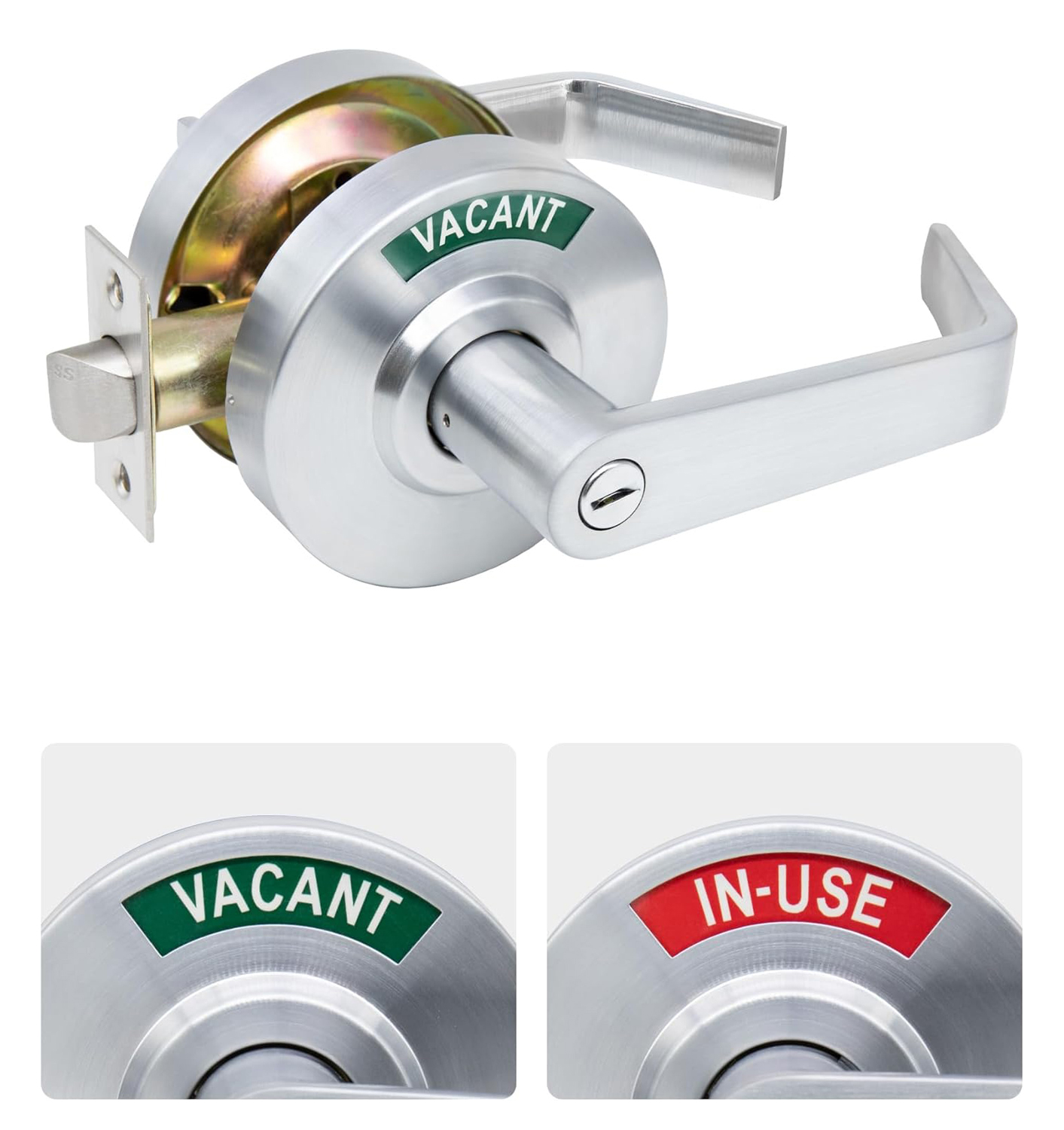

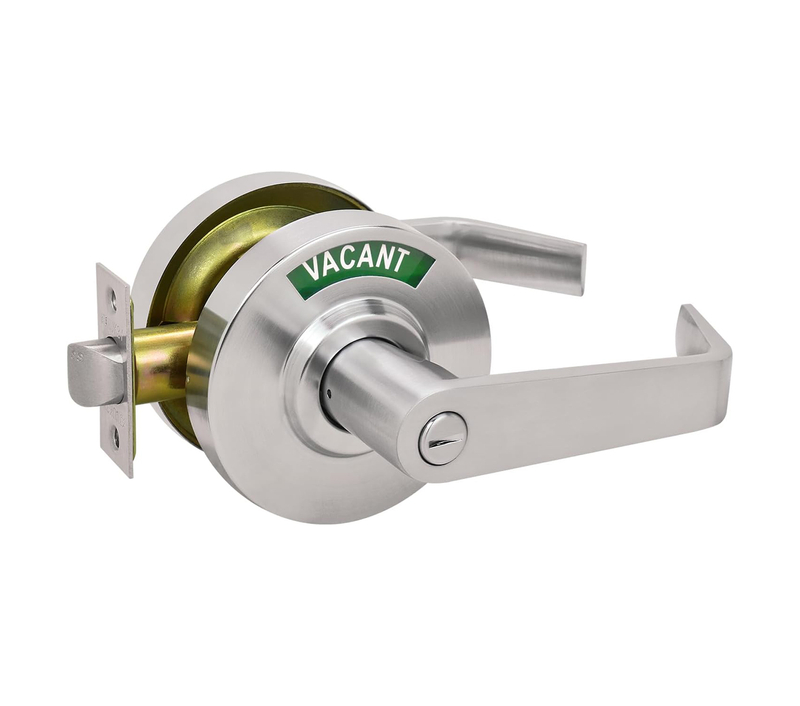

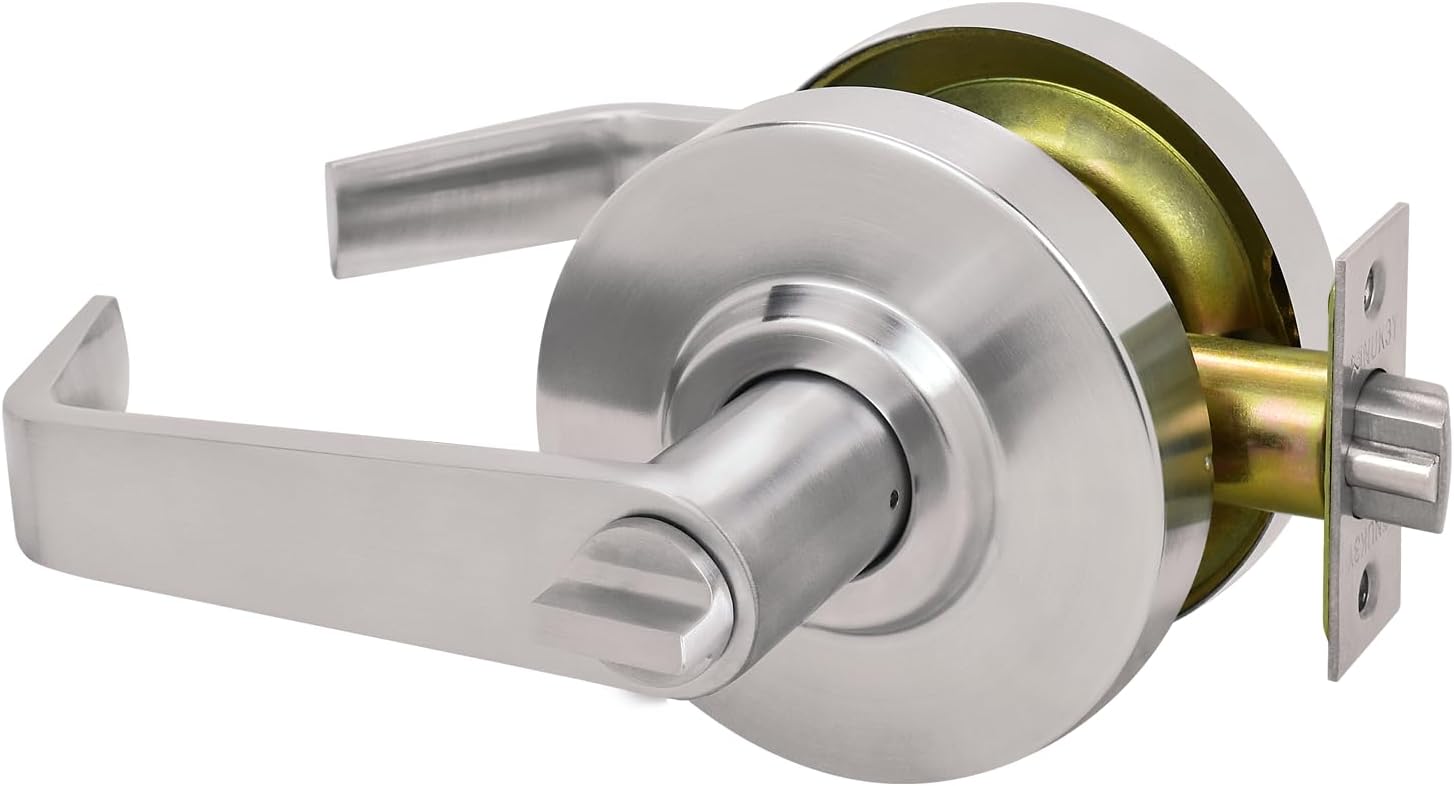

Premium commercial bathroom indicator lock with clear rose visual status for vacant/occupied status. Cylindrical solid construction ensures long durability for high-traffic use. Features instant visible status window, one-motion egress and anti-lockout design. Quick installation with universal non-handed design, available in multiple premium finishes for office, restroom and commercial applications.
Features
· Rose visual indicator clearly shows vacant or occupied lock status at a glance
· Sturdy cylindrical structure delivers excellent durability for frequent daily use
· Simple & fast installation, cost-effective upgrade for existing door locks
· One-motion egress function prevents accidental lockouts of empty rooms
· Universal non-handed design fits most standard door thickness and backset
· Built to high strength standards, perfect for high-use commercial scenarios
· Interior pushbutton control; exterior with indicator and emergency coin override
· Product Specifications
Specifications
Parameter | Details |
Function Type | Bathroom Privacy Indicator Lock |
Handing | Non-handed / Reversible |
Standard Backset | 2 3/4" |
Minimum Backset | 2 3/8" |
Standard Door Thickness | 1 3/4" |
Min. Door Thickness | 1 3/8" |
Latchbolt Throw | 1/2" |

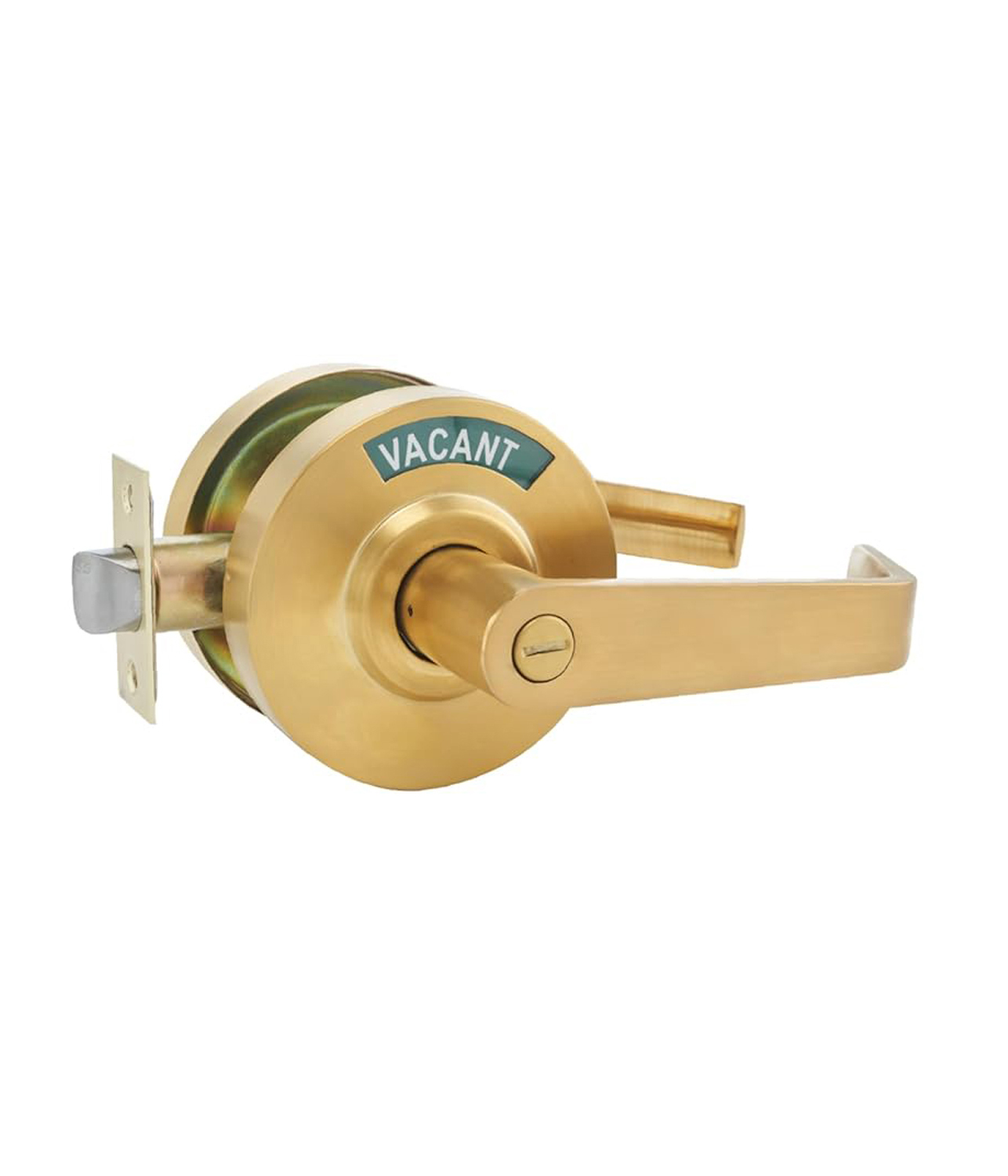

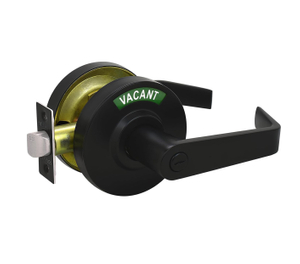

Finishes | US32D Satin Stainless Steel, US19 Matte Black, Satin Brass |
Status Display | Color-coded IN USE / VACANT |
Interior | Thumbturn only |
Exterior | Indicator with emergency coin key override |
Frequently Asked Questions
Q: Can this lock be installed on both left and right-handed doors?
A: Yes, the lock features a fully reversible, non-handed design with a simple internal reverse pin mechanism. It works seamlessly with both left- and right-handed doors without additional parts or complicated adjustments.
Q: What door thickness and backset sizes does this lock fit?
A: It accommodates door thicknesses from 1-3/8" to 2" (standard 1-3/4") and supports both 2-3/8" (60mm) and 2-3/4" (70mm) backsets, making it compatible with most standard commercial and residential door prep.
Q: How does the occupancy indicator work, and is it visible from a distance?

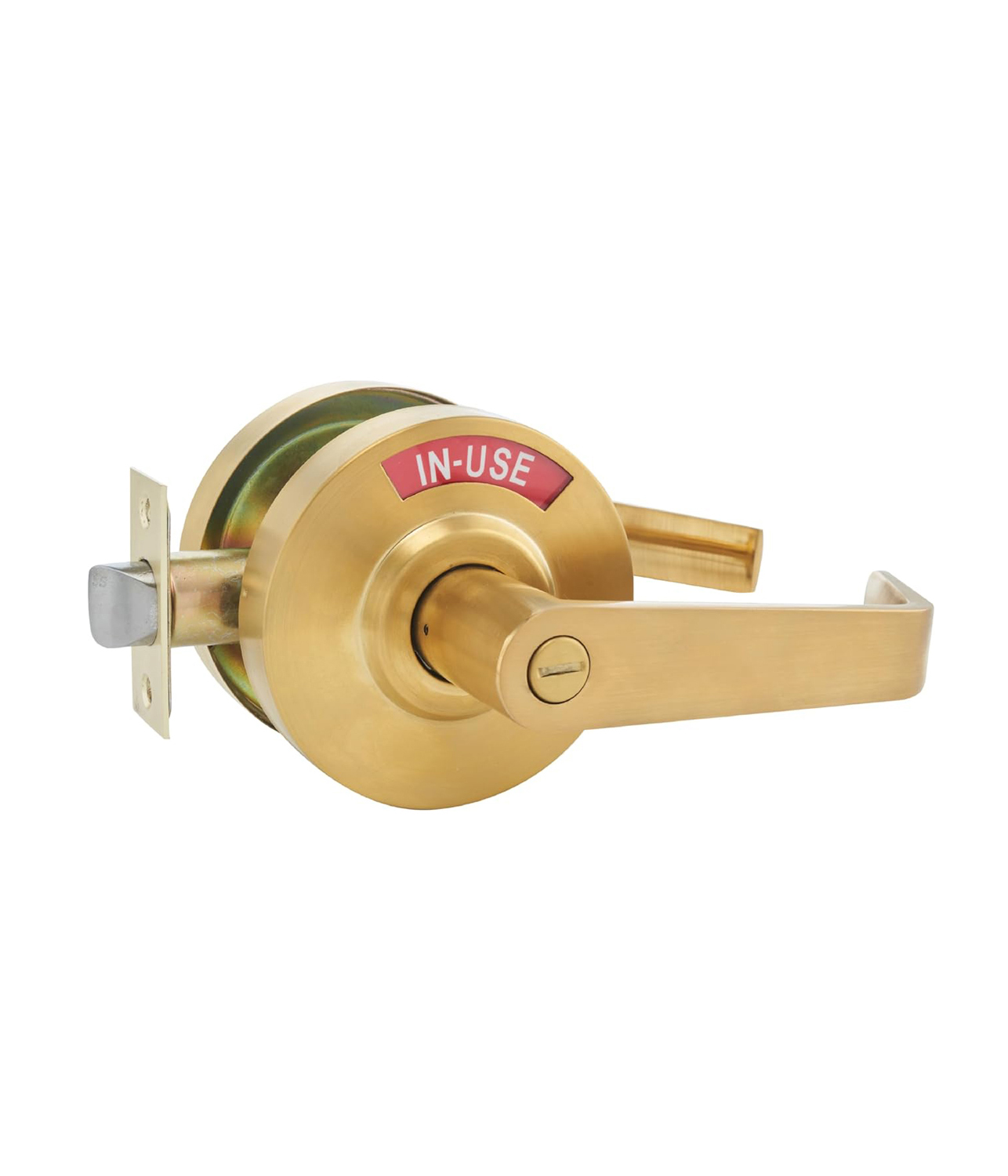

A: The interior pushbutton locks the exterior lever and changes the indicator display to "IN USE" (red). Unlocking from the interior (via lever or door closure) resets it to "VACANT" (green). The bold color-coded display is clearly visible from up to 50 feet away.
Q: Is there an emergency way to open the lock from the outside if someone is locked in?
A: Yes, the exterior lever includes a coin turn emergency override. Authorized personnel can use a coin or flat tool to turn the override and unlock the door from the outside in case of emergency.
Q: How durable is this lock, and is it suitable for high-traffic commercial use?
A: Built for commercial-grade performance, the lock is tested to withstand over 500,000 open/close cycles. Its robust construction, anti-sag technology, and premium materials make it ideal for high-traffic areas like public restrooms, offices, clinics, and treatment rooms.
