A delayed egress panic bar is a specialized exit device that holds a door locked for a short, code-regulated period — typically 15 seconds — after pressure is applied to the push bar, while simultaneously triggering an audible and visual alarm. When a genuine fire emergency occurs, the device releases instantly upon receiving a signal from the building's fire alarm panel, guaranteeing unobstructed egress. Keyman's X-Escape Delayed Egress Panic Bar with Alarm Exit Device delivers exactly this balance: controlled, monitored exits under normal conditions, and failsafe evacuation when lives are at risk.
Table of Contents
A delayed egress panic bar operates through three integrated mechanisms: electromagnetic locking, a timed delay, and an alarm trigger.
When an individual presses the push bar:
Electromagnetic lock engages — the door remains secured, resisting unauthorized exit.
Alarm activates immediately — a loud audible alert and a visible strobe signal that an exit attempt is in progress, giving security personnel time to respond.
Timed release — after the pre-set delay (typically 15 seconds), the door unlocks automatically, ensuring occupants are never permanently trapped.
Upon receiving a fire alarm signal, the device bypasses the delay entirely and releases the door lock instantly and unconditionally — a failsafe mechanism that prioritizes life safety above all else.
Following any alarm activation, the system enters a lockout state. An authorized key is required to manually reset the device, creating a documented, controlled response to each security event.
NFPA 101 (Life Safety Code) governs the use of delayed egress locking systems in the United States. Facilities must meet specific conditions before a delayed exit device can be installed.
Allowance conditions:
The building must be protected throughout by an approved, supervised automatic sprinkler system or automatic fire detection system.
The delayed egress device must not be used on doors in the required means of egress from high-hazard occupancies.
Time limit:
The delay must not exceed 15 seconds after the push bar is first actuated. Some jurisdictions permit a 30-second delay under specific conditions; always verify local code requirements.
Alarm requirements:
The device must trigger a local alarm signal (audible and/or visual) immediately upon actuation of the push bar — before the delay period begins.
The alarm must be audible throughout the immediate area of the door.
Fire alarm integration:
The delayed egress lock must release immediately upon activation of the building's fire alarm system or sprinkler system, with no delay whatsoever.
Signage:
A compliant "EMERGENCY EXIT ONLY — PUSH UNTIL ALARM SOUNDS, DOOR CAN BE OPENED IN 15 SECONDS" decal must be affixed to the door at eye level.
Keyman's X-Escape Delayed Egress Panic Bar is designed to meet these requirements, with customizable delay settings and direct integration with fire alarm panels.
Delayed egress exit devices are best suited for facilities where wandering, unauthorized exit, or theft are primary concerns — but where life-safety compliance is non-negotiable.
Behavioral health facilities: Prevents at-risk patients from leaving unsupervised, while guaranteeing evacuation capability in emergencies.
Memory care and dementia units: Deters disoriented residents from exiting undetected without physically restraining them — a critical balance required by healthcare regulators.

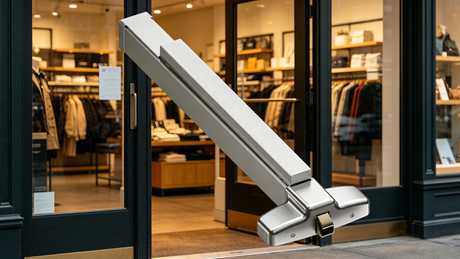

Retail loss prevention: Secures secondary or back-of-house exits against shoplifting while remaining fully compliant with fire egress codes.
Data centers and server rooms: Controls access to high-value infrastructure areas, logging all exit attempts for security audits.
Correctional and secure government facilities: Supports perimeter integrity while meeting occupant safety mandates.
Schools and childcare centers: Monitors door activity and deters unauthorized exit or entry without obstructing legitimate emergency evacuation.
Both devices allow emergency egress — but they serve fundamentally different security needs.
Feature | Standard Panic Bar | Delayed Egress Panic Bar |
|---|---|---|
Exit speed | Immediate | 15-second delay |
Alarm on actuation | Optional | Required (built-in) |
Fire alarm integration | Not required | Mandatory failsafe release |
Authorized reset required | No | Yes |
Code requirements | ANSI/BHMA A156.3 | NFPA 101 §7.2.1.6 |
Best for | General commercial egress | High-security, monitored environments |
A standard panic bar is better suited for general commercial buildings, offices, and retail storefronts where unrestricted emergency exit is the primary goal. A delayed egress panic bar with alarm is the right choice when a facility needs to deter unauthorized exits, monitor door activity, and integrate exit control into a broader security system — without compromising life safety compliance.
Configurable 15-second delay — pre-set hold time activates immediately upon push bar pressure, with optional adjustment to meet local code requirements
Integrated audible and visual alarm — triggers instantly on actuation, alerting security staff before the door releases
Fire alarm panel integration — unconditional instant release upon receiving a fire alarm signal, with no delay
High-security lockout and reset — requires authorized key reset after each alarm event, ensuring documented security response
Compliant emergency exit signage — "EMERGENCY EXIT ONLY" decal included, meeting NFPA 101 visibility requirements
Customizable settings — delay duration and alarm type adjustable to match facility-specific security policies and local building codes
Correct installation of a delayed egress panic bar requires careful coordination between the exit device, the building's fire alarm system, and any access control infrastructure.
Wiring and interconnection logic:
The device must be wired to receive a dry contact signal from the fire alarm control panel (FACP). Upon alarm activation, this signal triggers instant, unconditional release of the electromagnetic lock.
Most installations use a normally closed (NC) circuit: the lock holds when the circuit is closed, and releases when the fire alarm opens it. Confirm the device's fail-safe/fail-secure configuration with your licensed installer before commissioning.
Power supply:
Delayed egress devices require a dedicated, supervised power supply. Power failure behavior (fail-safe vs. fail-secure) must be determined by occupancy type and local code.
Commissioning checklist:
Verify fire alarm panel integration — test full release on alarm signal.
Confirm delay timing with a stopwatch against local code requirements.
Test audible and visual alarm activation on push bar actuation.
Verify lockout state engages after alarm and requires authorized key reset.
Confirm compliant signage is correctly positioned at eye level on the door.
Document all test results for the Authority Having Jurisdiction (AHJ) inspection.
For complex installations involving access control system integration or multi-door deployments, consult a licensed locksmith or security integrator familiar with NFPA 101 compliance in your jurisdiction.
Q: What is the difference between a delayed egress lock and a delayed exit device?
A: The terms are used interchangeably in most contexts. Both refer to a door locking mechanism that holds the door secured for a short code-regulated period after an exit attempt is made, while triggering an alarm. "Delayed egress lock" typically refers to the locking mechanism itself, while "delayed exit device" or "delayed egress panic bar" describes the full assembly including the push bar and alarm components.
Q: Can a delayed egress panic bar be installed on any door?
A: No. NFPA 101 restricts delayed egress devices to buildings fully protected by automatic sprinkler or fire detection systems, and prohibits their use on doors in required means of egress from high-hazard occupancies. Always consult your local Authority Having Jurisdiction (AHJ) before specifying a delayed egress device.
Q: What happens if the power goes out — does the door stay locked?
A: This depends on the device's configuration. Fail-safe models release the lock on power failure, allowing free egress (required in most life-safety applications). Fail-secure models remain locked on power failure. The correct configuration depends on occupancy type, local codes, and facility risk assessment. Keyman's X-Escape can be configured to meet your specific requirements.
Q: Is a 30-second delayed egress setting permitted under NFPA 101?
A: NFPA 101 permits a maximum 15-second delay in most occupancy types. Some editions and jurisdictions allow up to 30 seconds in limited cases. Always verify the permitted delay duration with your AHJ and local building code before installation.
Q: Does a delayed egress panic bar require a permit to install?
A: In most jurisdictions, yes. Installing a delayed egress device typically requires a permit, and the completed installation must be inspected and approved by the AHJ. Requirements vary by location — contact your local building department before beginning any installation.
Keyman's X-Escape Delayed Egress Panic Bar with Alarm Exit Device is designed for facility managers and security professionals who need proven, code-compliant exit control in behavioral health, memory care, retail, data center, and other high-security environments. For full product specifications, configuration options, and pricing, visit the product page or contact the Keyman team directly.
