Installing a brass mortise cylinder lock might seem like a complex task, but with the right tools and guidance, it's entirely manageable for most DIY enthusiasts. Unlike surface-mounted locks that attach to the door's face, mortise locks require a pocket (or mortise) to be cut into the door's edge, creating a more secure and professional installation.
Brass cylinder locks offer exceptional durability and classic aesthetic appeal, making them popular choices for both residential and commercial applications. The brass construction resists corrosion while providing smooth operation for years of reliable service. However, proper installation is crucial for ensuring both security and functionality.
This comprehensive guide walks you through each step of the installation process, from measuring and preparation to final adjustments. Whether you're upgrading existing hardware or installing locks on new doors, these detailed instructions will help you achieve professional results.
Before beginning your brass cylinder lock installation, gather all necessary tools and materials. Having everything ready prevents interruptions and ensures a smooth installation process.
Essential tools include a drill with various bit sizes, a mortise chisel set, a sharp utility knife, measuring tape, and a pencil for marking. You'll also need a mortise lock installation kit, which typically includes templates and specialized bits designed for this type of lock.
Safety equipment should include protective eyewear and work gloves. The brass cylinder lock kit should contain the lock body, cylinder, strike plate, and all necessary screws and hardware. Check the package contents against the manufacturer's list before starting.
Accurate measurements form the foundation of successful brass cylinder lock installation. Standard mortise locks typically require specific dimensions, though these can vary between manufacturers.
Measure the door thickness first, as this determines the appropriate lock body size. Most residential doors are 1¾ inches thick, while commercial doors often measure 1⅞ inches or more. The brass cylinder lock you've chosen should match your door thickness for proper fit and security.
Mark the lock's vertical position on the door edge. Standard installation places the lock center 36 to 38 inches above the floor, though you can adjust this based on user height preferences. Use a square to ensure your marks are perfectly perpendicular to the door edge.
The backset measurement determines how far the lock sits from the door edge. Common backsets are 2⅜ inches and 2¾ inches, though commercial applications might use different measurements. Mark this distance on both the door face and edge where the cylinder and lock body will be installed.
The mortise pocket houses the lock body and requires precise cutting for proper fit. This rectangular cavity must be cut into the door's edge with exact dimensions matching your brass cylinder lock specifications.
Start by drilling a series of overlapping holes within the marked area using a drill bit slightly smaller than the mortise width. This removes most of the material and provides a starting point for final shaping. Work slowly to maintain control and prevent tear-out on the door's far side.
Use mortise chisels to square the corners and smooth the pocket walls. The lock body should fit snugly without binding or excessive play. Test-fit the lock frequently during this process, removing small amounts of material as needed.
The pocket depth must match the lock body thickness exactly. Too shallow, and the lock won't sit flush with the door edge. Too deep, and the lock may not engage properly with the door frame. Take precise measurements and check your progress regularly.

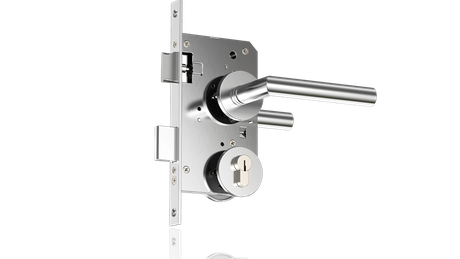

With the mortise pocket complete, you can install the main lock components. Begin by sliding the lock body into the mortise, ensuring it sits flush with the door edge. The lock should fit snugly without forcing.
Mark the screw holes for the lock body mounting plate on the door edge. Remove the lock temporarily and drill pilot holes for the mounting screws. These holes prevent the wood from splitting and ensure secure attachment.
Reinstall the lock body and secure it with the provided screws. Don't fully tighten them yet, as you may need minor adjustments during cylinder installation. The lock face should sit perfectly flush with the door edge.
Insert the brass cylinder from the door's face side, aligning it with the lock body mechanism. The cylinder should slide smoothly into position and connect with the internal lock mechanism. You'll feel or hear a slight click when proper engagement occurs.
The cylinder hole requires precise drilling to ensure smooth operation and proper security. Measure carefully from your reference marks and use a hole saw or spade bit sized specifically for your brass cylinder lock.
Drill slowly from one side until the bit point just breaks through, then complete the hole from the opposite side. This technique prevents splintering and ensures clean edges. The cylinder should fit snugly in this hole without excessive play.
If your lock includes handles or levers, additional holes may be required. Follow the manufacturer's template for exact placement and sizing. These holes must align perfectly with the internal mechanism for smooth operation.
Test-fit the cylinder in its hole before proceeding. It should slide in easily but without wobbling. Any binding or looseness at this stage will affect the lock's long-term performance and security.
The strike plate installation on the door frame requires equal precision to ensure proper lock engagement. Position the strike plate so it aligns perfectly with the installed lock mechanism.
Mark the strike plate outline on the door frame, then trace around the latch opening. This rectangular cavity must be cut to the exact depth of the strike plate thickness. Use the same drilling and chiseling technique employed for the door mortise.
The strike plate should sit flush with the door frame surface. Any protruding edges will prevent the door from closing properly, while recessed installation creates gaps that compromise security and weather sealing.
Secure the strike plate with the provided screws, ensuring it remains perfectly aligned with the lock mechanism. Test the door's closing action, making minor adjustments as needed for smooth operation.
With all components installed, thorough testing ensures reliable operation and proper security. Begin by operating the lock mechanism from both sides, checking for smooth action and complete engagement.
The brass cylinder should turn easily with the key, fully extending and retracting the latch without binding. Any stiffness or irregular operation indicates misalignment that needs correction before final tightening.
Check the door's closing and latching action. The latch should engage the strike plate cleanly without forcing. The door should close with normal pressure and lock securely when the mechanism is engaged.
Make any necessary adjustments to the strike plate position or lock body alignment. Minor tweaks at this stage prevent future problems and ensure optimal performance from your brass cylinder lock installation.
Proper maintenance keeps your brass cylinder lock operating smoothly for years. Regular lubrication with graphite lubricant prevents binding and extends component life. Avoid oil-based lubricants that attract dirt and debris.
Clean the brass surfaces periodically with appropriate metal cleaners to maintain their appearance and prevent corrosion. The natural patina that develops on brass over time actually provides additional protection against the elements.
Check mounting screws annually and tighten as needed. Building settling and regular use can gradually loosen connections, affecting lock security and operation.
While brass cylinder lock installation is achievable for skilled DIYers, certain situations warrant professional assistance. Complex door preparations, security system integration, or commercial applications often require specialized expertise.
Building codes may mandate professional installation for certain applications, particularly in commercial settings or where panic bar integration is required. Understanding these requirements before beginning your project prevents costly corrections later.
Consider your skill level honestly when deciding between DIY and professional installation. Proper mortise lock installation requires precision that affects both security and door operation. Mistakes can be expensive to correct and may compromise your property's security.
