Pivot Hinge vs Butt Hinge — Which One Should You Choose for Heavy Commercial Doors?

The short answer: Use a butt hinge for standard-weight commercial doors where simplicity and cost-efficiency matter. Use a pivot hinge — specifically an offset pivot hinge — for heavy, oversized, or architecturally prominent doors that demand higher load capacity, wider swing angles, and a cleaner visual profile.

Choosing the wrong hinge type for a commercial door is a costly mistake. It can lead to frame damage, premature wear, misalignment, and even code compliance issues. This guide breaks down the structural differences, load-bearing capabilities, opening angles, aesthetics, and ideal use cases for both hinge types — so you can make a confident, informed decision.

What Is a Butt Hinge?

A butt hinge is the most common type of commercial door hinge. It is mounted on the door frame and the side edge (butt) of the door, with the two leaves joining at a central pin. When the door closes, both leaves fold flush against each other — hence the name.

How it works: The butt hinge attaches to the door's side edge and the corresponding door frame. All rotational force and door weight transfer directly into the frame through the hinge leaves and screws.

Typical specifications (Keyman UL-listed butt hinge):

• Size: 5 × 4.5 × 4.8 mm, 4-ball bearing

• Material: Stainless steel (SUS 304)

• Certifications: UL Listed, 3-hour fire rated (UL 10C)

• Finishes: Satin stainless, polished stainless, PVD, polished brass, antique brass, antique copper, matte black

• Opening angle: Approximately 90–110°

• Applications: Wooden, metal, steel, interior, and exterior doors

Browse Keyman's UL-Listed Stainless Steel Butt Hinges →

What Is a Pivot Hinge?

A pivot hinge — and specifically an offset pivot hinge — operates on an entirely different mechanical principle. Rather than mounting on the door's side edge and frame, the pivot hinge installs at the top and bottom of the door, allowing the door to rotate around a vertical axis set back from its edge.

How it works: The top pivot mounts into the door header; the bottom pivot anchors to the floor. The door's weight transfers vertically downward into the floor structure — not laterally into the door frame. This fundamentally changes how load is distributed, making pivot hinges far more capable of supporting heavy doors.

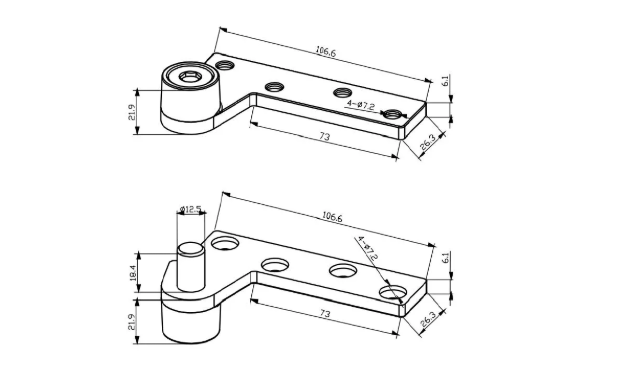

Typical specifications (Keyman KPH10 Offset Pivot Hinge Set):

• Offset: 19 mm (3/4")

• Maximum door load: 600 lbs

• Material: Stainless steel (SUS 304)

• Opening angle: Greater than 180°

• Vertical adjustment: 3/16"

• Minimum door thickness: 1 3/4"

• Handed: Non-handed (suits both left- and right-handed doors)

• Note: Doors over 60" in height require an intermediate pivot for every additional 30" of height

Browse Keyman's Offset Pivot Hinge Set (KPH10) →

Pivot Hinge vs Butt Hinge: Side-by-Side Comparison

How Do the Two Hinges Differ Structurally?

The structural difference between a butt hinge and a pivot hinge is the single most important factor when selecting hardware for a commercial door.

Butt hinge structure: Both leaves mount to the door edge and the frame face. All the weight of the door is borne by the hinge leaves and their fasteners, which pull against the door frame. On heavier doors, this lateral stress can cause frame distortion, hinge sag, and fastener pullout over time.

Pivot hinge structure: The top pivot fits into the door header; the bottom pivot anchors directly to the floor. The door's weight travels straight down through the pivot pin into the floor — bypassing the door frame entirely. This vertical load path is far more structurally efficient for heavy doors, reducing stress on the surrounding frame and extending the hardware's service life.

Load-Bearing Capacity: Which Hinge Handles Heavy Commercial Doors?

Pivot hinges are significantly better suited to heavy commercial doors. The Keyman KPH10 offset pivot hinge supports doors up to 600 lbs, distributing that load vertically into the floor rather than laterally into the frame.

Butt hinges, by contrast, transfer all door weight and swing forces directly through the frame. For doors exceeding standard commercial weights — such as lead-lined doors, oversized glass-framed doors, or solid hardwood entrance doors — butt hinges may lead to premature wear, frame damage, or misalignment.

Important installation note for pivot hinges: Doors taller than 60" (1,524 mm) require an intermediate pivot for every additional 30" (762 mm) of height. Keyman offers a dedicated Heavy Duty Intermediate Hand Pivot to support these applications.

Opening Angle Comparison

Opening angle directly affects traffic flow, accessibility, and usability — particularly in high-traffic commercial settings.

• Butt hinge: Typically limited to approximately 90–110° of swing. Sufficient for most standard office, retail, and interior commercial doors.

• Offset pivot hinge: Engineered to open beyond 180°, allowing the door to swing completely clear of the frame opening. This is critical in wide-clearance applications such as hospital corridors, loading areas, or monumental building entrances where unrestricted access is required.

The Keyman KPH10's 3/4" (19 mm) offset is what enables the wider-than-180° swing. The pivot axis sits away from the door edge, creating clearance that a flush-mounted butt hinge physically cannot achieve.

Aesthetic Comparison: Which Hinge Looks Better?

Pivot hinges offer a substantially cleaner, more refined appearance. Because the hardware mounts at the top and bottom of the door — not on the visible side edge — there are no exposed knuckles or leaf plates along the door stile. The result is a seamless, minimalist look that suits contemporary architectural styles, high-end lobbies, and monumental entrance doors.

Butt hinges are visible on the door edge. While a high-quality stainless steel butt hinge (such as the Keyman UL-listed model with polished or satin finishes) can look professional and clean, it will always be more visually present than a pivot hinge. For projects where aesthetics are a priority — hospitality, corporate headquarters, institutional buildings — this distinction often drives the final hardware selection.

Decision Matrix: Which Hinge Is Right for Your Door?

Use this quick-reference guide to select the correct hinge type based on your specific application:

Choose a butt hinge when:

• The door is standard weight (under approximately 200 lbs)

• Opening angle of 90–110° is sufficient

• Budget is a primary consideration

• Fire-rated certification is required (UL 10C, 3-hour rated)

• The door is wooden, metal, steel, interior, or standard exterior

Choose an offset pivot hinge when:

• The door is heavy or ultra-heavy (up to 600 lbs)

• Maximum opening clearance (>180°) is required

• The installation involves lead-lined doors or oversized commercial doors

• A concealed, architectural aesthetic is a priority

• The door height exceeds 60" (use with intermediate pivot for taller doors)

• The project demands long-term durability in high-traffic environments

Frequently Asked Questions

Q: Can I use a pivot hinge on a standard-weight door?
A: Yes, a pivot hinge can be used on lighter doors, but it is generally overspecified for standard applications. Butt hinges are more cost-effective and easier to install for doors that do not require the load capacity or wide opening angle of a pivot system.

Q: What is the difference between an offset pivot hinge and a center-hung pivot hinge?
A: A center-hung pivot hinge rotates around the door's centerline, meaning the door swings equally in both directions (common in saloon-style doors). An offset pivot hinge, like the Keyman KPH10, positions the pivot axis 19 mm (3/4") from the door face, allowing the door to swing more than 180° in one direction while maintaining a closer clearance on the hinge side.

Q: Do pivot hinges require special door preparation?
A: Yes. Pivot hinges require a floor anchor for the bottom pivot and a header mount at the top. Door edges must also be beveled 3 mm (1/8") in 51 mm (2") to accommodate the offset geometry. Keyman's KPH10 set includes both the top header mount (KPH10 Top) and bottom base mount (KPH10 Btm) for a complete, compatible installation.

Q: Are butt hinges fire rated?
A: Keyman's UL-listed stainless steel butt hinge is tested to all requirements of UL 10C with a 3-hour fire rating, making it compliant for use on fire-rated door assemblies.

Q: How many pivot hinges do I need for a tall commercial door?
A: For doors up to 60" (1,524 mm) in height, a standard top and bottom pivot set (such as the Keyman KPH10) is sufficient. For every additional 30" (762 mm) of height beyond 60", one intermediate pivot is required. Keyman's Heavy Duty Intermediate Hand Pivot is engineered for this purpose.

Keyman Commercial Hinge Solutions

Keyman manufactures a full range of commercial-grade hinge hardware for every door type and load requirement:

• Offset Pivot Hinge Set – KPH10: 600 lb capacity, >180° opening angle, SUS 304 stainless steel. Ideal for heavy, oversized commercial and institutional doors.

• UL-Listed Stainless Steel Butt Hinge: 5-inch, 4-ball bearing, 3-hour fire rated. Suitable for standard commercial wood, metal, and steel doors.

• Heavy Duty Intermediate Hand Pivot: Required for pivot-hung doors exceeding 60" in height.

• Heavy Duty Electrified Middle Pivot Hinge: For access-controlled pivot door installations.
