FA3 BK

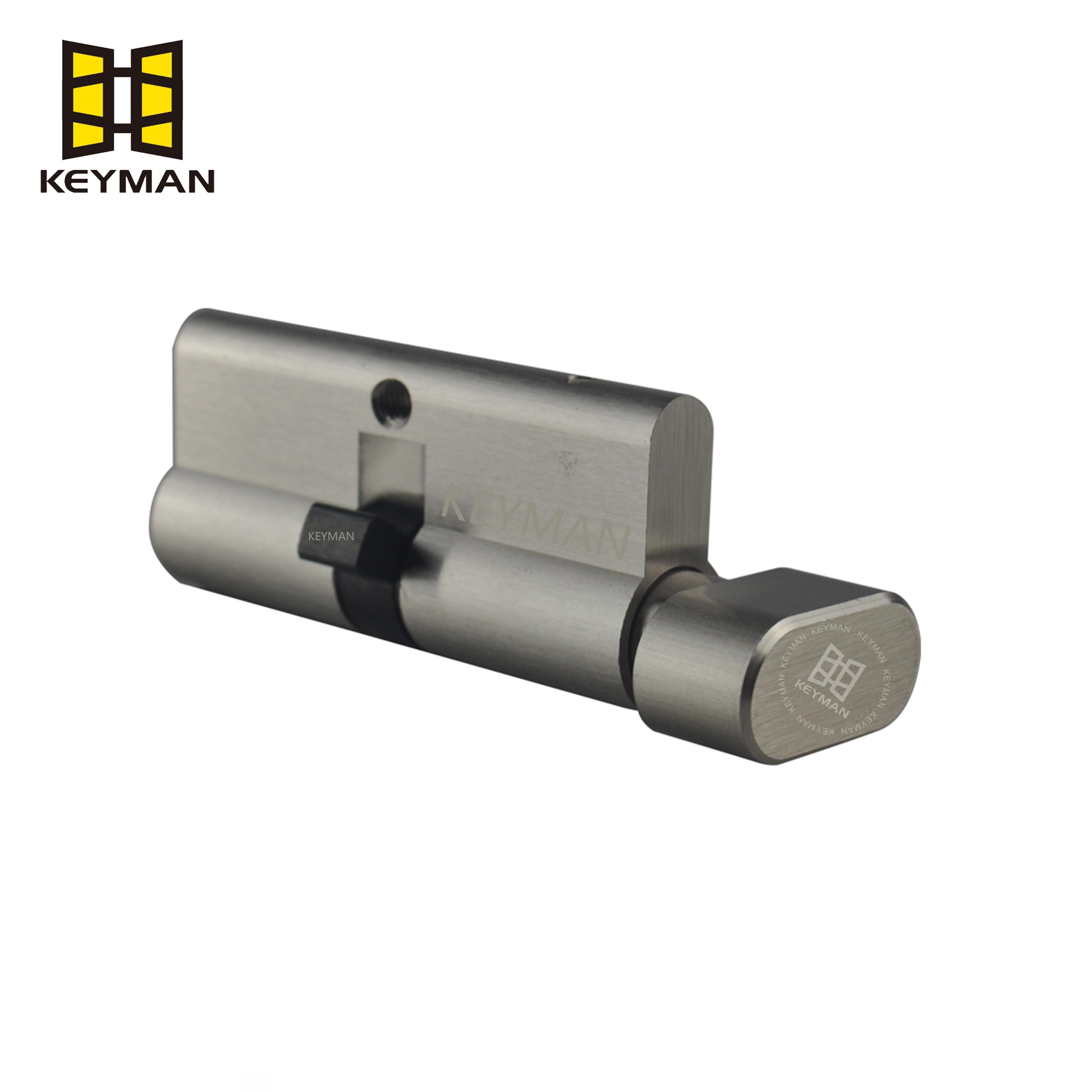

Supplier Satin Nickel Without Key European Double Lock Cylinder
KEYMAN Euro Single-Point Lock (Keyless Version) is a door/window locking system specifically designed for convenient operation. Featuring a purely mechanical structure, it enables locking/unlocking without the need for keys. This product complies with European EN standards (e.g., EN 12209) and is suitable for applications where high security is not required but frequent access is necessary.
Key Features
Keyless Design
Operates the bolt directly via a rotary knob
Built-in self-resetting spring mechanism for automatic locking upon closure
Standardized Interface
Euro lock body specifications (55/60/65mm backset)
Compatible with common Euro-profile systems
Security Structure
Brass bolt + brass housing
One-sided knob operation: Only one end is operable (with a knob), while the other end is sealed or fixed internally
Dimension
| H | A | B | G | Remark |
90 | 40 | 40 | 10 | 6pin 7pin |
| 80 | 35 | 35 | 10 | 6pin |
| 75 | 32.5 | 32.5 | 10 | 6pin |
| 70 | 30 | 30 | 10 | 6pin |
| 65 | 27.5 | 27.5 | 10 | 6pin |
| 62 | 26 | 26 | 10 | 5pin |
| 60 | 25 | 25 | 10 | 5pin |
| 50 | 20 | 20 | 10 | 4pin |
| 45 | 17.5 | 17.5 | 10 | 3pin |
| 45 | 30 | 5 | 10 | 5pin |
| 40 | 25 | 5 | 10 | 5pin |
Speciification
| Spec. | Description |
| Item. | Euro Single Cylinder BK |
| Material | Quality Solid Brass |
| Keys | no keys (oneside thumbturn) |
| Key Management Function | / |
| Pins | 6pins standard (70mm length as standard) |
| Finish | Satin Nickle, Polish Brass, Chrome Plate, Matt Black, Pearl Nickle |
| Accessories | 1pc fastening screw |
| Suitable for | Wooden Door, Metal Door, Interior Door, Outer Door, Swing Door |
