M701 Passage

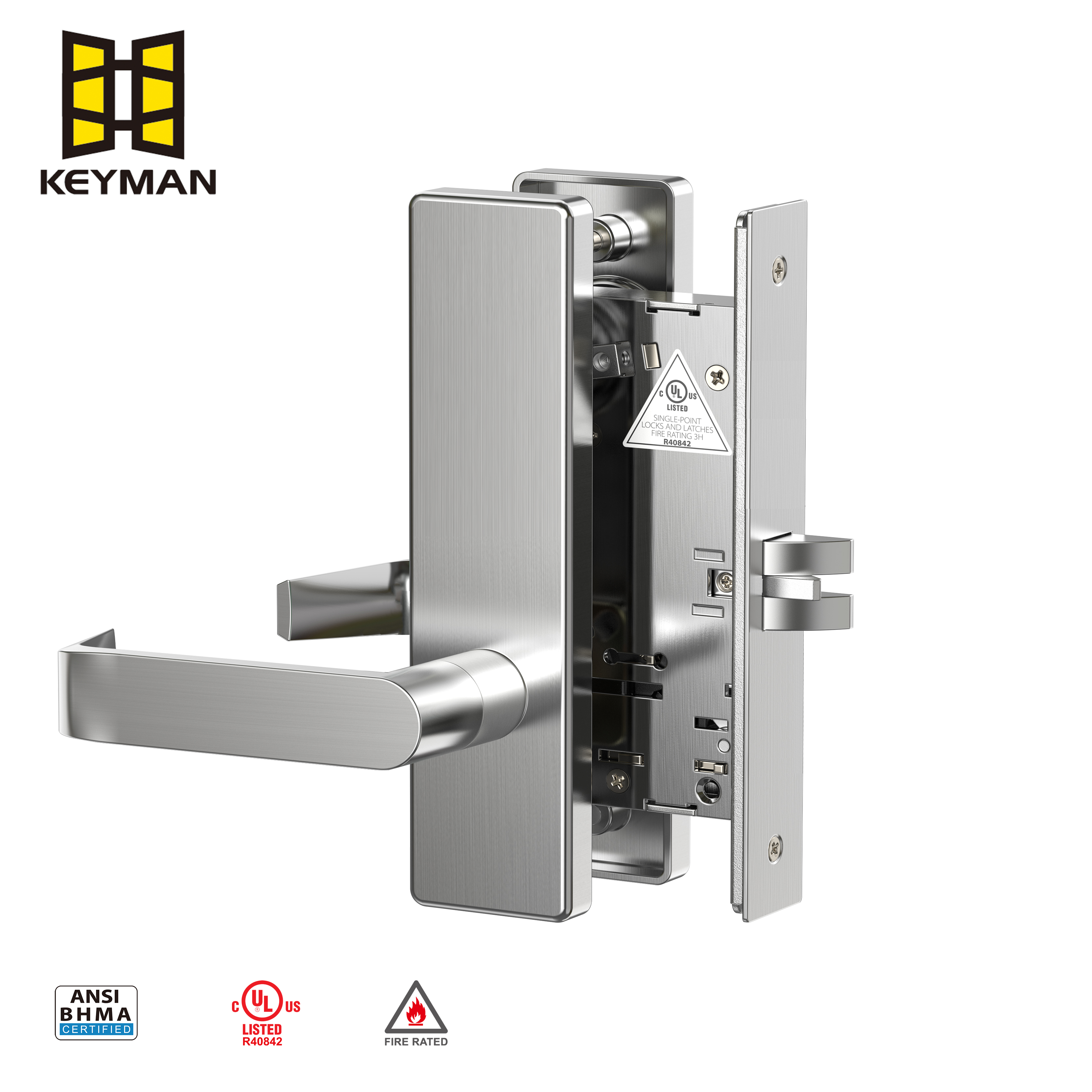

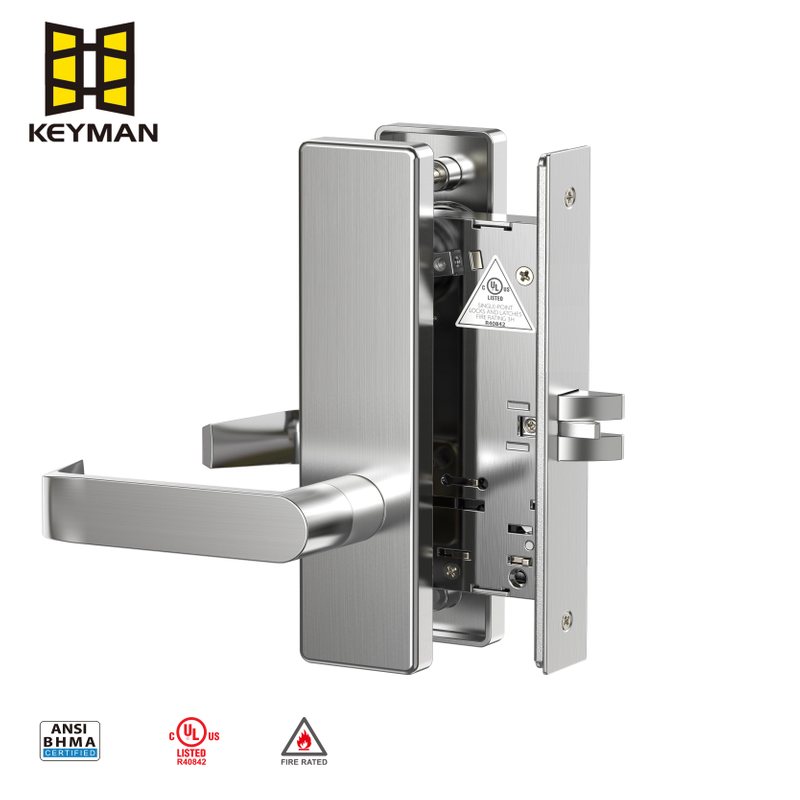

Hevy Duty Mortise F01 Passage Commercial Door Handle Lock M701
KEYMAN ANSI Mortise Lock is a type of mortise lock designed to meet ANSI , BHMA and UL standards for durability, security, and performance. Mortise locks are commonly used in commercial and high-security residential applications due to their robustness and reliability.
ANSI Mortise Lock Escutcheon Type refers to the trim or decorative plate that surrounds the keyhole and lever/knob on a mortise lock. Escutcheons enhance aesthetics, protect the door from wear, and sometimes provide additional security features.
Commercial buildings (offices, hospitals, schools)
High-end residential properties
Hotels & hospitality (with master key systems)
M701 Function:
Latchbolt retracted by lever/ knob from either side at all times.
Speciification
| Spec. | Description |
| Item. | ANSI UL Mortise Lock Escutcheon Type |
| Fuction / Ansi No. | F01 Passage |
| Cylinder | / |
| Door Thickness | 1-3/4" (45mm) |
| Lockset Surface | SUS304 |
| Finish (Color) | 630 , 32D, Satin Stainless |
| Fire Rated | Yes |
| Certificate | ANSI Grade 1, Mortise Lock / UL |
| Standard | ANSI/BHMA A156.13-2017 for MORTISE LOCKS & LATCHES |
