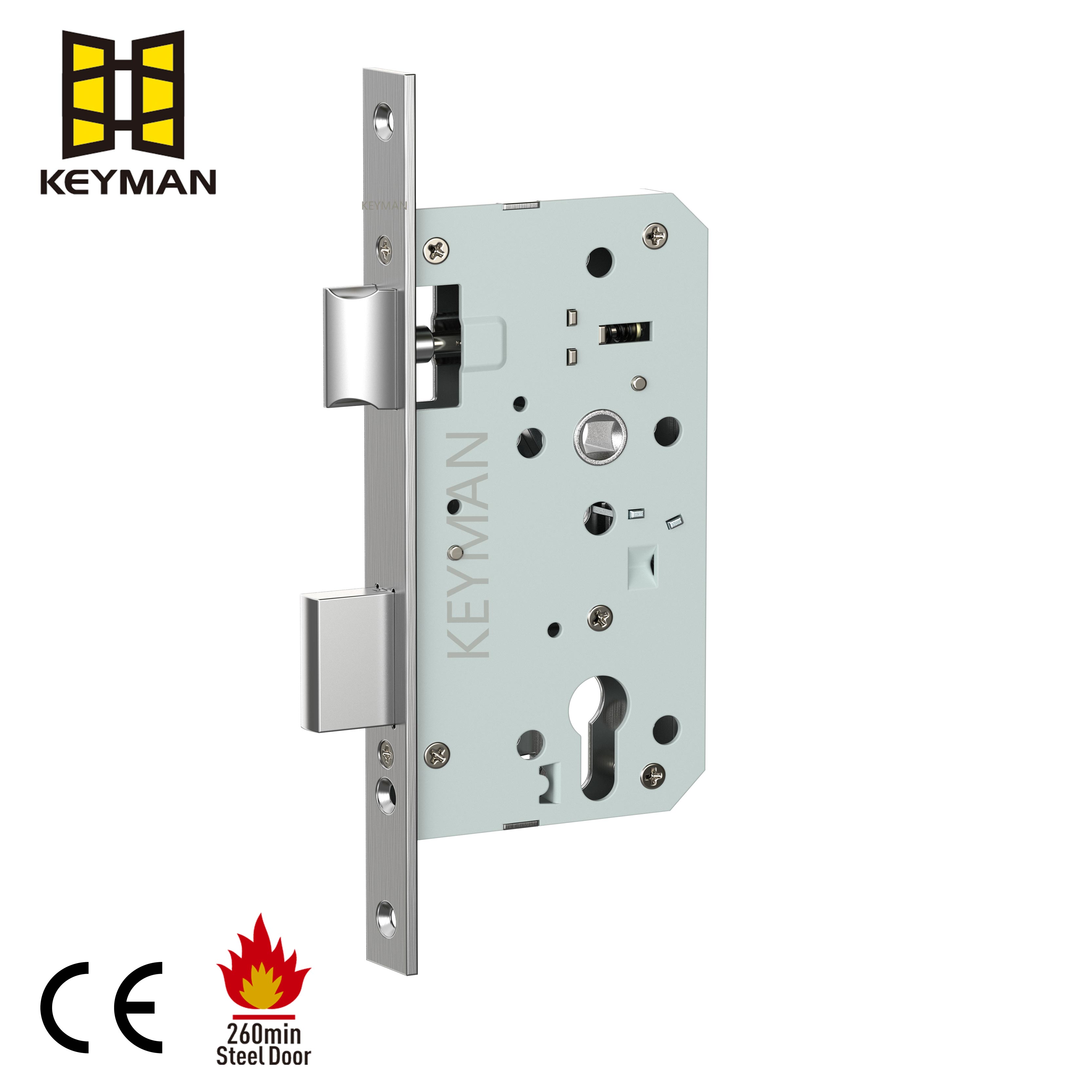

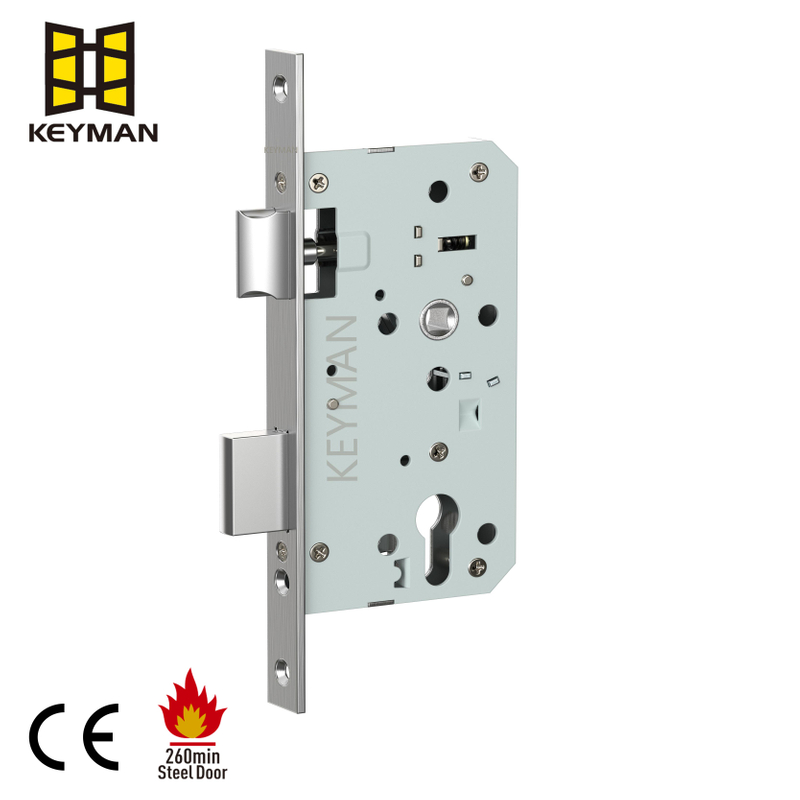

Euro Factory Direct CE Fire Proof High Security Mortise Sash Main Door Lock M508
KEYMAN Euro Mortise Lock is a European-standard locking device, featuring a replaceable cylindrical core as its key component, widely used in doors, windows, and security gates. Compact and highly secure, it supports various key types (such as cross, dimple, magnetic, etc.) and incorporates anti-drill and anti-pry designs. The cylinder length is customizable, offering strong compatibility and easy installation and maintenance. Some high-end models integrate smart features like fingerprint or electronic recognition. Compliance with EN certification ensures durability and anti-tamper performance, making it a common security solution for both residential and commercial applications.
Our Euro mortise locks are CE EN12209 certified, 260 mins fire rated and widely use in commercial projects.
M508 Entry/ Office Function:
With latch bolt and auxiliary latch.
With cylinder.
Turning the handle from either side of the door retreats the latch bolt.
Outside the door key telescopic deadbolt lock, the key can be retracted latch bolt. Turn knob inside door to retractable deadbolt to lock.
No escape function.
Speciification
| Spec. | Description |
| Item. | CE EN 12209 GRADE 3 Euro Mortise Lock |
| Fuction | M508 Entry / Office |
| Surface Material | SUS304 |
| Finish | Satin Stainless |
| Lockset Surface | SUS304 |
| Backset | 60 mm |
| Cylinder Center to Handle Center | 72 mm |
| Technical Specification | - LIFE CYCLE: ≧200,000 times - FORCE ON LATCH BOLT 120 N. - FIRE RATED 260 minutes - MAX DOOR WEIGHT 200K - MAX DOOR CLOSE FORCE 15 |
