M501 Passage 6072

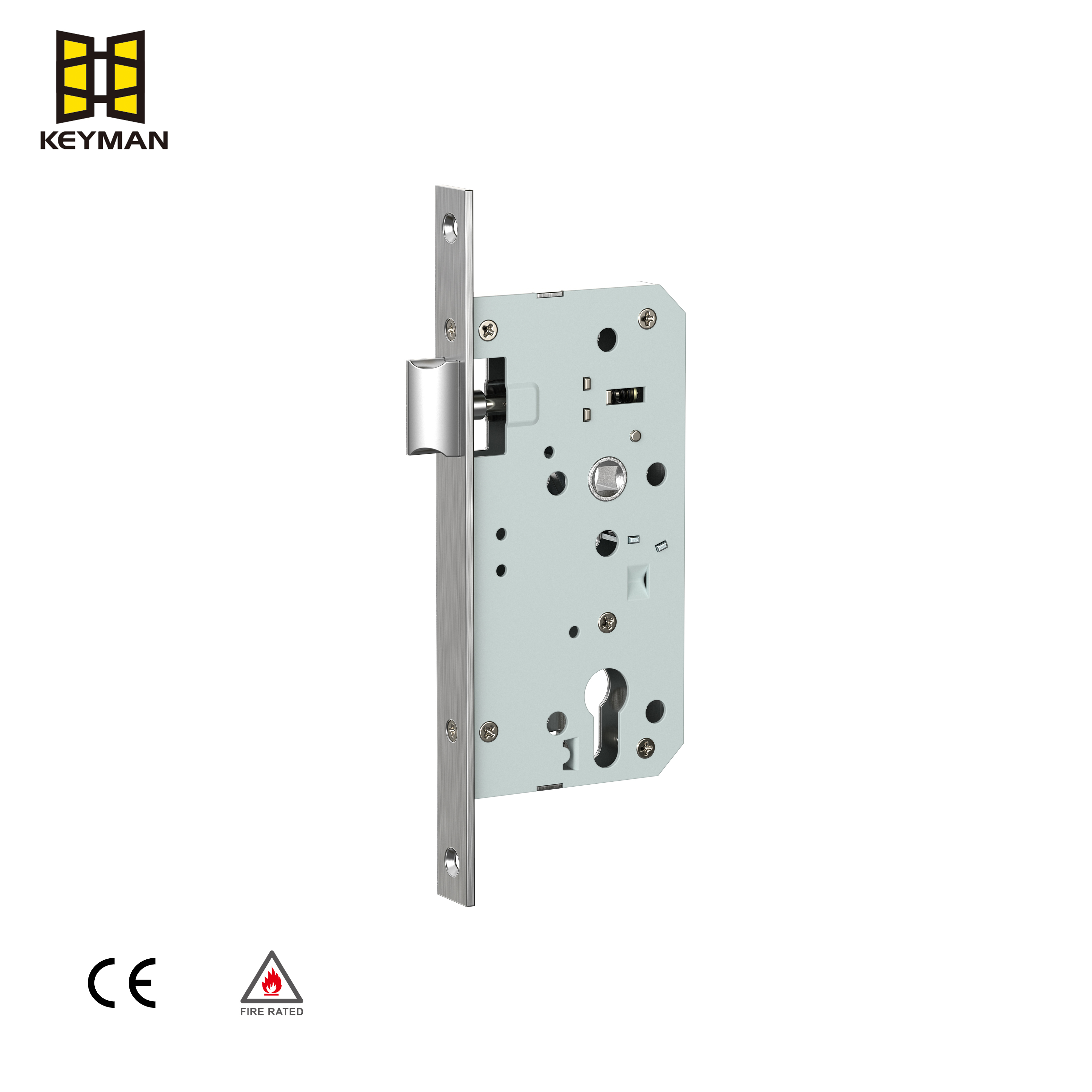

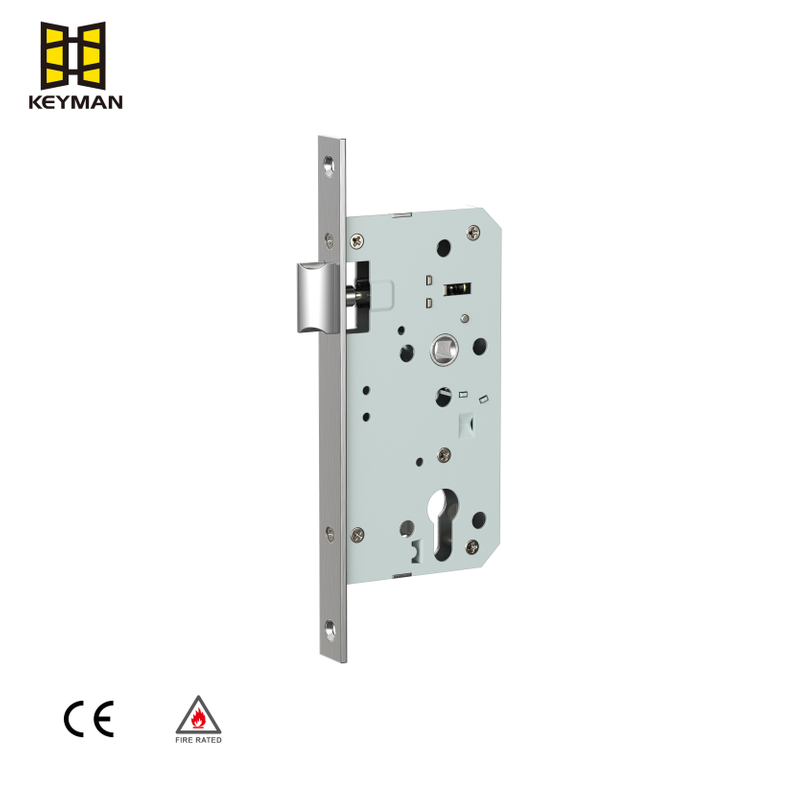

En 12209 Stainless Steel Latch Lock Mortise Outside Door Lock For Passage Door M501
KEYMAN Euro Mortise Lock is a European-standard locking device, featuring a replaceable cylindrical core as its key component, widely used in doors, windows, and security gates. Compact and highly secure, it supports various key types (such as cross, dimple, magnetic, etc.) and incorporates anti-drill and anti-pry designs. The cylinder length is customizable, offering strong compatibility and easy installation and maintenance. Some high-end models integrate smart features like fingerprint or electronic recognition. Compliance with EN certification ensures durability and anti-tamper performance, making it a common security solution for both residential and commercial applications.
Our Euro mortise locks are CE EN12209 certified, 260 mins fire rated and widely use in commercial projects.
M501 Passage Function:
Only latch bolt.
No cylinder.
Turning the handle from either side of the door retreats the latch bolt.
Speciification
| Spec. | Description |
| Item. | CE EN 12209 GRADE 3 Euro Mortise Lock |
| Fuction | M501 Passage |
| Surface Material | SUS304 |
| Finish | Satin Stainless |
| Lockset Surface | SUS304 |

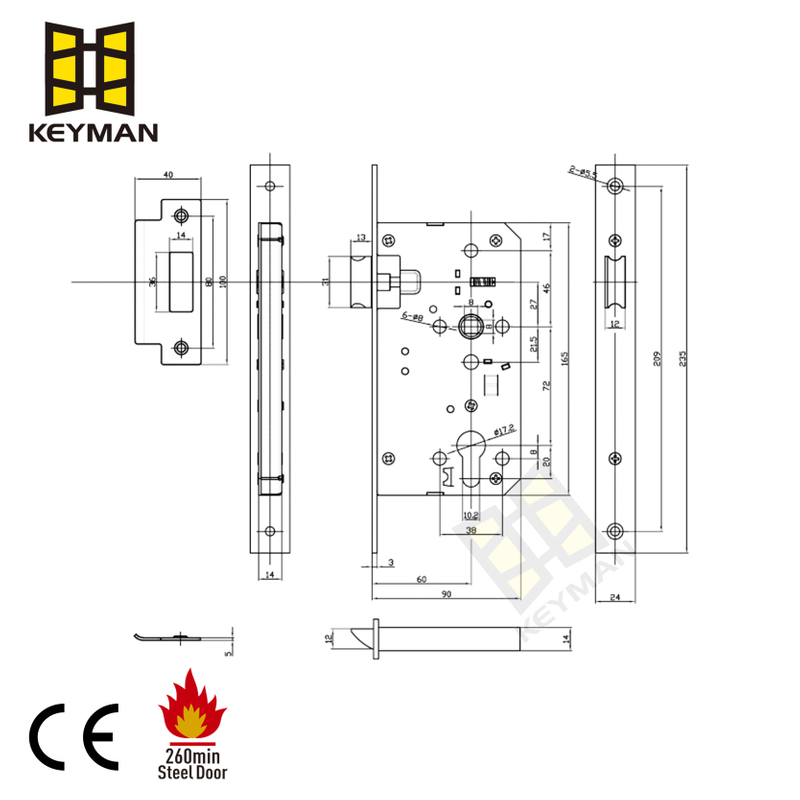

| Backset | 60 mm |
| Cylinder Center to Handle Center | 72 mm |
| Technical Specification | - LIFE CYCLE: ≧200,000 times - FORCE ON LATCH BOLT 120 N. - FIRE RATED 260 minutes - MAX DOOR WEIGHT 200K - MAX DOOR CLOSE FORCE 15 |
En 12209 Stainless Steel Latch Lock Mortise Outside Door Lock For Passage Door M501
KEYMAN Euro Mortise Lock is a European-standard locking device, featuring a replaceable cylindrical core as its key component, widely used in doors, windows, and security gates. Compact and highly secure, it supports various key types (such as cross, dimple, magnetic, etc.) and incorporates anti-drill and anti-pry designs. The cylinder length is customizable, offering strong compatibility and easy installation and maintenance. Some high-end models integrate smart features like fingerprint or electronic recognition. Compliance with EN certification ensures durability and anti-tamper performance, making it a common security solution for both residential and commercial applications.
Our Euro mortise locks are CE EN12209 certified, 260 mins fire rated and widely use in commercial projects.
M501 Passage Function:
Only latch bolt.
No cylinder.
Turning the handle from either side of the door retreats the latch bolt.
Speciification
| Spec. | Description |
| Item. | CE EN 12209 GRADE 3 Euro Mortise Lock |
| Fuction | M501 Passage |
| Surface Material | SUS304 |
| Finish | Satin Stainless |
| Lockset Surface | SUS304 |
| Backset | 60 mm |
| Cylinder Center to Handle Center | 72 mm |
| Technical Specification | - LIFE CYCLE: ≧200,000 times - FORCE ON LATCH BOLT 120 N. - FIRE RATED 260 minutes - MAX DOOR WEIGHT 200K - MAX DOOR CLOSE FORCE 15 |
