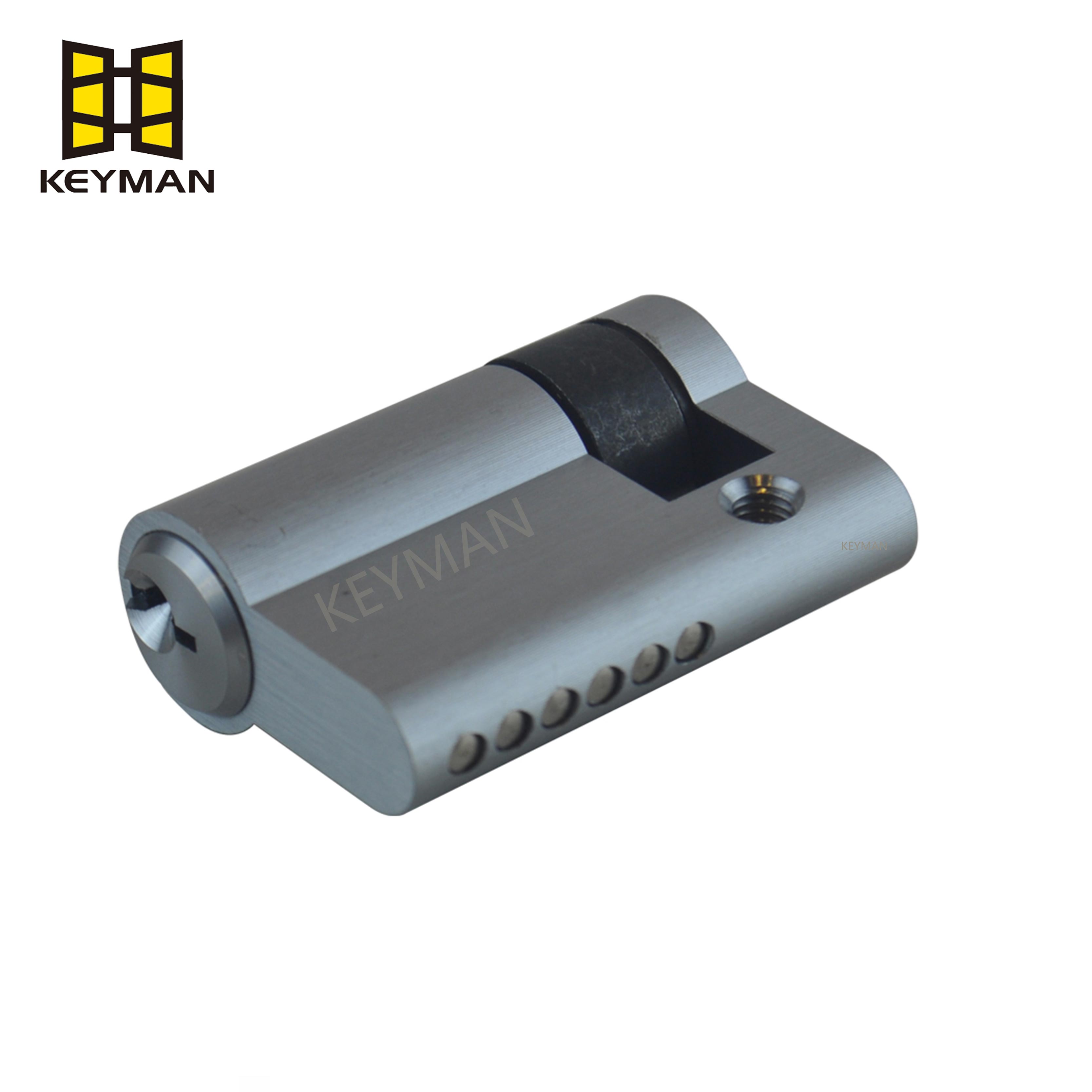

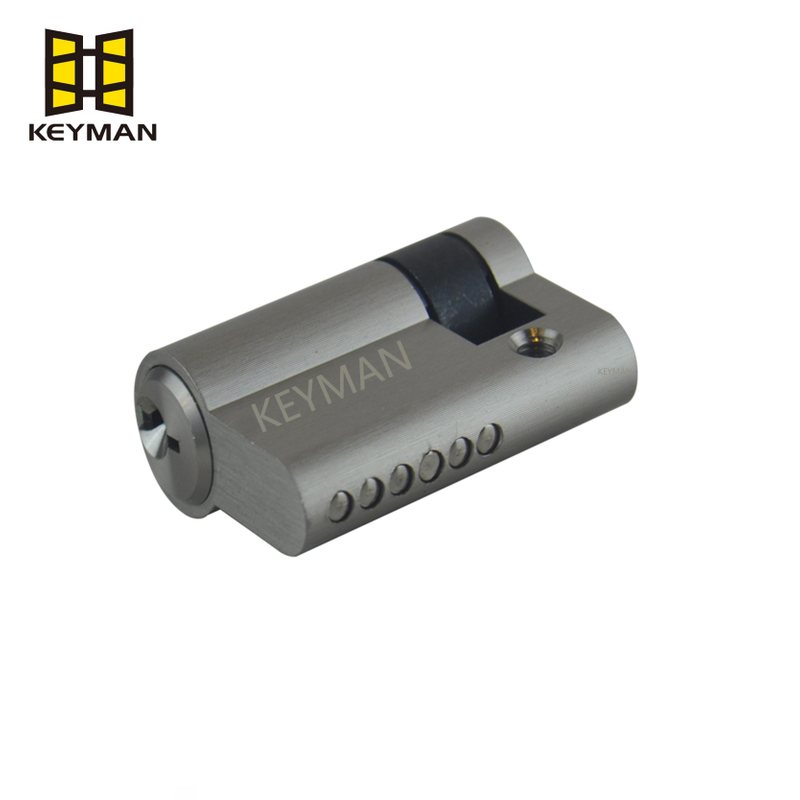

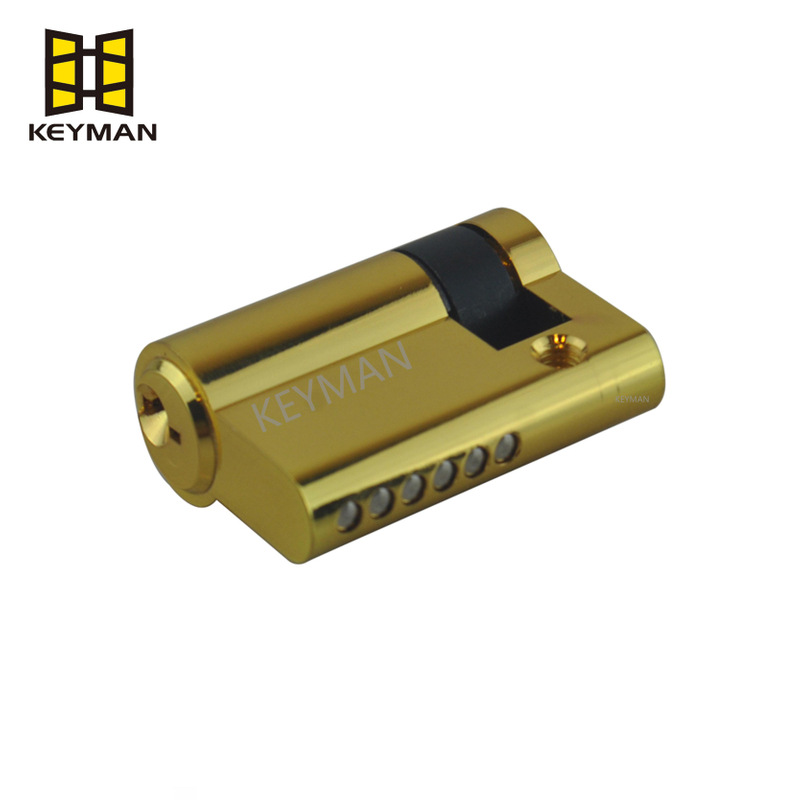

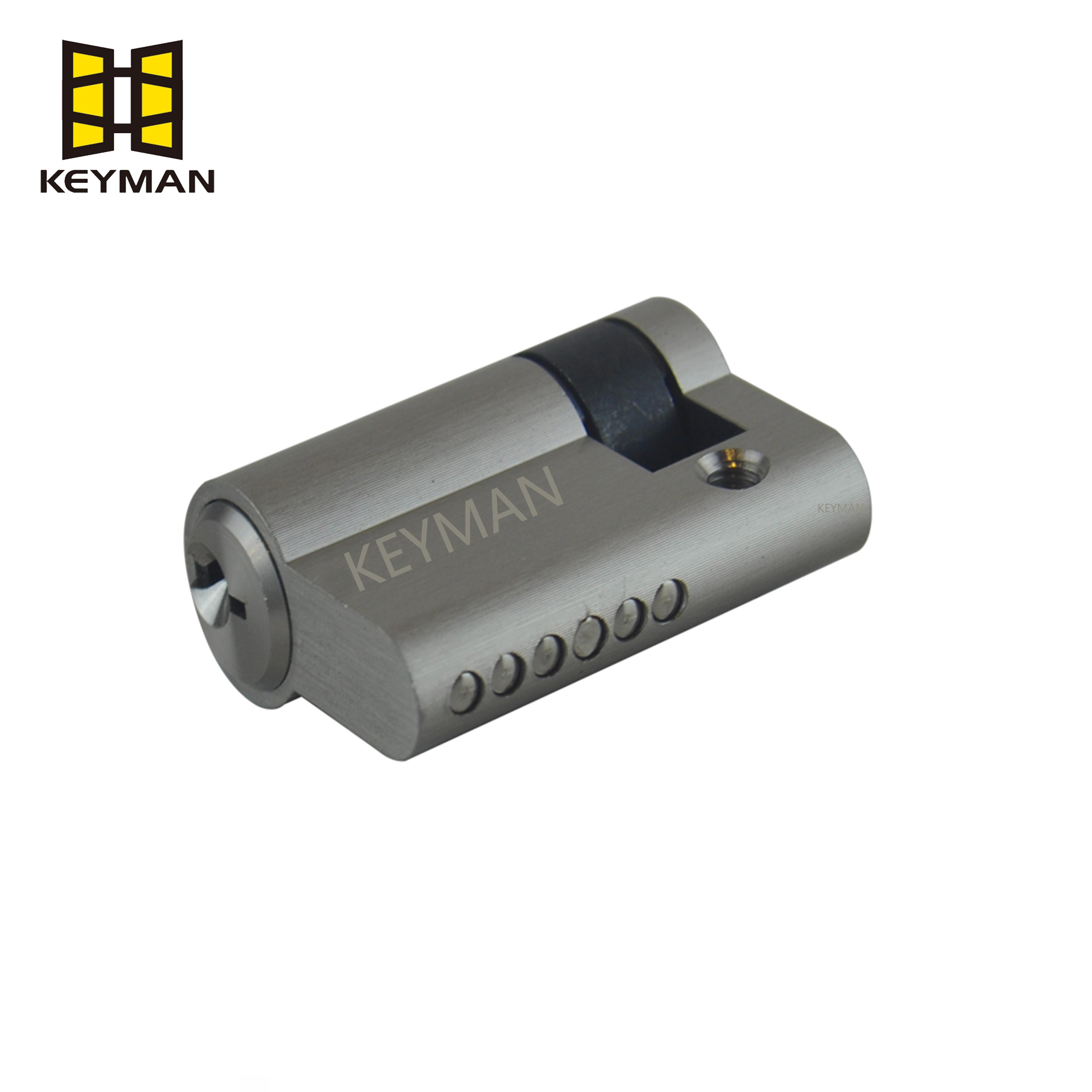

KEYMAN Euro Half Cylinder is a standardized lock cylinder commonly used in European-style doors, windows, and cabinets. Unlike a full Euro cylinder (which allows key operation from both sides), the half cylinder features a key-operated end on one side and a fixed, non-operable end on the other.
Key Features:
Single-Sided Access: Ideal for applications like drawers, interior doors, or windows where key access is only needed from one side.
Standardized Dimensions: Complies with DIN/EN standards, ensuring compatibility with Euro-profile locks.
Security Levels: Available in different security grades (basic to high-security, e.g., EN 1303-certified for anti-pick & anti-drill resistance).
Material Options: Typically made of brass or hardened steel for durability.

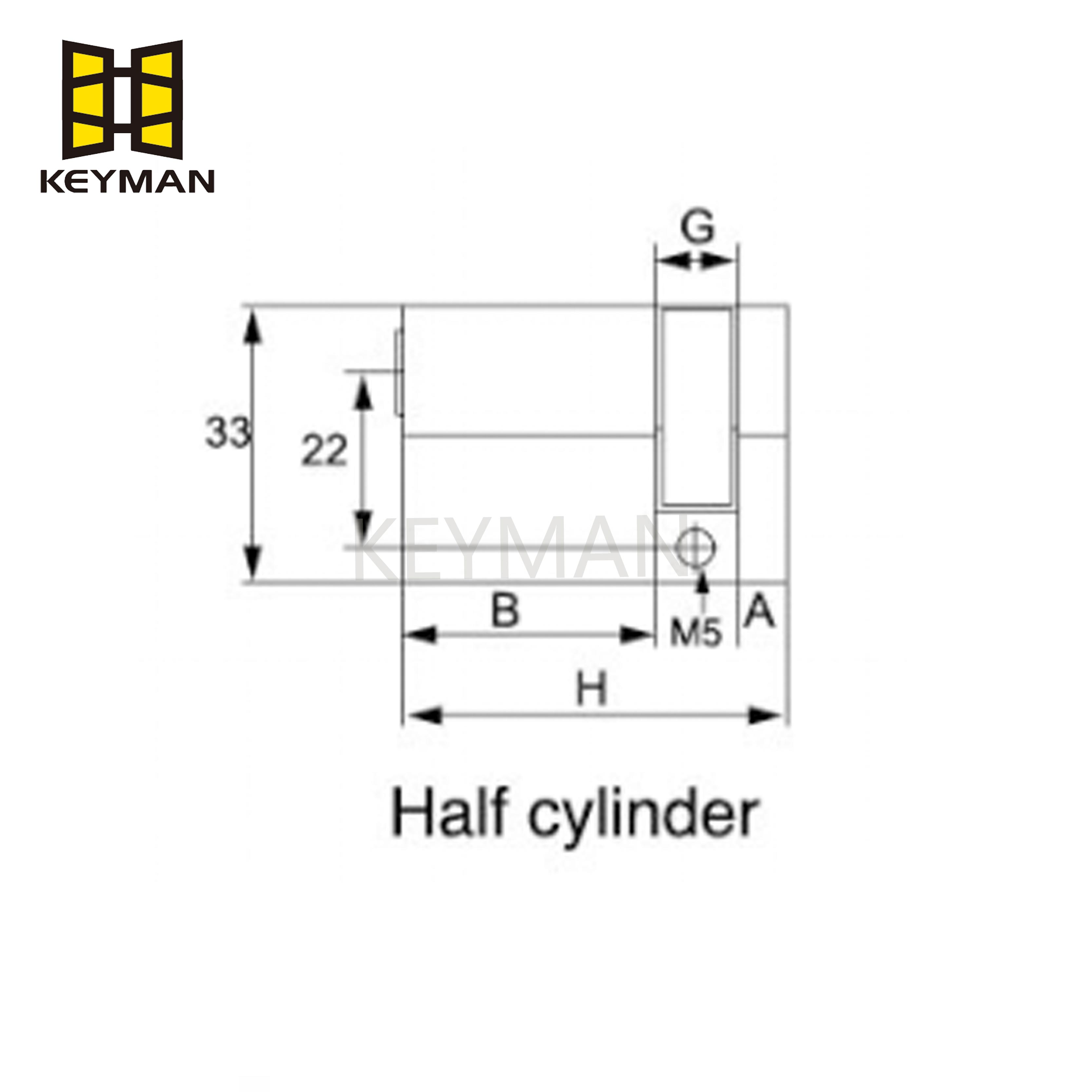

Dimension
H
A
B
G
Remark
90
40
40
10
6pin 7pin
80
35
35
10
6pin
75
32.5
32.5
10
6pin
70
30
30
10
6pin
65
27.5
27.5
10
6pin
62
26
26
10
5pin
60
25
25
10
5pin
50
20
20
10
4pin
45
17.5
17.5
10
3pin
45
30
5
10
5pin
40
25
5
10
5pin
Speciification
Spec.
Description
Item.
Euro Half Cylinder
Material
Quality Solid Brass
Keys
3 Brass Keys
Key Management Function
Master Key, Grand Master Key, Construction Key, Keyed Alike
Pins
5pins standard (45mm length as standard)
Finish
Satin Nickle, Polish Brass, Chrome Plate, Matt Black, Pearl Nickle
Accessories
3 normal Keys, 1pc fastening screw
Suitable for
Wooden Door, Metal Door, Interior Door, Outer Door, Swing Door
