M717 Deadbolt

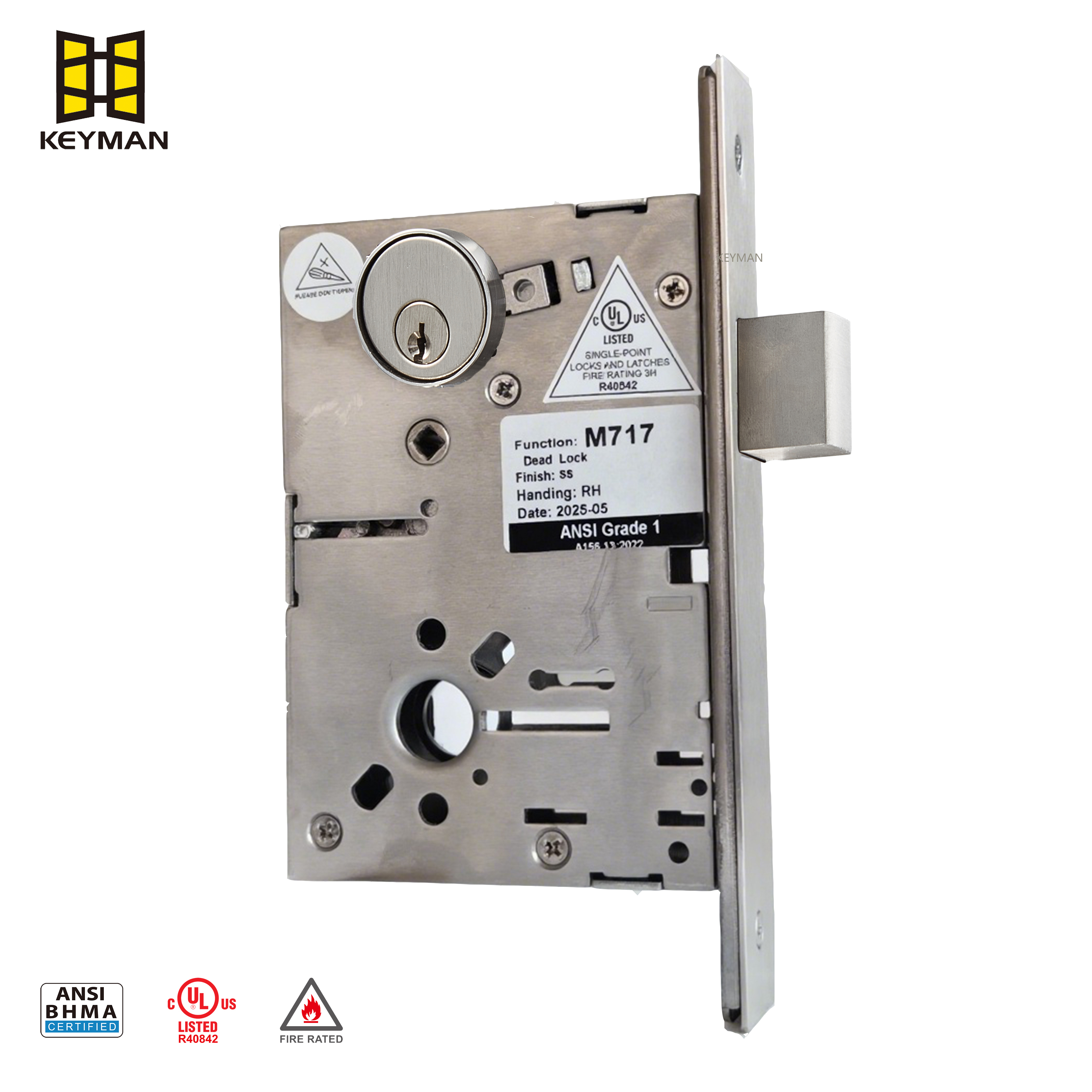

ANSI Stainless Steel Deadbolt Mortise Lock M717
ANSI Grade I American Heavy Duty Entrance Mortise Lock M701As a leading manufacturer of door hardware, Keyman provides reliable and durable locking solutions for enhanced security worldwide.
Our high quality ANSI mortise locks are both ANSI grade 1 and UL Fire Rated 3 hour certified, and widely use in commercial projects. The American mortise lock is made of stainless steel and has various functions .
Speciification
| Spec. | Description |
| Item. | ANSI UL Mortise Lock Sectional Type |
| Fuction / Ansi No. | F17 Deadbolt |
| Cylinder | Keyman: FC729A - Length: 1-1/8" (29mm) - Solid Brass - Keyway: Schlage "C" - 6 pin, 3pcs key Standard: Key Different |
| Door Thickness | 1-3/4" (45mm) |
| Lockset Surface | SUS304 |
| Finish (Color) | 630 , 32D, Satin Stainless |
| Fire Rated | Yes |
| Certificate | ANSI Grade 1, Mortise Lock / UL |
| Standard | ANSI/BHMA A156.13-2017 for MORTISE LOCKS & LATCHES |
The American Standard mortise lock is manufactured with high-standard design and craftsmanship, specifically engineered for high-end residential, commercial, and hotel applications. It integrates security, durability, and aesthetics, with its core locking function achieved through precision mechanical structures to ensure firm door closure, effectively preventing prying and impact, providing users with reliable access control security.
Core Locking Function Advantages
High-Strength Single Deadbolt Locking
Features a thickened solid steel deadbolt (optional lengths: 10-15mm) with a hardness rating of HRC55+, offering impact resistance and anti-sawing protection. When locked, the deadbolt fully engages with the strike plate, eliminating elastic play.
The absence of a latch bolt design prevents closure inconsistencies caused by latch wear, ensuring superior long-term stability.
Rigid Locking Mechanism
The door must be actively locked/unlocked using a key or handle after closing (no auto-locking bolt), eliminating technical lock-picking vulnerabilities and significantly enhancing anti-tailgating security.
Optional dual-key control (requiring keys for both interior and exterior operation), ideal for high-security areas such as server rooms and warehouses.
Precision Compatibility with Heavy-Duty Doors
Designed specifically for metal and solid wood doors, the deadbolt engages with the strike plate at a depth of ≥8mm when locked. Paired with an anti-vibration base, it withstands strong external impacts without deformation.
Applications
Apartments/Villa entry doors
Office/Meeting room privacy doors
Hotel guest room security doors
Materials & Craftsmanship
Lock body constructed from high-strength zinc alloy/stainless steel with anti-corrosion electroplating.
Deadbolt hardness ≥HRC50, resistant to wear and sawing.
Available in multiple finishes (brushed nickel, antique bronze, black chrome, etc.), balancing functionality and aesthetics.
Why Choose This Lock?
The American Standard mortise lock prioritizes locking performance, seamlessly merging mechanical precision with user needs, making it the ideal choice for those pursuing security and quality.
