M701 Passage

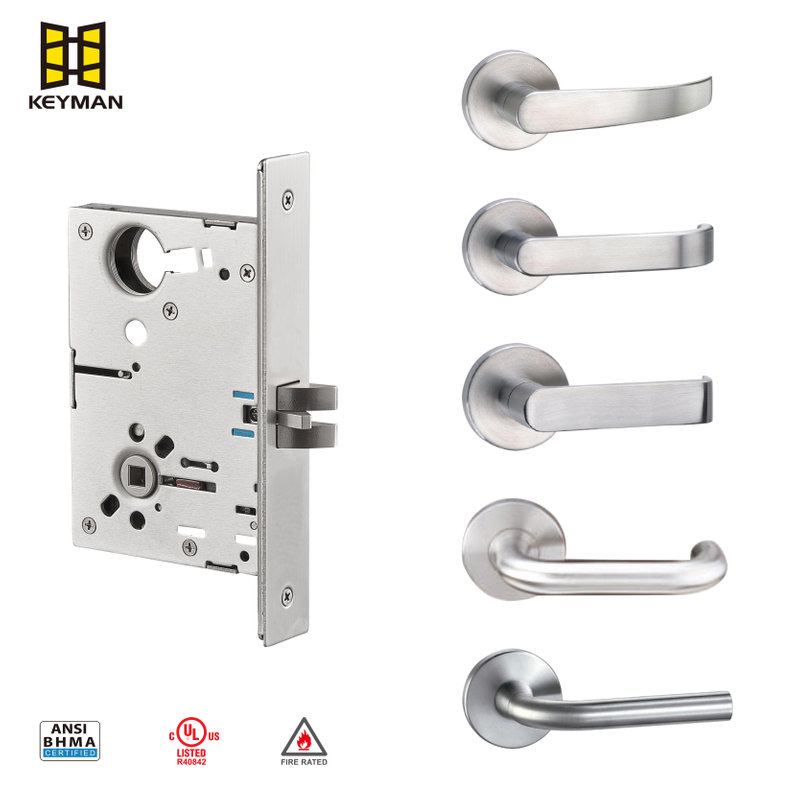

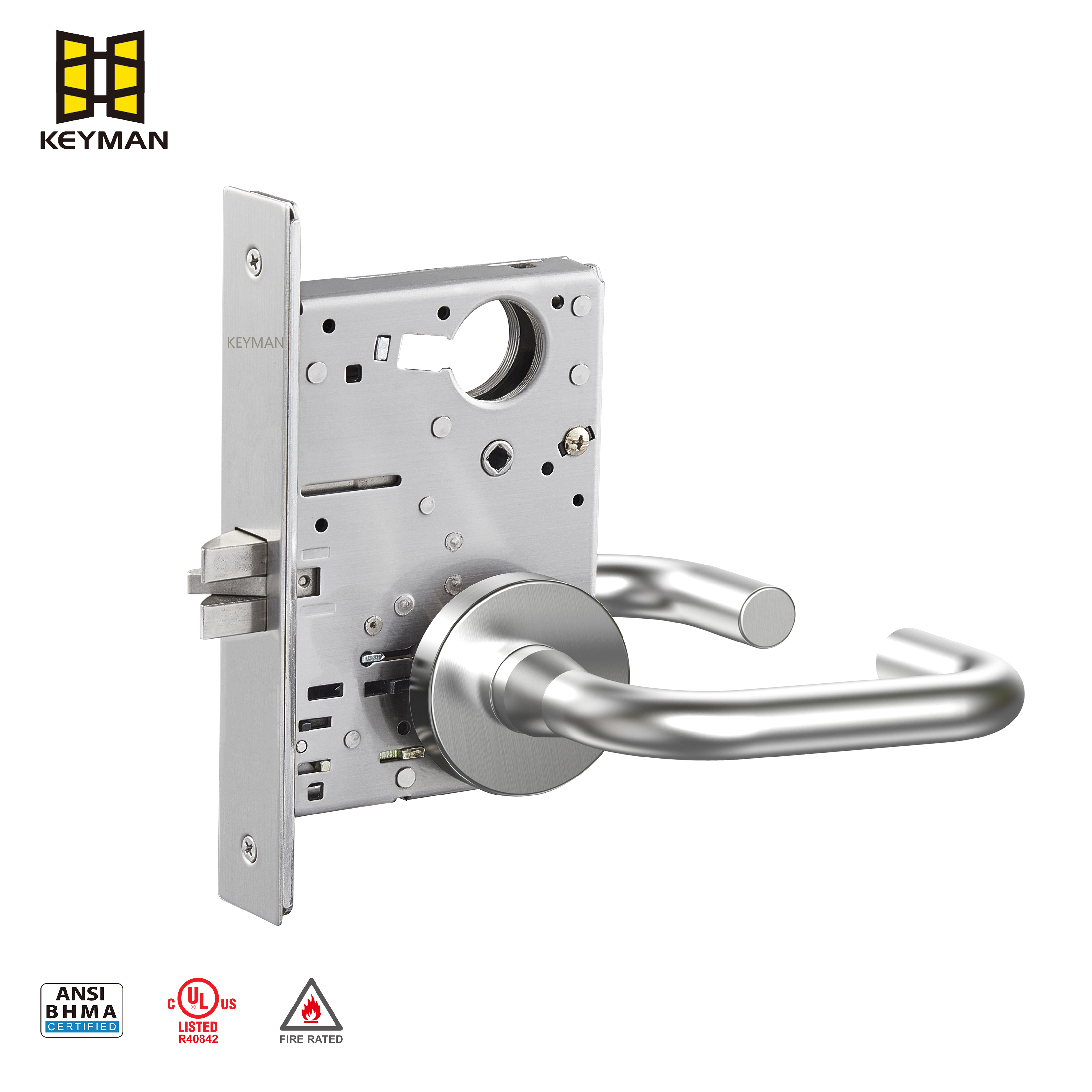

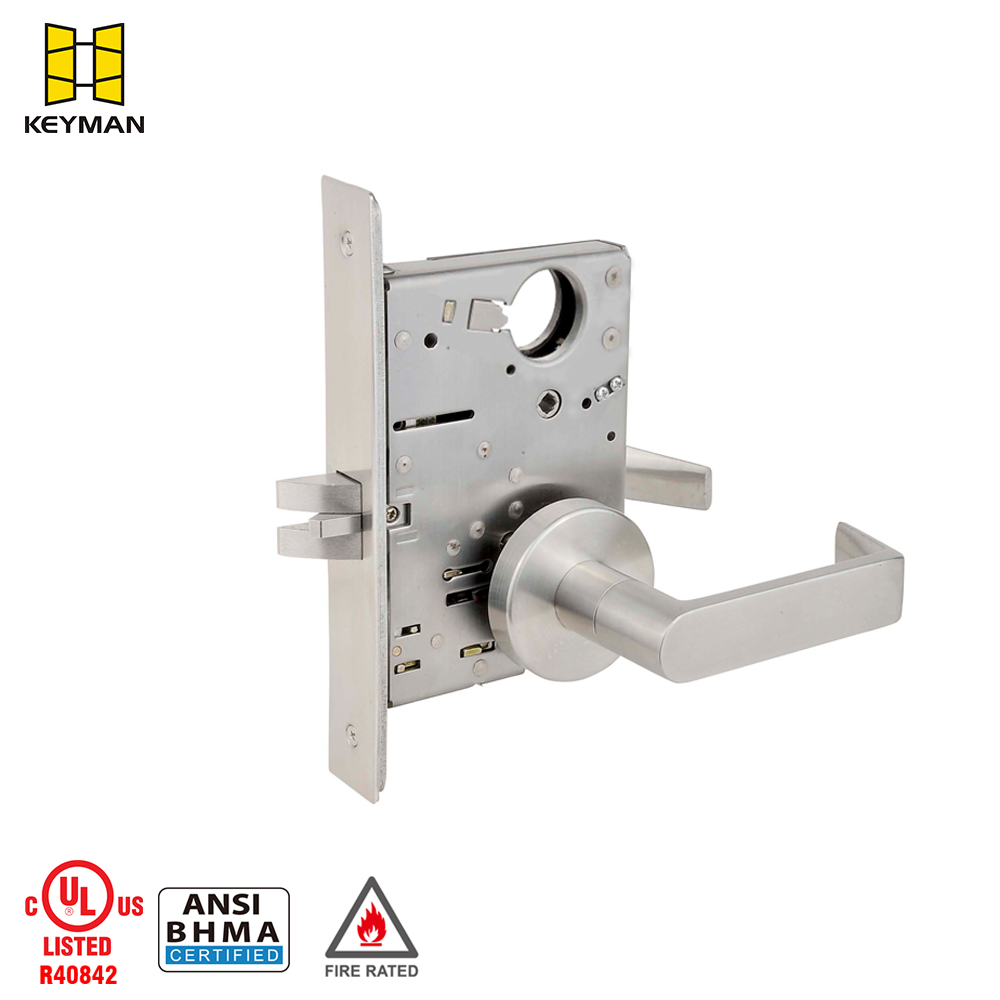

ANSI Grade I American Heavy Duty Entrance Mortise Lock M701
ANSI Grade I American Heavy Duty Entrance Mortise Lock M701As a leading manufacturer of door hardware, Keyman provides reliable and durable locking solutions for enhanced security worldwide.
Our high quality ANSI mortise locks are both ANSI grade 1 and UL Fire Rated 3 hour certified, and widely use in commercial projects. The American mortise lock is made of stainless steel and has various functions .
Speciification
| Spec. | Description |
| Item. | ANSI UL Mortise Lock Sectional Type |
| Fuction / Ansi No. | F01 Passage |
| Cylinder | / |
| Door Thickness | 1-3/4" (45mm) |
| Lockset Surface | SUS304 |
| Finish (Color) | 630 , 32D, Satin Stainless |
| Fire Rated | Yes |
| Certificate | ANSI Grade 1, Mortise Lock / UL |
| Standard | ANSI/BHMA A156.13-2017 for MORTISE LOCKS & LATCHES |
