M7D0

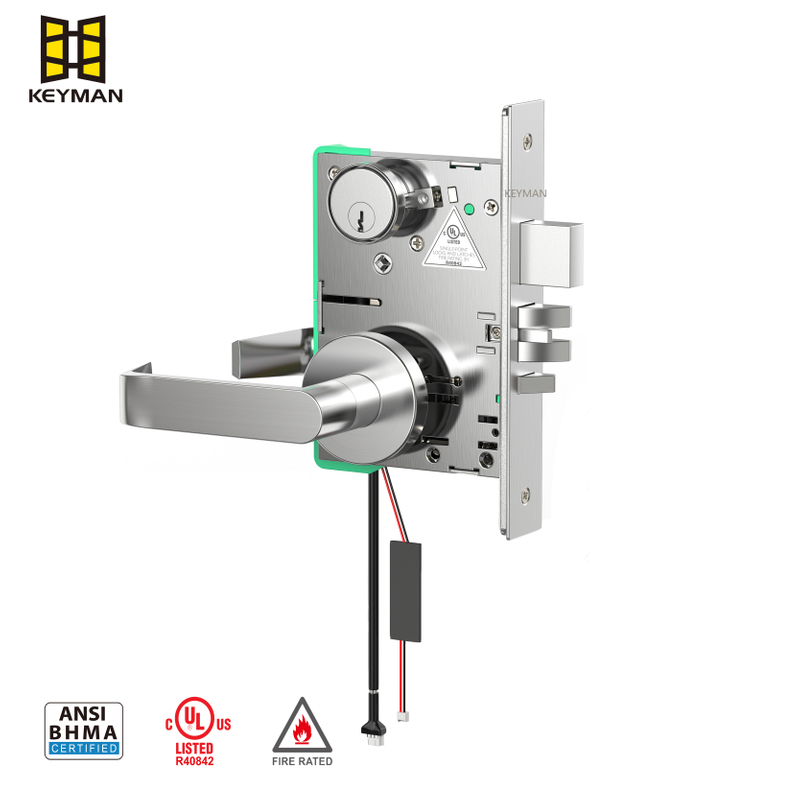

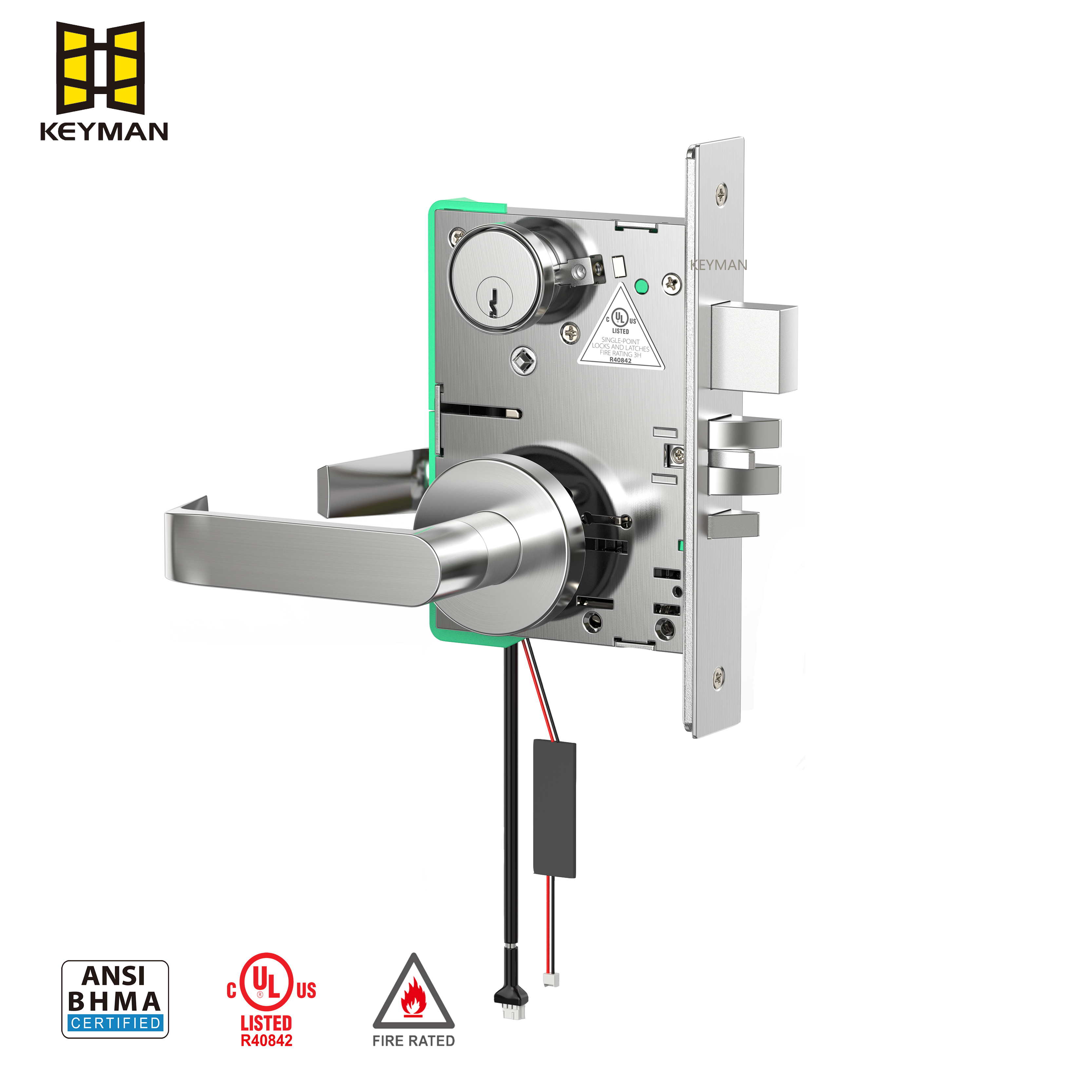

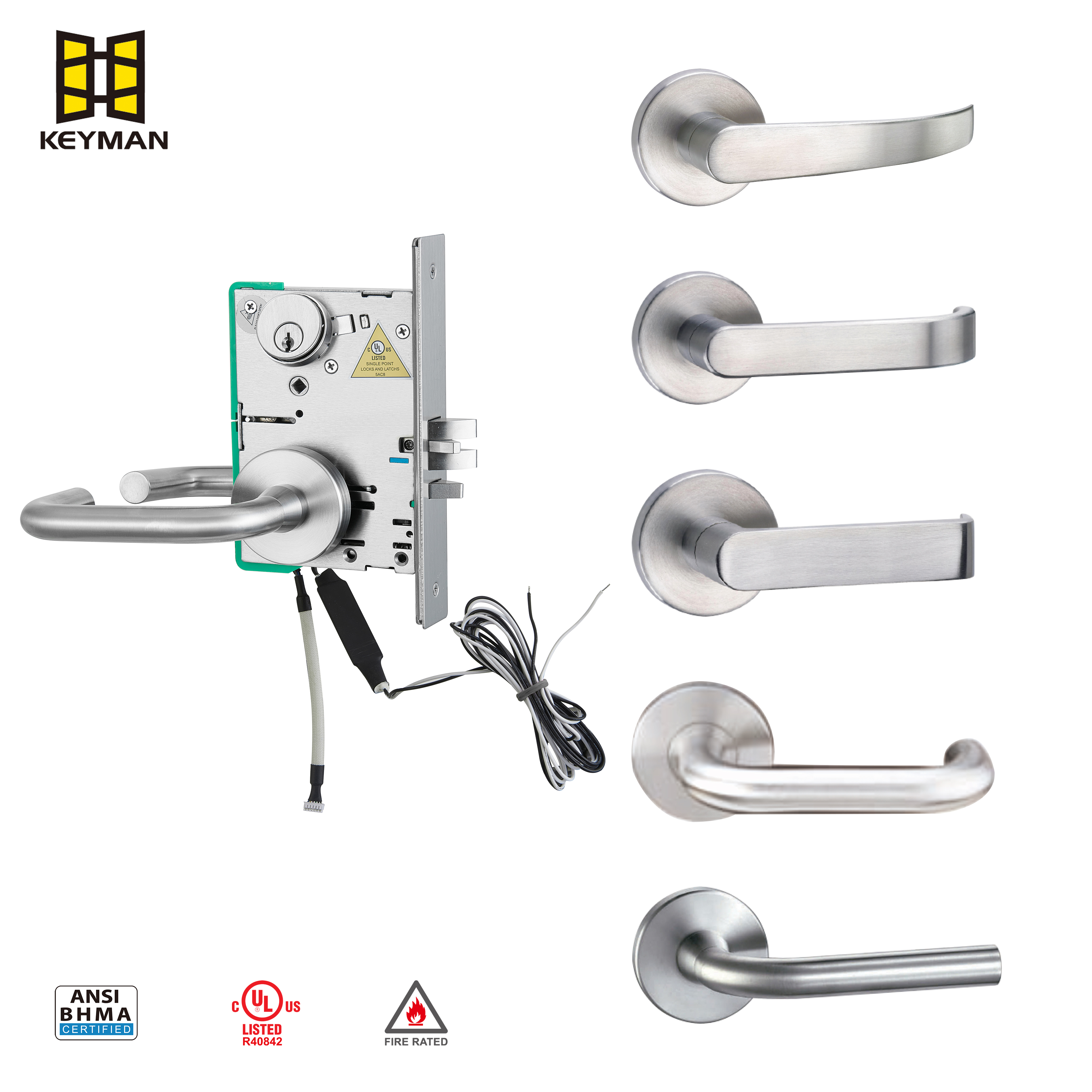

12/24V Electrified Solenoid Mortise Lock Fail Safe Fail Secure M7D0
ANSI Grade I American Heavy Duty Entrance Mortise Lock M701As a leading manufacturer of door hardware, Keyman provides reliable and durable locking solutions for enhanced security worldwide.
Our high quality ANSI mortise locks are both ANSI grade 1 and UL Fire Rated 3 hour certified, and widely use in commercial projects. The American mortise lock is made of stainless steel and has various functions .
Speciification
| Spec. | Description |
| Item. | Electrified Solenoid Mortise Lock (12/24 adjustable) |
| Fuction / Ansi No. | M7D0 |
| Cylinder | Keyman: FC729A - Length: 1-1/8" (29mm) - Solid Brass - Keyway: Schlage "C" - 6 pin, 3pcs key Standard: Key Different |
| Door Thickness | 1-3/4" (45mm) |
| Lockset Surface | SUS304 |
| Finish (Color) | 630 , 32D, Satin Stainless |
| Fire Rated | Yes |
| Certificate | ANSI Grade 1, Mortise Lock / UL |
| Standard | ANSI/BHMA A156.13-2017 for MORTISE LOCKS & LATCHES |
Universal imput Voltage--- accepts 12 or 24V DC for installation flexibility
User Seclectable fail safe /fail secure --- changing
Low maximun current draw --- allow multiple lock on a single power supply
Low holding current --- produces minimal heat, eliminating "hot levers" in electrically locking applications and allowing reliable operation even in wood doors.
All --- new switch monitors the inside lever with enhances detection lever that balances security with lever sensitivity
| Voltage | Starting Current | Holding Current | Starting Current | Holding Current |
| 12VDC ~ 24VDC | 2Amp at 24V, DC | 0.05Amp at 24V, DC | 1Amp at 12V, DC | 0.121Amp at 12V, DC |
Operating Temp:
Max 151°F(66°C) Min.-31°F(-35°C)
All monitoring switches rated at:2 Amp @ 30 VDC
3 Amp @ 125 VAC
