Choosing the right commercial door hinge depends on four core factors: door weight, door height, usage frequency, and fire protection requirements. The four main types used in commercial applications are butt hinges, pivot hinges, continuous hinges, and concealed hinges — each suited to different environments and performance demands.
This guide breaks down each hinge type, outlines the key selection criteria, and maps common hinge choices to real-world applications such as schools, hospitals, hotels, office buildings, and industrial facilities.
Commercial door hinges fall into four primary categories. Each type distributes door weight differently, performs at a different cycle rating, and suits specific architectural or regulatory contexts.

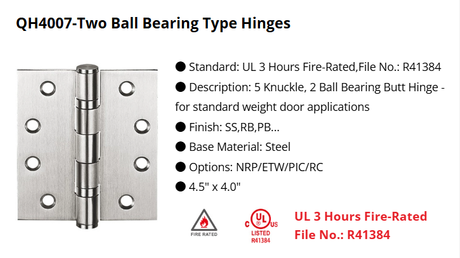

What it is: A butt hinge is the most widely used commercial door hinge. It consists of two rectangular leaves joined by a pin, mortised flush into both the door edge and the frame.
Core features:
Available in standard (4.5" × 4.5") and heavy-duty sizes
Supplied in steel, stainless steel, and brass finishes
UL-listed versions available for fire-rated door assemblies
Typically installed in sets of 1.5 hinges per 30" of door height (minimum 3 per door)
Best suited for: Standard commercial doors in office buildings, retail spaces, and light-to-medium traffic corridors. UL-listed butt hinges are the go-to choice for hinges for fire-rated doors in North American markets where ANSI/BHMA compliance is required.
When to choose a butt hinge: Butt hinges are better suited for projects where cost efficiency, wide finish availability, and straightforward installation are priorities. They work best when door weight falls below 400 lbs and cycle counts remain moderate.

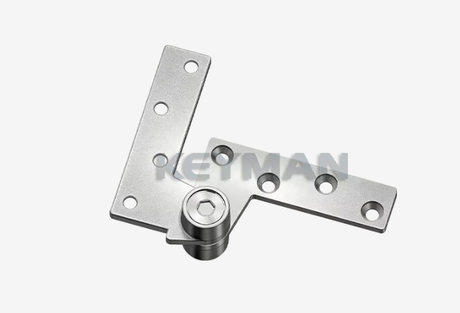

What it is: A pivot hinge mounts at the top and bottom of a door rather than along its edge, transferring load directly to the floor and head frame instead of the door frame.
Core features:
Top pivot, bottom pivot, and intermediate (center) pivot configurations
Supports very heavy doors — often 500 lbs or more
Offset pivot designs allow for wider clear openings
Electrified pivot hinge models support access control wiring through the pivot point
Heavy-duty intermediate pivot hinges add mid-door support for tall or oversized panels
Best suited for: High-traffic, heavy-duty commercial environments including hospital corridors, hotel lobbies, and monumental architectural entries. Pivot hinges excel on frameless glass doors, oversized wood doors, and doors exceeding standard frame load tolerances.
When to choose a pivot hinge: Pivot hinges are better suited for teams specifying very heavy or tall doors where butt hinges would overstress the frame, or where a cleaner architectural reveal is preferred. Electrified pivot hinge models are ideal when power transfer to the door leaf is required.
What it is: A continuous hinge — also called a piano hinge — runs the full height of the door, distributing load evenly along the entire door edge rather than concentrating stress at two or three points.
Core features:
Full-length design eliminates stress concentration points
Extremely high cycle rating — suited for doors opened hundreds of times per day
Narrow or wide throw configurations available
Aluminum and stainless steel options for corrosion-prone environments
Some models are UL-listed for fire-rated door assemblies
Best suited for: Very high-traffic applications such as school corridors, hospital ward doors, airport gates, and public restroom doors. Continuous hinges are especially effective where door frames are lightweight or where conventional hinge mortising would compromise structural integrity.
When to choose a continuous hinge: Continuous hinges are better suited for high-cycle environments where long-term durability and reduced maintenance are top priorities. They outperform standard butt hinges in applications exceeding 1,000,000 cycles.
What it is: A concealed hinge is fully hidden when the door is closed, with no visible barrel or pin on the door face. The mechanism is mortised inside the door and frame.
Core features:
Clean, hardware-free appearance when door is shut
Available in adjustable models for precise door alignment
Suitable for wood, aluminum, and steel doors
Higher cost and more complex installation than surface-mounted types
Limited availability in UL-listed fire-rated configurations — verify compliance before specifying
Best suited for: Prestige commercial environments where aesthetics are critical — luxury hotels, executive offices, high-end retail interiors, and architectural feature doors. Concealed hinges are also used in healthcare settings where ligature-resistant hardware is required.
When to choose a concealed hinge: Concealed hinges are better suited for projects where visual design standards prohibit exposed hardware, or where tamper resistance and ligature-resistant compliance are specified.
Selecting the correct commercial door hinge requires evaluating five decision factors before specifying a product.
Up to 200 lbs: Standard butt hinge (3 per door)
200–400 lbs: Heavy-duty butt hinge or offset pivot
400 lbs+: Pivot hinge system with intermediate pivot support
Doors up to 90": Three butt hinges or a continuous hinge
Doors 90"–120": Add a fourth butt hinge or specify a heavy-duty intermediate pivot
Doors above 120": Pivot hinge system recommended
Low traffic (< 250,000 cycles): Standard butt hinge
Medium traffic (250,000–500,000 cycles): Heavy-duty butt hinge
High traffic (500,000–1,000,000+ cycles): Continuous hinge or heavy-duty pivot
Doors in fire-rated assemblies require UL-listed hinges that have been tested in accordance with UL 10C and ANSI/BHMA A156.1 standards. For hinges for fire-rated doors, butt hinges with a UL listing are the most broadly compliant option. Verify that hinge, door, frame, and closer form a complete listed assembly — individual component listings alone do not guarantee assembly compliance.
Standard appearance: Butt hinge
Architectural / clean reveal: Pivot hinge
Fully hidden hardware: Concealed hinge
Hinge Type | Key Model | Max Load | Fire-Rated Option | Best Application |
|---|---|---|---|---|
UL Butt Hinge | Heavy duty | Yes (UL-listed) | Fire-rated doors, offices, schools | |
Pivot / Offset Pivot | Very heavy | Verify per model | Hotels, hospitals, monumental entries | |
Intermediate Pivot | Heavy duty | Verify per model | Tall doors, oversized commercial panels | |
Electrified Pivot | Heavy duty | Verify per model | Access-controlled doors, smart buildings |
High daily cycle counts and frequent physical contact make continuous hinges or heavy-duty UL butt hinges the standard recommendation. Fire-rated corridor doors require UL-listed butt hinges as part of a complete listed assembly.
Wide, heavy ward doors benefit from pivot hinges that support large panel weights without straining the frame. In psychiatric or secure units, ligature-resistant concealed hinges may be specified. Fire-rated door assemblies throughout clinical corridors require UL-listed hinges.
Guest room doors typically use heavy-duty butt hinges with a decorative finish. Lobby feature doors and monumental entries are well served by offset pivot hinges. High-end suites may specify concealed hinges for a premium aesthetic.
Standard office doors use three butt hinges per leaf. Fire stairs and corridor fire doors require UL-listed butt hinges. Executive suites or boardrooms may use concealed hinges for a refined appearance.
Heavy steel doors, cold storage access panels, and loading dock entries benefit from heavy-duty butt hinges or pivot systems rated for substantial door weight. Stainless steel options resist corrosion in wet or chemical-exposure environments.
Q: What type of hinge is required for fire-rated commercial doors?
A: Fire-rated commercial doors require UL-listed hinges tested as part of a complete door assembly in accordance with UL 10C or the applicable local fire code. Butt hinges with a UL listing are the most common and widely accepted choice for hinges on fire-rated doors. Always verify that the hinge, door, frame, and hardware are part of the same listed assembly.
Q: How many hinges does a commercial door need?
A: The standard rule is 1.5 hinges per 30 inches of door height, with a minimum of three hinges per door leaf. Doors taller than 90 inches typically require a fourth hinge. Very heavy or oversized doors may need additional intermediate pivot support.
Q: Can I use a residential hinge on a commercial door?
A: Residential hinges are not rated for the cycle counts, load tolerances, or fire-rating requirements of commercial applications. Commercial doors require hinges that meet ANSI/BHMA A156.1 standards and, where fire protection is required, carry a UL listing. Using an unrated hinge on a fire-rated door assembly can void the fire rating and violate local building codes.

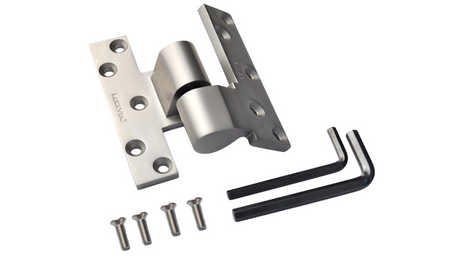

Q: What is the difference between an offset pivot hinge and a standard pivot hinge?
A: A standard pivot hinge aligns the pivot point at or near the door edge, while an offset pivot hinge positions the pivot point away from the edge — typically 3/4" to 3" — to allow the door to clear surrounding trim or casing and provide a wider effective clear opening. Offset pivot hinges are commonly used on heavy architectural doors in hotel lobbies and monumental entries.
Q: Are electrified pivot hinges compatible with access control systems?
A: Yes. Electrified pivot hinges — such as the Keyman Heavy Duty Electrified Middle Pivot Hinge — route low-voltage power through the pivot body to support electric locks, electromagnetic locks, or door position sensors without exposed wiring. Confirm voltage and amperage compatibility with your access control system before specifying.
