TL;DR:
BS EN 1303 is the European standard that classifies lock cylinders across six security grades—covering durability, corrosion resistance, key security, and attack resistance. Choosing the right EN 1303 cylinder grade for a commercial door depends on the threat level, door type, and whether the cylinder includes anti-snap, anti-pick, anti-drill, and anti-bump protections.
Commercial door security starts with the cylinder. Yet most building owners focus on deadbolts, hinges, and access control panels—while the cylinder itself, the component that every intruder targets first, gets selected almost as an afterthought.
That gap in attention is expensive. According to UK police data, cylinder snapping is one of the most common forced-entry techniques used in burglaries, particularly on commercial premises fitted with low-grade euro profile cylinders. The cylinder is not just a housing for the key mechanism. It is the primary line of defense against manipulation, drilling, snapping, and brute-force attacks.
BS EN 1303 is the European standard designed to close that gap. Published by the European Committee for Standardization (CEN), EN 1303 defines a rigorous classification system for lock cylinders—one that covers everything from key strength to corrosion resistance to resistance against picking. Understanding this standard helps facility managers, architects, and procurement teams select cylinders that match the real-world threat environment of their buildings.
This guide breaks down the EN 1303 standard in full: what tests it covers, how the six security grades differ, what anti-snap and anti-pick technologies actually do, how euro profile cylinders compare to American-standard cylinders, and how to match the right EN 1303 cylinder to a commercial door application.
Table of Contents
BS EN 1303 (formally titled Building hardware — Cylinders for locks — Requirements and test methods) evaluates lock cylinders against a comprehensive battery of mechanical and security tests. Certification requires independent laboratory testing—manufacturers cannot self-certify.
The standard covers eight primary test categories:
Durability: Cylinders must withstand a minimum number of key insertion and rotation cycles without mechanical failure. Higher grades require more cycles. Grade 6 cylinders, for example, must endure significantly more operational cycles than Grade 1 equivalents.
Corrosion resistance: The cylinder body and components are subjected to salt spray testing. This is particularly relevant for exterior doors exposed to coastal or industrial environments.
Key strength: Keys are tested under bending and torsion loads. This prevents cheap, thin keys from shearing inside the cylinder during normal use or forced entry attempts.
Key security (key differ): This measures the number of unique key combinations available, reducing the probability that a duplicate key from a different key series can operate the cylinder.
Anti-pick resistance: The cylinder is tested against manipulation using picking tools. Higher-grade cylinders incorporate security pins, spool pins, or serrated drivers that resist single-pin picking and raking.
Anti-drill resistance: Hardened steel inserts or anti-drill pins are tested against sustained drilling attacks targeting the shear line and cam mechanism.
Anti-manipulation / anti-bump: Some grade classifications include resistance to bump key attacks, where a specially cut key is struck to momentarily displace driver pins above the shear line.
Anti-extraction: The standard also tests resistance to cylinder pull attacks, where pliers or a slide hammer are used to extract the cylinder from the door.
Each of these categories is scored independently, and the overall grade assigned to the cylinder reflects performance across the full test matrix.
EN 1303 classifies cylinders across six grades. Grade 1 represents basic performance; Grade 6 represents the highest level of tested security. Here is what each grade means in practical terms:
Grade | Security Level | Typical Application |
|---|---|---|
1 | Minimal | Internal doors, low-risk areas |
2 | Low | Residential interior doors, storage rooms |
3 | Standard | Residential exterior doors, light commercial |
4 | Enhanced | Commercial premises, office buildings |
5 | High | High-value commercial, government facilities |
6 | Maximum | Critical infrastructure, secure installations |
Most commercial doors in Europe are specified at Grade 3 to Grade 5. Grade 6 cylinders are typically reserved for security-critical environments—data centers, pharmaceutical storage, government buildings, and financial institutions.
It is worth noting that the grade system is cumulative. A Grade 4 cylinder must pass all Grade 3 requirements before being evaluated against Grade 4 criteria. This cascading structure means each step up represents a meaningful increase in tested resistance, not just a marketing designation.
Additionally, EN 1303 appends letter suffixes to the grade number to indicate additional characteristics:
A = key retaining (key cannot be removed unless deadbolt is engaged)
B = emergency egress (exterior key overrides interior thumb turn)
C = anti-extraction tested
A full EN 1303 classification might read: Grade 4 A B, meaning the cylinder achieves Grade 4 security with key retention and emergency egress functionality.
Anti-snap cylinders are specifically designed to counter one of the most common forced-entry techniques in Europe—cylinder snapping. In a snap attack, an intruder applies lateral force to the exposed portion of a euro profile cylinder (the section protruding beyond the door face), causing it to fracture at a stress point. Once the outer section snaps off, the attacker uses a screwdriver to turn the remaining cam mechanism and retract the latch.
Anti-snap cylinders counter this by incorporating a sacrificial snap point engineered into the cylinder body at a position that protects the internal cam mechanism. When the cylinder snaps under force, it breaks at a point that leaves the cam and internal locking mechanism intact and inoperable. Many high-security anti-snap cylinders also include reinforced steel sections and anti-extraction collars that resist the initial snapping force entirely.
Standard pin tumbler cylinders use spring-loaded driver pins above a shear line. A pick tool can individually lift each driver pin to the shear line, eventually aligning all pins and allowing the cylinder to rotate.
Anti-pick cylinders disrupt this process using several mechanisms:
Spool pins: Shaped like a bobbin, spool pins create a false shear line. When a pick lifts a spool pin to the apparent shear line, the narrowed center section causes the cylinder plug to rotate slightly—which the picker perceives as a set pin—but the spool's lip catches on the edge of the housing, preventing full rotation until all pins are correctly positioned. This makes single-pin picking far more difficult.
Serrated pins: Multiple notches on each driver pin create several false shear lines, requiring the picker to identify and clear each notch before the pin is correctly set.
Sidebar mechanisms: High-security cylinders add a sidebar that must be aligned in addition to the main pin stack, requiring a second set of warding to be satisfied simultaneously.
Drilling attacks target the shear line directly, using a drill bit to destroy the driver pins and allow free rotation of the plug.
Anti-drill cylinders incorporate hardened steel pins or anti-drill plates positioned in the cylinder body at the shear line. Drill bits deflect or shatter when they contact these inserts rather than cutting through them. The hardened anti-drill plates are typically made from case-hardened steel or tungsten carbide compounds, achieving hardness levels that exceed the capability of standard drill bits.
Bump keys are commercially available (or easily filed) keys cut to the maximum depth on every cut position. When inserted one step from full engagement and struck sharply, the kinetic energy momentarily bounces all driver pins above the shear line simultaneously—allowing the plug to rotate briefly.
Anti-bump cylinders use spool pins, serrated pins, or spring tension adjustments that absorb the kinetic shock without allowing simultaneous pin displacement. Some designs use magnetic or electronic components that physically cannot be affected by a mechanical bump attack.
The euro profile cylinder (also called a DIN cylinder or euro cylinder) and the American-standard cylinder represent fundamentally different design philosophies—not just different shapes.
Physical format:
The euro profile cylinder uses a standardized oval cross-section defined by DIN 18252. It is measured by the total length from each end to the cam center—for example, a 30/30 cylinder is 30mm on each side. Euro cylinders fit into a mortise lock body via a single central screw and a cam that rotates to actuate the latch and deadbolt.
American cylinders—typically the ANSI-standard mortise cylinder or the cylindrical (bored) lock format—use a round cross-section with a threaded nose. They screw directly into the lock body and actuate a separate tailpiece. ANSI Grade 1 is the highest classification under the American standard, defined by BHMA (Builders Hardware Manufacturers Association) tests for operational and security performance.
Security concept:
EN 1303 euro profile cylinders achieve high security primarily through the cylinder body itself—the anti-snap zones, hardened anti-drill inserts, and security pin stacks are all contained within the cylinder. The mortise lock body plays a secondary security role.
American ANSI-standard locks distribute security differently. The lock body (mortise lock or cylindrical lock) often carries more of the security load, with the cylinder contributing key control and pick resistance. This is partly why American commercial doors rarely face snap attacks—the cylinder geometry and lock body design make traditional euro-style snapping impractical.
Installation and interchangeability:
Euro profile cylinders are highly interchangeable. A 30/30 EN 1303 Grade 4 cylinder from one manufacturer will generally fit the same mortise lock body as a Grade 3 cylinder from another—provided the overall length matches. This makes upgrading security straightforward without replacing the entire lock set.
American cylindrical locks require replacing the full lock set to change the cylinder format. Mortise lock cylinders offer more flexibility but still require matching the specific tailpiece length and thread pitch of the lock body.
Market geography:
Euro profile cylinders dominate commercial door hardware across the UK, Europe, Australia, and much of the Middle East. American standard cylinders dominate North America. For international projects—hotels, corporate campuses, manufacturing facilities—specifying the correct standard for the market is critical, since lock bodies, strike plates, and door preparations differ between the two systems.
Selecting the correct EN 1303 cylinder requires matching the grade to the risk profile of the door, not simply choosing the highest available grade for every application.
Step 1: Define the risk category of the door
Not all commercial doors carry the same risk. A stairwell door in a low-traffic office building has a very different threat profile than the entrance to a server room or pharmacy storage area. Risk factors include:
Value of assets behind the door
Frequency of access (high-traffic doors wear cylinders faster)
External vs. internal location
Whether the door is accessible from a public street or a secured perimeter
Step 2: Match EN 1303 grade to risk level
Grade 3: Suitable for general commercial premises, office buildings, and retail spaces where basic security against opportunistic attacks is required.
Grade 4: Appropriate for commercial entrances with higher traffic, light industrial facilities, and buildings requiring enhanced resistance to picking and manipulation.
Grade 5: Recommended for high-value commercial environments, including warehouses, logistics centers, and any door where an extended attack would go unobserved.
Grade 6: Specify for critical infrastructure, government-secured areas, and installations where cylinder compromise would have severe consequences.
Step 3: Evaluate anti-snap requirements
For any external door fitted with a euro profile mortise lock, anti-snap protection is not optional—it is baseline practice. Specify cylinders that include a sacrificial snap point protecting the cam mechanism. Look for cylinders that advertise compliance with the TS007 3-star rating (a UK standard that specifically addresses snap resistance) in addition to EN 1303 grade compliance.
Step 4: Consider key control requirements
High-security commercial environments benefit from cylinders with restricted keyways—patented key profiles that cannot be duplicated without authorization from the manufacturer. This is sometimes classified separately under EN 1303's key security criteria and is an important layer of protection for master-key systems.
Step 5: Verify third-party certification
A manufacturer's claim of EN 1303 compliance is not equivalent to third-party certified compliance. Specify cylinders with documentation from an accredited testing laboratory. In the UK, Secured by Design (SBD) approval provides an independent verification layer for residential and commercial cylinders.

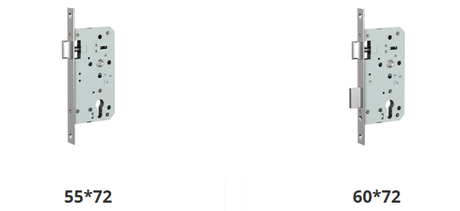

Keyman Lock's euro profile mortise lock range offers EN 12209 Grade 3 certification across multiple backset configurations (55×72, 60×72, and 65×72), with electrified solenoid versions available for access-controlled applications. Their product range is designed to work with standard EN 1303 euro cylinders, making grade upgrades straightforward for facilities managers sourcing commercial door hardware for European-standard installations.
The EN 1303 standard removes guesswork from cylinder selection. Each grade reflects independently tested, measurable performance—not marketing language. For commercial door applications, the minimum practical specification is Grade 3 with anti-snap and anti-pick protection for any external door. Higher-value or higher-risk environments should step up to Grade 4 or Grade 5, with anti-drill and anti-bump protections as standard requirements.
The cylinder is the smallest component on a commercial door. It is also the component most often compromised in a forced-entry event. Getting the specification right at the design stage costs far less than replacing a damaged door, lock body, and frame after an incident.
For facilities managers and architects specifying commercial door hardware for European-standard projects, reviewing Keyman Lock's EN Grade 3 euro profile mortise lock range is a practical starting point for understanding how cylinder-to-lock compatibility works in practice.
BS EN 1303 is the British and European standard for lock cylinders. It defines test methods and performance grades covering durability, corrosion resistance, key strength, key security, anti-pick, anti-drill, and anti-extraction resistance. Cylinders are classified into six grades, with Grade 1 being basic and Grade 6 being the highest security level.
Grade 3 cylinders meet baseline residential and light commercial security requirements. Grade 5 cylinders must pass significantly more stringent tests for attack resistance—including higher pick resistance, greater key differ values, and enhanced anti-drill performance. Grade 5 is recommended for commercial premises where the door is accessible from a public area and protects high-value assets.
Not necessarily. Anti-snap is a specific feature that prevents the euro profile cylinder from being fractured and manipulated during a snap attack. A high-security EN 1303 cylinder typically includes anti-snap as one of several features—alongside anti-pick, anti-drill, and anti-bump protection. Always verify which specific features a cylinder includes, rather than relying on a single descriptor.
No. Euro profile cylinders and ANSI-standard cylinders are physically incompatible. Euro cylinders use an oval DIN profile and a central cam; ANSI cylinders use a threaded round nose and a tailpiece. Replacing one with the other requires a different lock body designed for the respective cylinder format.
Request the test certificate from an accredited third-party laboratory. In the UK, look for Secured by Design (SBD) approved products or certificates from UKAS-accredited testing bodies. Manufacturer claims without third-party documentation should not be accepted as evidence of EN 1303 compliance.
The most common backset configurations for euro profile mortise locks are 55×72mm, 60×72mm, and 65×72mm, referring to the distance from the door edge to the cylinder center and the center-to-center distance between handle spindle and cylinder. Measure the existing lock body or door preparation before ordering replacement cylinders to ensure compatibility.
