When it comes to commercial and residential security hardware, understanding the complexities of mortise locks is crucial. Among the many considerations, the backset and dimensional requirements of a mortise lock play a vital role in ensuring proper installation, functionality, and compliance with industry standards. For those seeking clarity, this guide unpacks mortise lock backset and dimensions according to ANSI (American National Standards Institute) standards, offering valuable insights into how to choose the right hardware.
If you're a building professional, locksmith, or someone managing door hardware specifications, this post will help you comprehend ANSI mortise lock standards to ensure proper installation and enhanced security.

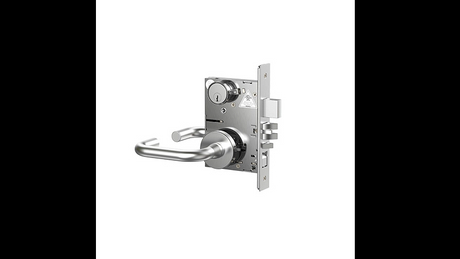

Before we get into the technicalities, let's take a moment to define what a mortise lock is. A mortise lock is a type of lock designed to be installed into a rectangular pocket, the "mortise," carved into the edge of a door. This lock assembly combines aesthetics and robust security, making it an excellent choice for commercial spaces, homes, and institutional settings.
Mortise locks are typically more complex than cylindrical locks and are often used for heavy-duty or high-traffic applications. They feature a trim (usually a thumb-turn), a lock body contained within the mortise pocket, and strike plates. However, to ensure optimal operation, the backset and dimensions must align with strict standards, specifically those set by ANSI.
The term "backset" refers to the horizontal measurement from the edge of the door to the centerline of the lock or latch bore. It essentially determines how far the lock mechanism sits from the edge of the door.
The correct backset ensures not only proper alignment of the lock but also functionality and user comfort when using the handle or lock. If the backset is incorrect, installation might compromise the security or usability of the door.
ANSI standards categorize common backset measurements for mortise locks into two sizes for doors in the US market:
● 2 ¾ inches (commonly used for commercial applications)
● 2 ½ inches (often preferred for residential settings)
Selecting the right backset depends largely on the type of door and its functional requirements. For instance, commercial settings like hospitals or offices usually opt for mortise locks with larger backsets for automated or thicker doors.
ANSI standards are essential for ensuring uniformity and interoperability across door hardware manufacturers. These standards establish the critical measurements and performance parameters for mortise locks, ensuring long-term reliability and security. Here’s a breakdown of the key dimensions and guidelines based on ANSI regulations.
The lock case houses the mechanism of the mortise lock. According to ANSI standards, manufacturers typically offer standard case sizes to fit various door frame types. The average dimensions include a length of 6 inches and a width of 4 inches, although the specifications may vary slightly between manufacturers.
ANSI mortise locks are designed to accommodate doors with a minimum thickness of 1 ¾ inches, a common standard for commercial and heavy-duty doors. However, thicker doors (e.g., 2 inches and above) require lock bodies and hardware specifically designed for their size.
The faceplate is mounted to the edge of the door. ANSI standards for faceplates typically range from 8 inches to 10 inches in height, with a width of approximately 1 ¼ inches. This dimension ensures that the strike plate aligns correctly while providing adequate stability for the door's locking mechanism.
Handing refers to the orientation of the door (left or right swing). ANSI-compliant mortise locks can come in reversible designs, making them adaptable for left-handed or right-handed doors. However, specifying the correct handing during installation minimizes errors and ensures a seamless fit.
Strike plates, which mount on the door frame, help secure the latch or deadbolt. ANSI standards dictate that strike plates are typically 1 ¼ inches to 1 ¾ inches wide and 4 inches tall. It’s crucial to ensure the strike plate size aligns with the door thickness and mortise cutout.
Selecting the correct backset and dimensions for your mortise lock requires careful consideration of several factors:
1.Door Type: Is it a residential or commercial door? What’s the material (wood, steel, fiberglass)?
2.Traffic Levels: High-traffic doors may require locks with larger backsets for durability and functionality.
3.Door Frame Design: Ensure the dimensions of the faceplate and strike perfectly align with the door and frame.
4.Compliant Standards: Always check that the mortise lock meets ANSI requirements for consistency and safety.
5.Manufacturer Specifications: Follow the manufacturer’s guidelines on compatibility to avoid installation or operational issues.
ANSI compliance isn’t just about consistency across manufacturers; it brings several additional benefits to the table, especially for enterprises and architects tasked with large-scale building projects.
ANSI-compliant mortise locks allow for easier replacement or upgrades since the dimensions and backset measurements are universally accepted across manufacturers.
By adhering to ANSI standards, mortise locks undergo rigorous testing to ensure better durability and resistance to tampering, prying, or forced entry.
Uniform dimensions simplify the installation process, whether it’s a retrofitting project or new construction.
Mortise locks are a staple in office buildings, hospitals, schools, and hotels due to their robust performance and ability to handle high traffic.
For homes emphasizing aesthetics and security, ANSI-compliant mortise locks provide durability and customization options, such as trim styles and finishes.
Institutions often adhere strictly to building codes, making ANSI-compliant locks an obvious choice for standardized safety and functionality.
Building or renovating a space requires an intricate understanding of hardware options, particularly door security systems. When specifying a mortise lock for your next project:
● Determine the appropriate backset for the door type and application.
● Confirm that all dimensions comply with ANSI 156.13 standards.
● Consider using ANSI-compliant locks to streamline installation and enhance safety.
For those managing larger-scale projects, collaborating with lock manufacturers or consultants specializing in ANSI mortise locks ensures consistent deliveries and impeccable installations.
