Quick answer:
To choose the correct school exit device, use rim panic bars for single doors due to their simple, surface-mounted design. For double doors, pair a rim device with a removable mullion or use a concealed vertical rod device. Always select UL fire-rated exit hardware for fire-marked doors to maintain building safety compliance.
Securing a school building requires facility managers to balance daily accessibility with strict emergency safety regulations. When an emergency occurs, students and staff must be able to leave the building immediately. A locked or jammed door can cause a localized issue to escalate rapidly.
Selecting the right hardware for these exits involves navigating complex building codes, such as the International Building Code (IBC) and the National Fire Protection Association (NFPA) 101 Life Safety Code. These codes mandate that educational facilities with an occupant load of 50 or more people must install panic hardware on primary exit doors.
However, not all doors are identical. Facility managers must choose different hardware configurations depending on the door type, the traffic volume, and the fire rating of the surrounding wall. This comprehensive guide explains the exact differences between various panic bars, helping you identify the most secure and compliant options for your specific building needs.
Table of Contents
The physical structure of a doorway directly dictates the type of hardware required. Single doors and double doors demand entirely different locking mechanisms to ensure the door remains secure from the outside while allowing single-action egress from the inside.
Standard single doors provide a straightforward hardware installation process. For these openings, a rim panic bar is the industry standard. A rim exit device mounts directly onto the interior surface of the door. The latch protrudes from the device and connects with a strike plate mounted on the door frame. Because the entire mechanism sits on the surface, rim devices are highly durable and easy for maintenance teams to inspect and repair.
School double doors consist of two separate door leaves sharing a single frame. Usually, one door acts as the "active" door, which people use for regular entry and exit. The second door acts as the "inactive" door, which remains stationary unless both doors need to open for large crowds or moving large equipment.
Securing double doors is more complicated because the active door needs something to latch onto. Facility managers have two main options here:
Vertical Rod Devices: Install a surface vertical rod (SVR) or concealed vertical rod (CVR) device on the inactive door. These devices shoot metal rods into the top frame and the bottom floor to keep the door secure.
Rim Devices with a Mullion: Install a removable metal post, called a mullion, in the center of the double doors. This allows you to install two standard rim devices that latch directly onto the center mullion.
Choose a rim device with a removable mullion if durability and easy maintenance matter more than aesthetic concealment. The center mullion provides a highly secure strike point for high traffic exit devices for schools.
When evaluating the best emergency exit device for a school, administrators often weigh the benefits of rim devices against concealed vertical rod (CVR) devices.
Rim devices sit entirely on the surface of the door. They contain fewer moving parts, which dramatically reduces the chance of mechanical failure. Because of this high reliability, the industry resource document "Exit Device Requirements" explicitly states that the exit device must generally be of the Rim type for educational facilities.
Concealed vertical rod devices hide the latching mechanism completely inside the hollow core of the door. While this looks visually appealing and prevents students from tampering with the rods, CVR devices introduce significant maintenance challenges. Over time, the internal rods can drop or fall out of alignment due to heavy impacts. If a bottom rod drops, the door will drag on the floor and fail to open properly.
Because of these safety risks, the "Exit Device Requirements" guideline states that the vertical rod type needs to be approved on a case-by-case basis for each specific project. Fire marshals and building inspectors want to ensure that the chosen hardware will not fail during a high-stress evacuation.
Building codes treat standard interior doors very differently than doors located in designated fire walls. Understanding this distinction is critical for passing safety inspections.
Non-fire-marked doors primarily serve to control traffic and provide basic security. Facility managers can equip these doors with standard panic hardware. Standard panic hardware allows for "mechanical dogging." Dogging involves using a special hex key to lock the crash bar in the depressed position. This retracts the latch permanently, allowing students to push the door open without engaging the hardware mechanism. Dogging extends the lifespan of the device by reducing wear and tear during busy school hours.
Fire-marked doors exist to stop the spread of smoke and flames. According to the IBC and NFPA 101, these doors must remain latched and closed during a fire. Therefore, fire-rated doors require "fire exit hardware" instead of standard panic hardware. Fire exit hardware strictly prohibits mechanical dogging. The door must positively latch every single time it closes. When selecting products like the Keyman Lock X8 Aluminum series, administrators must ensure the device carries the UL 10C and ULC-S104 Fire Rated 3 Hour certification for fire-marked doors.
Visualizing the hardware helps clarify the installation process. A standard installation diagram for school door structures outlines exactly how the hardware interacts with the frame.
For a single door installation diagram, the rim exit device mounts horizontally across the middle of the door panel, exactly between 34 inches and 48 inches above the finished floor. The strike bracket screws securely into the side door jamb.
For a double door installation diagram utilizing a mullion, a vertical steel post drops directly into the center of the door frame opening. Two separate rim devices mount horizontally on both the active and inactive doors. The latches of both devices click into the center mullion.

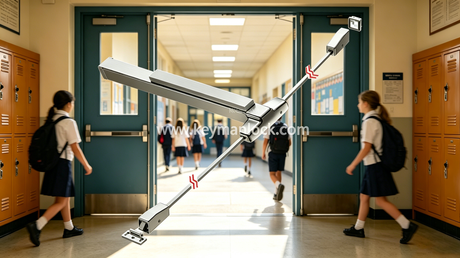

For a double door installation diagram utilizing vertical rods, no center mullion exists. The horizontal push pad sits in the middle of the door. Internal metal cables or rods run vertically up to the top frame header and down to the floor threshold.
A local K-12 school recently faced significant compliance issues during an annual fire inspection. The main cafeteria featured three sets of double doors equipped with outdated concealed vertical rod devices. Due to decades of heavy use by students, the internal bottom rods frequently dropped and dragged against the floor. This caused the doors to jam, violating the NFPA 101 single-action egress rule.
The school administration consulted with a commercial hardware specialist to select high traffic exit devices for schools. The specialist recommended removing the problematic CVR devices entirely. The school installed heavy-duty removable mullions in the center of each double door frame. They then mounted Keyman Lock UL Fire Rated Rim Exit Devices on every door leaf.
This renovation provided immediate benefits. The maintenance team no longer had to disassemble the doors to fix internal dropping rods. The students experienced smooth, immediate unlatching. The local fire marshal quickly approved the new installation, noting that the rim devices provided a much safer and more reliable egress route.
Ensuring your educational facility meets modern building codes requires regular audits of your existing door hardware. A locked or malfunctioning door presents an unacceptable risk to student safety.
Start by walking through your building and identifying any doors that currently use vertical rod hardware. Test these doors to ensure the rods do not drag on the floor. Next, check all fire-marked doors to guarantee the hardware does not feature mechanical dogging capabilities. For additional guidance on hardware selection, consult "A Guide to Panic Exit Devices for Enhanced Safety and Compliance," which details the specific operational uses of the Rim, Vertical Rod, and Mortise types of devices. Upgrade any non-compliant hardware to heavy-duty rim devices to secure your building effectively.
The best emergency exit device for a busy school is a heavy-duty, surface-mounted rim panic bar. Rim devices contain fewer moving internal parts than vertical rod devices, making them highly resistant to the daily physical impact of students pushing through the doors.
Yes, doors carrying a fire rating require certified fire exit hardware. Standard panic hardware allows administrators to lock the push bar in the open position, which violates fire codes. Fire exit hardware removes this feature to ensure the door always latches securely to block smoke and flames.
Concealed vertical rod devices cannot be used universally across all school projects. According to general exit device requirements, vertical rod hardware needs individual, case-by-case approval from building inspectors. These devices have a higher failure rate in high-traffic areas and can trap occupants if the bottom rod drops unexpectedly.
