Ensure your double-leaf doors close correctly with a reliable gravity door coordinator. Discover the features and benefits of this crucial fire safety device.
Fire safety relies heavily on the proper functioning of building hardware. When a fire alarm sounds, every second counts. Fire doors must close securely to compartmentalize smoke and flames, protecting the people inside and minimizing property damage. However, securing a wide hallway or entrance often requires double-leaf doors. These double doors present a unique challenge: they must close in a highly specific sequence to latch and seal correctly.
If the active door closes before the inactive door, the locking mechanism will fail. The doors will remain slightly ajar, rendering the fire seal useless. This is exactly where a gravity door coordinator becomes an indispensable piece of mechanical hardware.
By holding the active door open just long enough for the inactive door to shut first, this simple but effective device guarantees a perfect seal every single time. Reading this guide will help you understand the mechanics behind a door coordinator for double door setups, the exact specifications you should look for, and why high-quality materials matter for long-term building safety.
A fire door coordinator operates on a very straightforward mechanical principle. Installed on the frame above a double-leaf fireproof door, the device features an arm that drops down when the doors are opened. If the active door attempts to close first, it catches on this arm. The active door is held in place until the inactive door swings shut. As the inactive door closes, it triggers a release mechanism that allows the active door to finish its closing cycle.
This sequential closing is a strict requirement for commercial fire safety compliance. Without a fire door coordinator, changes in air pressure, slight drafts, or simple human error can easily disrupt the closing order. Fire inspectors routinely check these devices during building audits because a failed door sequence completely compromises the fire-rated barrier.

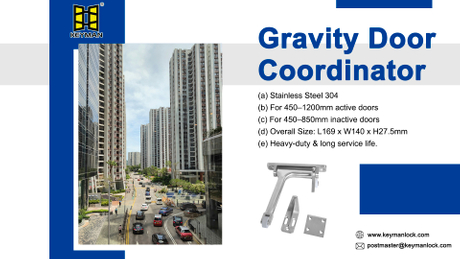

When selecting hardware for commercial or industrial environments, you need components built to withstand constant use. Keyman Lock, an ANSI and UL standard hardware manufacturer established in 1996, produces a gravity door coordinator designed for rigorous applications. Here is a breakdown of its primary specifications and benefits.
Material choice directly impacts the reliability of fire safety hardware. The Keyman Lock gravity door coordinator is manufactured using Stainless Steel 304. This specific grade of stainless steel provides exceptional resistance to corrosion, rust, and physical wear. Buildings located in humid environments or facilities that require frequent chemical cleaning benefit greatly from Stainless Steel 304. The material ensures the internal mechanics remain smooth and responsive over years of operation.
Commercial doorways come in many different sizes depending on the building's traffic requirements. Hardware must be adaptable. This specific coordinator accommodates a wide range of door widths, making it highly versatile for different installation environments.
Active doors: Designed to manage active doors ranging from 450mm to 1200mm in width.
Inactive doors: Perfectly suited for inactive doors ranging from 450mm to 850mm in width.
This flexibility allows facility managers and contractors to use a single, reliable hardware model across multiple entryways within a facility, simplifying maintenance and part replacement.
Aesthetic appeal and unobtrusive design matter in modern commercial architecture. You want safety hardware to blend seamlessly into the door frame without creating an eyesore or an obstruction. With an overall size of L169 x W140 x H27.5mm, this coordinator maintains a highly compact profile. The slim height of 27.5mm allows it to fit neatly at the top of the door frame, executing its vital function without interfering with the visual flow of the hallway.
Fire doors in busy hospitals, schools, and corporate offices can open and close hundreds of times a day. The constant mechanical stress will quickly degrade subpar hardware. Engineered for heavy-duty usage, this coordinator promises a long service life. The robust internal components are tested to withstand repetitive impact and friction. Investing in heavy-duty hardware upfront drastically reduces the need for expensive emergency maintenance or premature replacements down the line.
Building codes are written to prevent disaster. When a fire breaks out, the HVAC systems often shut down, and stairwell pressurization fans kick on. This sudden change in building pressure can cause free-swinging doors to behave unpredictably.
A standard door closer only controls the speed and force of a single door. It cannot communicate with the closer on the adjacent door. The gravity door coordinator acts as the mechanical brain bridging the two doors. It forces the physical environment to obey the necessary safety sequence. An overlapping astragal (the molding that seals the gap between double doors) requires the inactive leaf to sit flush before the active leaf locks into it. By ensuring this exact sequence, the coordinator seals off oxygen to the fire and blocks toxic smoke from filling escape routes.
In a double door setup, the active door is the one you typically open first. It houses the primary latch and lock mechanism. The inactive door usually remains stationary, secured by flush bolts at the top and bottom, and is only opened when a wider clearance is needed.
Yes. Gravity door coordinators can be retrofitted onto existing double-leaf fire doors. However, you must ensure that your door frame has adequate clearance for the device's dimensions (L169 x W140 x H27.5mm) and that the doors fall within the supported width ranges.
While designed for a long service life with heavy-duty materials, all mechanical fire safety hardware should be inspected annually. Checking the mounting screws, ensuring the drop arm moves freely, and clearing away any dust or debris will keep the device functioning perfectly.
Compromising on fire safety hardware is never an option. Double-leaf doors are magnificent architectural features, but they require the right mechanical accessories to function safely during an emergency. A high-quality gravity door coordinator ensures your doors close in the precise sequence needed to maintain a secure, fire-rated seal.
Constructed from robust Stainless Steel 304 and designed to accommodate a wide variety of door widths, the Keyman Lock coordinator delivers heavy-duty reliability you can trust. By choosing expertly engineered hardware, you protect your property, comply with strict building codes, and ensure the safety of everyone inside.
To explore this hardware and view a wide range of ANSI and UL standard locks, hinges, and exit devices, visit Keyman Lock today.
