Quick answer: Vertical rod exit devices are specialized panic door hardware featuring top and bottom latches for maximum security and seamless evacuation. They are the ideal choice for high-traffic commercial buildings that require reliable life-safety compliance, offering superior durability compared to standard single-point latching systems.
Securing a commercial building requires a careful balance between safety and accessibility. Facility managers must ensure that occupants can evacuate swiftly during an emergency, while simultaneously protecting the property from unauthorized entry during standard operations. This dual requirement makes the selection of door hardware a critical component of any building's infrastructure.
Among the various options available on the market, exit panic devices stand out as the primary solution for life-safety compliance. These mechanisms allow a door to open instantly when pressure is applied to a horizontal bar. They eliminate the need for turning a knob or using a key from the inside. When hundreds of people need to exit a building rapidly, reliable panic hardware prevents bottlenecks and saves lives.
However, not all commercial doors are the same, and standard rim exit devices do not always provide adequate security for double doors or specific architectural setups. This is exactly where vertical rods enter the conversation. By utilizing a two-point latching mechanism, vertical rod exit devices deliver enhanced structural integrity and meet the rigorous demands of modern commercial and institutional environments.
Commercial building codes mandate specific hardware for different types of exits. Understanding the distinct categories of exit panic devices helps facility managers make informed purchasing decisions.
Rim exit devices are the most common type of panic hardware. They mount directly to the surface of the door and feature a single latch that engages with a strike plate on the door frame. These units are highly effective for single doors but often fall short when installed on double doors without a center mullion.

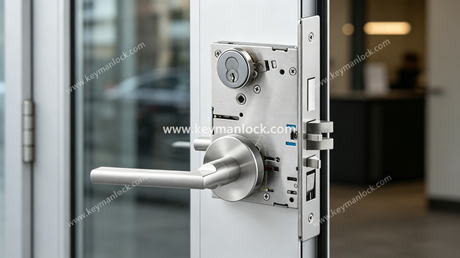

Mortise exit devices integrate the panic bar with a mortise lock body housed inside the door itself. This configuration offers exceptional security and durability. Keyman Lock provides mortise panic exit options, such as the X801-M, which are well-suited for heavy-duty applications.
Vertical rod exit devices represent a highly secure alternative for double doors. Instead of latching at the center frame, these devices use metal rods extending from the push pad to latches located at the top and bottom of the door. This design anchors the door securely to the floor and the upper frame.
Standard single-point latches concentrate all holding force in one location. If forced entry occurs, that single point bears the entire mechanical load. Vertical rod exit devices distribute this force across two separate anchoring points. The top latch secures the door to the upper frame, and the bottom latch anchors it into the floor strike.
This two-point locking mechanism significantly increases the door's resistance to forced entry, high wind pressures, and structural warping. For double doors lacking a center post, vertical rods offer the most reliable method for keeping both door leaves firmly closed. Furthermore, the Keyman Lock X801-V Surface Vertical Rod Panic Bar features smooth operation, meaning the extra security does not compromise the ease of emergency egress.
Facility managers must choose between surface-mounted and concealed configurations when installing vertical rods.
Choose surface vertical rod exit devices if ease of maintenance matters more than aesthetics. Because the rods attach directly to the interior face of the door, maintenance teams can easily access the components for adjustments and lubrication. Keyman Lock manufactures surface vertical models that feature smooth, reduced projections to minimize catch hazards.
Choose concealed vertical rod exit devices if architectural design and high-impact protection are your top priorities. Concealed vertical rods reside entirely inside the hollow metal or aluminum door channel. This internal placement protects the rods from tampering or accidental damage by heavy carts, making them an excellent choice for hospitals and schools. The Keyman Lock X801-C Concealed Vertical Rod Exit Device delivers this streamlined aesthetic without sacrificing life-safety performance.
When selecting exit panic devices, prioritizing tested and certified hardware is vital. The Keyman Lock X800 Series Panic Exit Device combines maximum safety with a sleek, durable design specifically engineered for high-traffic areas.
According to Keyman Lock's technical specifications, the X8 Aluminum Fire Rated Panic Exit Device meets rigorous UL and ANSI Grade 1 standards. ANSI Grade 1 certification indicates that the hardware has survived extensive cycle testing, proving its capability to withstand heavy daily usage in institutional settings.
The heavy-duty aluminum construction provides exceptional strength and high corrosion resistance. This makes the Keyman Lock X8 series highly resilient in various environmental conditions. Additionally, the push bar assembly utilizes a smooth and reduced projection design. This specific engineering choice minimizes catch hazards, ensuring that clothing or equipment does not snag on the panic bar during a rapid evacuation.
Upgrading your commercial door hardware is a direct investment in the safety of your building's occupants and the security of your assets. Relying on outdated or incorrectly specified hardware creates unnecessary liabilities. By integrating high-quality vertical rod exit devices, you establish a robust security perimeter that fully complies with emergency egress regulations.
Evaluate your current double doors and high-traffic exits to determine if they meet safety codes. If you identify vulnerabilities, consult with a certified door hardware specialist to assess your specific needs. Upgrading to a proven system like the Keyman Lock X8 Aluminum series ensures your facility operates safely and securely for years to come.
Vertical rod exit devices are specialized panic bars used primarily on double doors. They secure the door by latching at the top frame and the bottom floor, providing excellent stability and security without requiring a center mullion.
The cost of exit panic devices varies widely based on the grade, material, and latching mechanism. Standard rim devices may start around a few hundred dollars, while heavy-duty, ANSI Grade 1 vertical rod exit devices built from premium aluminum can range higher due to their superior fire-rating and durability.
Yes. The Keyman Lock X800 Series includes UL Fire Rated models. These specific models provide reliable life-safety and fire protection, maintaining the integrity of fire-rated door assemblies during an emergency.
Yes, surface vertical rods can easily retrofit onto existing doors since they mount directly to the door's interior face. Concealed vertical rods, however, are typically installed during the door manufacturing process and are much more difficult to retrofit into existing solid doors.
Only certified commercial locksmiths or specialized door hardware technicians should install panic exit devices. Proper installation is critical to ensure the hardware complies with local fire codes and functions correctly during an emergency evacuation.
