When it comes to ensuring safety, accessibility, and convenience in commercial spaces, no feature is as essential as the commercial door push bar. Used widely in office buildings, schools, hospitals, and other public spaces, push bars (or panic exit devices) are designed to allow swift and safe exits during emergencies. Not only are they a legal requirement for many facilities, but they also improve the overall functionality of your entrances and exits.
If you've been considering installing or upgrading commercial door push bars, this guide will walk you through their importance, the installation process, and what to consider when choosing the right one for your building.
The primary purpose of a push bar is safety. They are explicitly designed to:
● Enable the rapid evacuation of a building in an emergency, such as a fire or earthquake.
● Prevent crowding and bottleneck situations at exits during stressful moments.
● Minimize the effort required to open a door, ensuring accessibility for individuals of all physical abilities.
Additionally, push bars ensure compliance with safety codes. Many jurisdictions require commercial buildings to install panic devices as part of standardized fire and safety regulations. Without them, businesses could face hefty fines or restrictions.
Push bars come in various styles depending on your functional needs and the type of door:
1.Rim Exit Devices
Ideal for single doors, they are installed on the surface of the door and have a straightforward design.

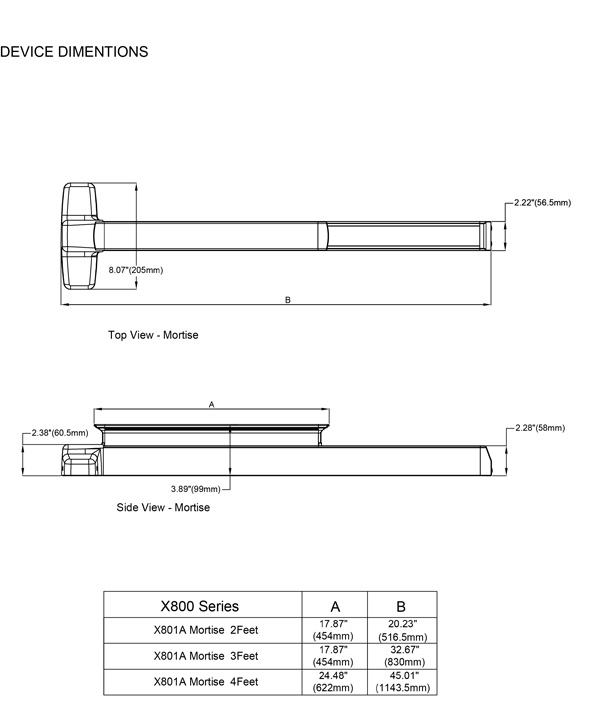

2.Mortise Exit Devices
These are built into the door, offering a more discrete option. They are common in higher-end facilities where aesthetics are vital.
3.Vertical Rod Exit Devices
Perfect for double doors without a center post, these have rods that extend vertically into the floor and ceiling to secure the door.
4.Concealed Vertical Rod Devices
Similar to vertical rod devices, but the mechanism is hidden for a cleaner appearance.
When choosing a push bar, consider the traffic level, door material, and aesthetic preferences for your building.
Now that we've covered what a push bar is and why they are important, let's move on to the installation process. This step requires careful planning to ensure the device meets safety standards and functions optimally. Below is a step-by-step guide.
Before starting installation, select the appropriate push bar for your door. Consider:
● Door width and weight
● Building occupancy level
● Fire code and safety regulations in your area
Many push bar manufacturers specify which types of doors (wood, metal, or glass) their devices are compatible with.
To install a push bar, you'll typically need:
● A drill with various bits
● Screwdriver
● Measuring tape
● Pencil or marker
● Installation template (usually provided by the push bar manufacturer)
Make sure to also have the instruction manual that comes with your push bar, as it includes specifics for placement.
Place the installation template on your door as per the manufacturer's guidelines. Most push bars are installed on the interior side of the door at a height of about 34–48 inches from the floor.
Using a pencil or marker, outline the holes where you’ll place screws, rods, or any other mounting components.
Using your drill, create the necessary holes for mounting the push bar and, if needed, the lock components. Be sure to follow the alignment outlined in your template to ensure proper functionality.
Position the push bar on the door and secure it in place with the screws provided, ensuring that it aligns perfectly with the latch mechanism. Check that the bar moves smoothly and unlatches the door without resistance.
Once the device is attached, test it multiple times to ensure it locks and unlocks smoothly. Ensure the door opens with minimal force when the push bar is engaged.
If needed, make adjustments to the latch alignment or screws. Tighten everything securely and check one last time for smooth operation.
Make sure the installation meets all local fire and safety codes. This step is essential for ensuring the safety of your building's occupants and avoiding potential penalties.
Pro Tip: If you're unsure about the installation process, it’s wise to hire a professional to ensure the device is installed correctly and complies with safety standards.
Installing push bars comes with several advantages beyond meeting legal requirements. Here are some key benefits:
1.Enhanced Safety
Push bars ensure that occupants can exit quickly and safely in emergencies, potentially saving lives.
2.Convenience
These devices require minimal effort to open, making them ideal for busy or crowded settings.
3.ADA Compliance
Push bars can enhance accessibility for individuals with disabilities, providing an inclusive environment.
4.Durability
Most push bars are constructed with high-quality materials like stainless steel, ensuring long-term use even in high-traffic areas.
5.Customizability
Available in multiple finishes, styles, and functions, push bars can be tailored to suit the aesthetic and operational needs of your building.
To keep your push bars functioning properly:
● Inspect them regularly for wear and tear.
● Test their functionality each month to ensure smooth operation.
● Clean and lubricate the moving parts annually to prevent jamming.
A well-maintained push bar not only lasts longer but also ensures the safety and accessibility of your building.
When it comes to selecting the perfect push bar, work with trusted manufacturers who offer high-quality products and warranties. Look for features like corrosion resistance, smooth mechanics, and compliance with ISO and fire safety standards.
If you’re in doubt, consulting a professional installer or supplier can help you make an informed decision based on your building’s specific requirements.
Failing to install properly functioning commercial door push bars can pose significant risks to human life during emergencies. Today’s customers and employees expect businesses to prioritize safety and accessibility as part of their responsibility. With the right push bar, you not only secure compliance but also foster trust and confidence within your space.
Looking to install a push bar in your building? Partner with a trusted expert in commercial safety systems to achieve seamless installation and peace of mind.
