| Door Size | ● Door Width: 3Ft (914mm)Door Height: 7Ft (2134mm) |
| Top Latch Bolt | ● Stainless Steel, Pullman type deadlocking Latch 5/8" (16mm) throw. |
| Bottom Bolt | ● Stainless Steel, Pullman type deadlocking Latch 5/8" (16mm) throw. |
| Top & Bottom Latch Case | ● 4-1/2" x 2-1/8" x 1-1/2" (112mm x 54mm x38mm). |
| Fasteners | ● Machine screws and Wood screws are for surface mounting. ● Sex Bolts for Through holes mounting. |
| Mortise Exit Device Backset | ● 2-3/4" (70mm) |
| Center Case Latch Bolt | ● Stainless Steel, deadlocking, 3/4" (19mm) throw |
| Handing | ● Device non-handed, Trim field reversible. |
| Trim | ● The device & trim are sold separately, easy to mix and match. |

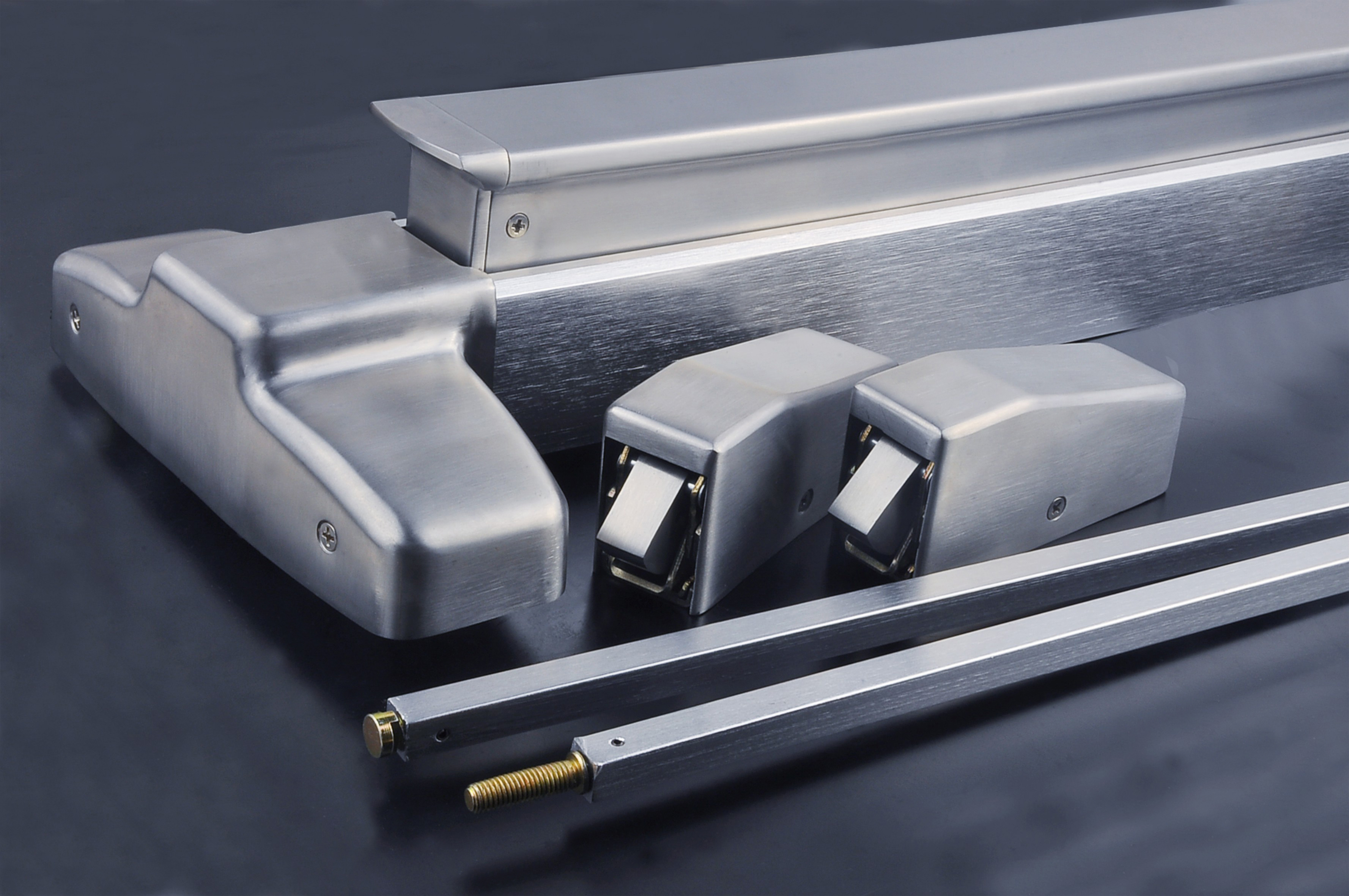

| Surface Mounting Vertical Rods | ● 1/2" Square tubing, Standard rods accommodate 7Ft (2134mm) door. ● Top rod length is 35" (890mm), Bottom rod length is 31-3/8" (795mm) standard. |

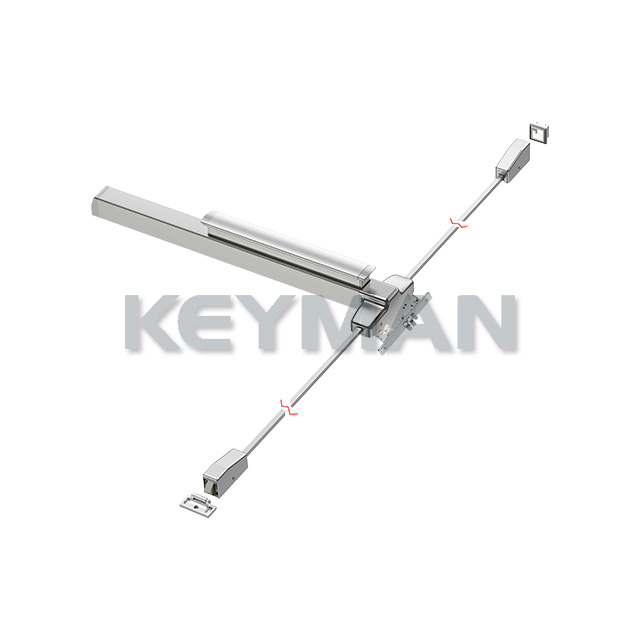

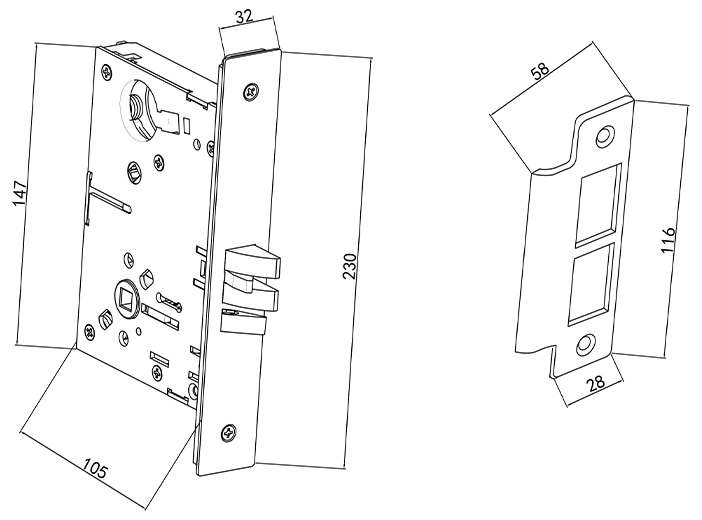

| Center Case | ● ANSI mortise F31 ● Depress exit device push pad and retract mortise latchbolt to open door. Auxiliary latch dead latch. Entry by outside trim retract mortise latchbolt. |
| Certification / Compliance | ● Panic devices ANSI/BHMA A156.3 Grade 1 ● ANSI/UL 305 and UL Listed for 3-Hour fire rating ● Exit devices, levers, trims and pulls comply with American Disability Act (ADA) |
