The Keyman X801-R Fire Rated Exit Device sets the industry benchmark with its exceptional 3-hour UL fire rating and ANSI Grade 1 certification. This rim function panic bar delivers maximum security and reliability for critical emergency exits, combining superior fire protection with robust mechanical performance.

Its UL 3-hour fire rating ensures unparalleled protection against fire and smoke spread, while the ANSI Grade 1 certification guarantees the highest level of durability and cycle life. The rim-mounted design simplifies installation without compromising on safety or performance, making it ideal for high-traffic commercial and institutional applications.

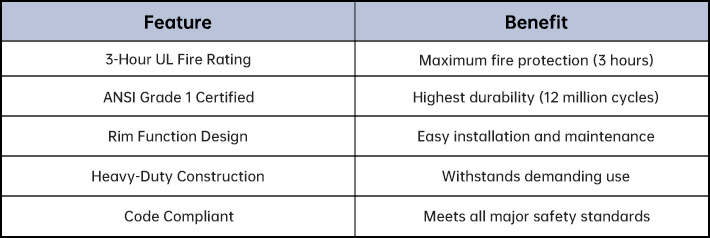

Key Features & Benefits

Keyman X800 wide stile exit device has an impressive lineup of certifications, which ensures compliance and a peace of mind for our customers.

It’s ETL UL 305 certified

Its ETL UL 10C and CAN/ULC-S104 listed for 3-hour fire doors. This attests to its safety in both single doors up to 4’ x 10’ and double doors with mullions up to 8' x 8' (single egress pair)

Its certified to meet ANSI/BHMA A156.3 Grade 1 standards 

It has a UL ratings—+60/-65 psf for 16ga Single and +50/-50 psf for 18ga Single. Which proves its structural integrity

The X800 exit device complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 regulations. This ensures accessibility and usability in diverse building environments

Product Category

All Products

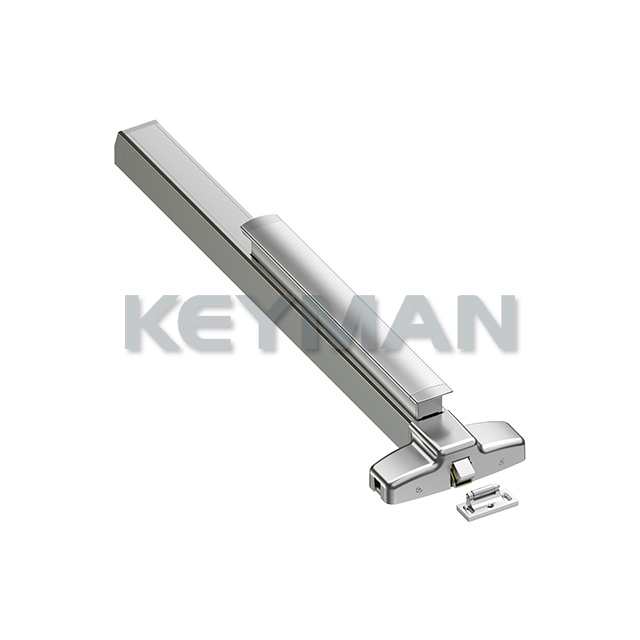

Keyman UL Fire Rated Rim Exit Device Panic Bar X801-R

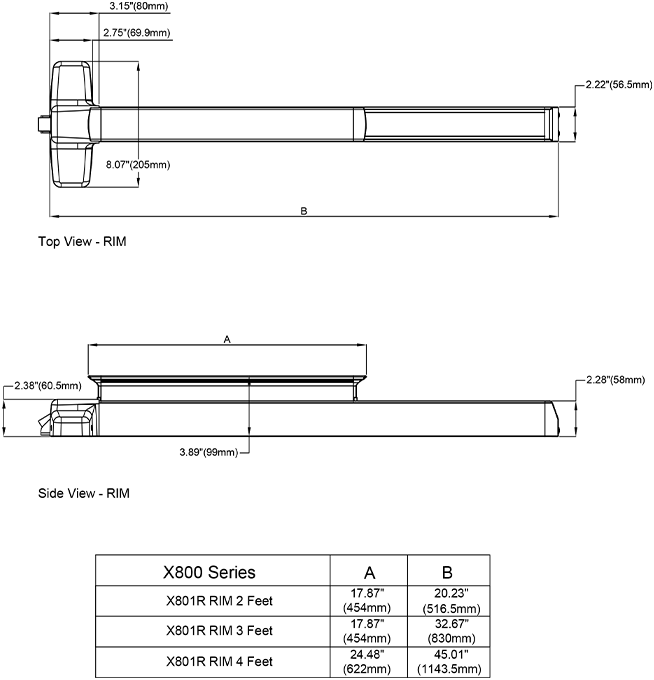

Specifications

Strikes	● Roller Strike
Fasteners	● Machine screws and Wood screws are for surface mounting. ● Sex Bolts for Through holes mounting.
Backset	● 2-7/16" (61.7mm)
Center Case Latch Bolt	● Stainless Steel, deadlocking, 3/4" (19mm) throw
Handing	● Device non-handed, Trim field reversible.
Trim	● The device & trim are sold separately, easy to mix and match.

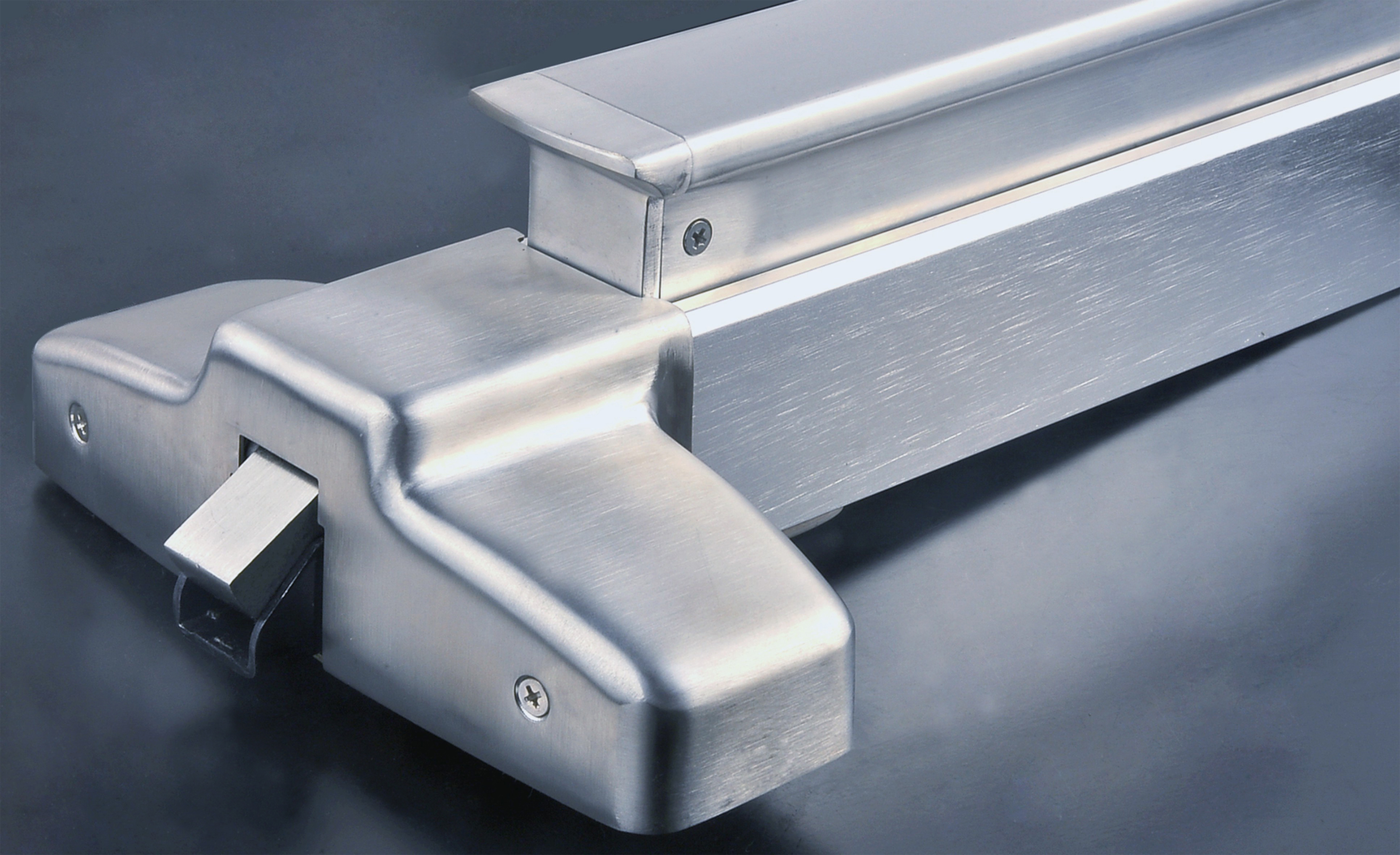

Center Case	● Universal center case, heavy wrought steel and sintered metal parts. ● Device functions are determined by adaptation with type of trim.
Certification / Compliance	● Panic devices ANSI/BHMA A156.3 Grade 1 ● ANSI/UL 305 and UL Listed for 3-Hour fire rating ● Exit devices, levers, trims and pulls comply with American Disability Act (ADA)
