 QK9001 |  QK9005 |  QK9008 |  QK9014 |  QKK34 |

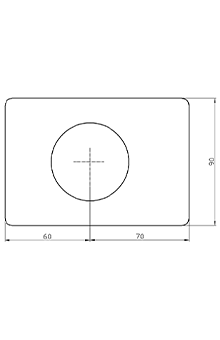

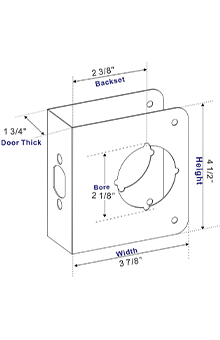

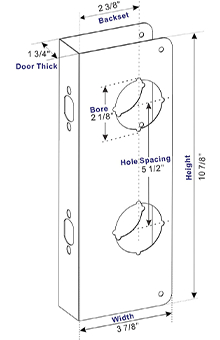

 QK9001 尺寸图 |  QK9005 尺寸图 | QK9008 尺寸图 |  QK9014 尺寸图 |

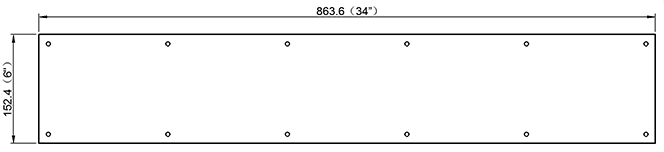

 QKK3406 脚踢板尺寸 | |||

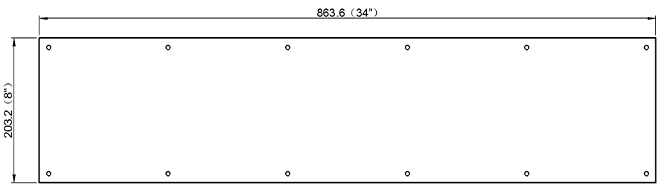

 QKK3408 脚踢板尺寸 | |||

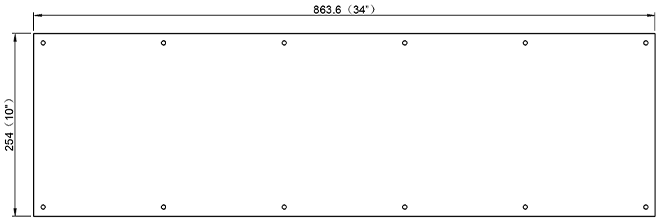

 QKK3410 脚踢板尺寸 | |||

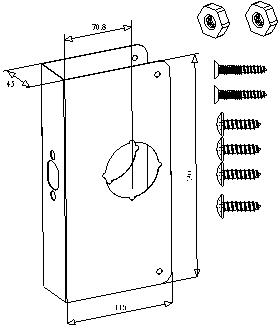

| 货号 | K9001 | 货号 | K9002 | 货号 | K9003 | 货号 | K9004 |
| 门厚 | 45mm 1-3/4" | 门厚 | 35mm 1-3/8" | 门厚 | 45mm 1-3/4" | 门厚 | 45mm 1-3/4" |
| 门边距 | 60mm 2-3/8" | 门边距 | 60mm 2-3/8" | 门边距 | 60mm 2-3/8" | 门边距 | 70mm 2-3/4" |
| 钻孔 | φ54mm 2-1/8" | 钻孔 | φ54mm 2-1/8" | 钻孔 | φ54mm 2-1/8" | 钻孔 | φ54mm 2-1/8" |
| 长度 | 276mm 10-7/8" | 长度 | 230mm 9" | 长度 | 230mm 9" | 长度 | 230mm 9" |
| 宽度 | 100mm 4" | 宽度 | 100mm 4" | 宽度 | 100mm 4" | 宽度 | 110mm 4-3/8" |
 |  |  |  | ||||

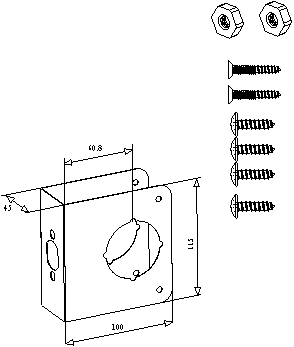

| 货号 | K9005 | 货号 | K9006 | 货号 | K9007 | 货号 | K9008 |
| 门厚 | 45mm 1-3/4" | 门厚 | 45mm 1-3/4" | 门厚 | 45mm 1-3/4" | 门厚 | 35mm 1-3/8" |
| 门边距 | 60mm 2-3/8" | 门边距 | 70mm 2-3/4" | 门边距 | 60mm 2-3/8" | 门边距 | 60mm 2-3/8" |
| 钻孔 | φ54mm 2-1/8" | 钻孔 | φ54mm 2-1/8" | 钻孔 | φ54mm 2-1/8" | 钻孔 | φ54mm 2-1/8" |
| 长度 | 115mm 4-1/2" | 长度 | 115mm 4-1/2" | 长度 | 230mm 9" | 长度 | 115mm 4-1/2" |
| 宽度 | 100mm 4" | 宽度 | 100mm 4" | 宽度 | 100mm 4" | 宽度 | 100mm 4" |
 |  |  |  | ||||
