Panic Mortise Type Exit Device X801-M

The Keyman X801-M Mortise Panic Exit Device intelligently combines an aluminum exterior with an internal stainless steel mechanism。upgrade your security with Keyman M700 mortise exit device. Featuring a strong ¾” throw latch bolt, this exit device is perfect for retrofits or new installations. You can pair this mortise exit device with any surface vertical rod, concealed vertical rod, flush bolts, or an open back strike to complete your security needs.

It achieves the rigorous UL and ANSI Grade 1 certifications, guaranteeing exceptional strength and reliability for high-use applications. The aluminum shell provides a lightweight, corrosion-resistant, and aesthetically pleasing finish, while the stainless steel internal components deliver unmatched strength and durability for the lock and trigger mechanism. This strategic material synergy ensures the device offers long-lasting, reliable performance in high-traffic environments. The mortise function allows for a sleek, integrated look, making the X801-M the superior choice for a discreet yet extremely robust panic exit solution that prioritizes both form and function.

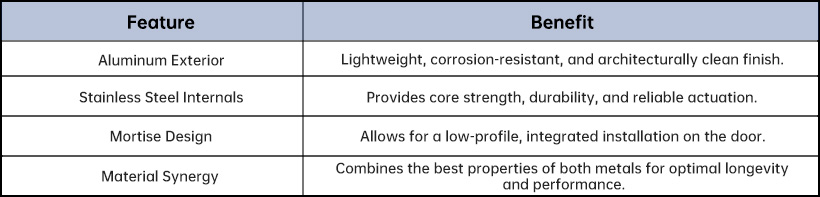

Key Advantages Summary

Product Category

Keyman UL/ANSI Fire Rated Panic Exit Device
- Aluminum Fire Rated Panic Exit Device

All Products

Keyman Heavy-Duty Aluminum Alloy Mortise Lock Exit Device – Secure & Durable X801-M

Inquire

More >>

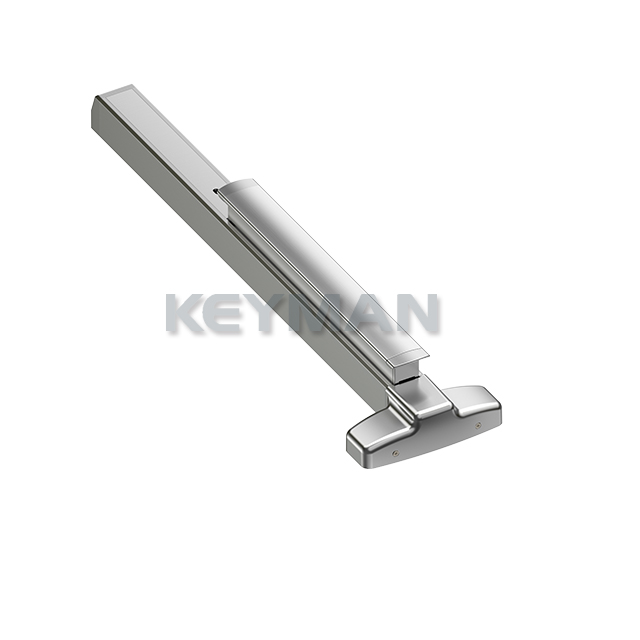

Keyman Mortise Panic Exit Device X801-M


Specifications

Door Size	● Door Width: 3Ft (914mm) ● Door Height: 7Ft (2134mm)
Fasteners	● Machine screws and Wood screws are for surface mounting. ● Sex Bolts for Through holes mounting.
Mortise Exit Device Backset	● 2-3/4" (70mm)
Center Case Latch Bolt	● Stainless Steel, deadlocking, 3/4" (19mm) throw
Handing	● 2-3/4" (70mm)
Trim	● The device & trim are sold separately, easy to mix and match.
Center Case	● ANSI mortise F31. Depress exit device push pad and retract mortise latchbolt to open door. Auxiliary latch dead latch. Entry by outside trim retract mortise latchbolt.
Certification / Compliance	● Panic devices ANSI/BHMA A156.3 Grade 1 ● ANSI/UL 305 and UL Listed for 3-Hour fire rating ● Exit devices, levers, trims and pulls comply with American Disability Act (ADA)
